CHASSIS PARTS CATALOGUE
Service Brakes-Continued

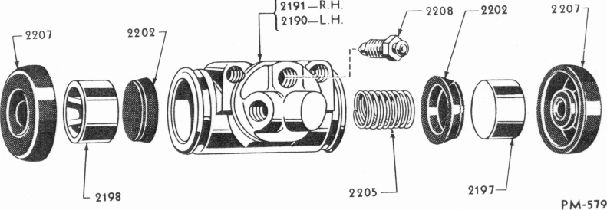

FRONT WHEEL BRAKE CYLINDER
Basic numbers only shown on illustration.
AD 2061-A
Cylinder assy (front wheel brake)-R. H. -1 1/8"dia.
Casting single faced at line opening
1
LA,
LE
52-55
AD 2062-A
Cylinder assy (front wheel brake)-L. H. -1-1/8" dia.
Casting single faced at line opening
20310-S8 Bolt (hex-hd)-5/16"-18 x 1/2"
1
4
LA,
LA,
LE
LE
52-55
52-55
I
34806-S7 Lockwasher-5/16"
4
LA,
LE
52-55
8M-2221 Kit (front wheel brake cyl. repair
-consists of the following
(2) 91A-2202 Cup (2) OM-2207-A Boot
2
LA,
LE
52-55
LA
2063-B
Reservoir assembly (power brake vacuum)
1
LA
53-54
LA 2063-C
Reservoir assembly (power brake vacuum)-when
LA-2063-C replaces LA-2063-B, LA-22907-B
tube & LA-22350 hose must be used
1
LA
53-54
LE
2063-A I
Reservoir assembly (power brake vacuum)
1
LE
55
40143-58 Screw (tapping)-5/16"-18 x
I
,
1/2"-tank to frame
4
LA,
LE
53-55
6H 2066
Cup (brake shoe hold down spring)-also serviced
in HCK-22009-B & C and HEK-22009-A Kits
1
6
LA,
LE
52-55
H
2068
Spring (brake shoe hold down)-23/32" 0. D. x
1-1/16" overall free length-also serviced in
HCK-22009-B & C and HEK-22009-A Kits
8
LA,
LE
52-55
8A 2069-A N
Pin (brake shoe hold down spring)-rear-serviced in
HCK-22009-B Kit
4
LA
52-53
8L
2069 N
Pin (brake shoe hold down spring)-rear-serviced
in HEK-22009-A Kit
4
LA,
LE
54-55
LA 2069-A N
Pin (brake shoe hold down spring)-front-serviced
in HCK-22009-C & HEK-22009-A Kits
4
LA,
LE
52-55
