PART NUMBER LA 2155 LA 2161 AB 2162 91A 216 8M 2167  91A 2167  AB 2169 51A 2173
CHASSIS PARTS CATALOGUE
Service Brakes-Continued

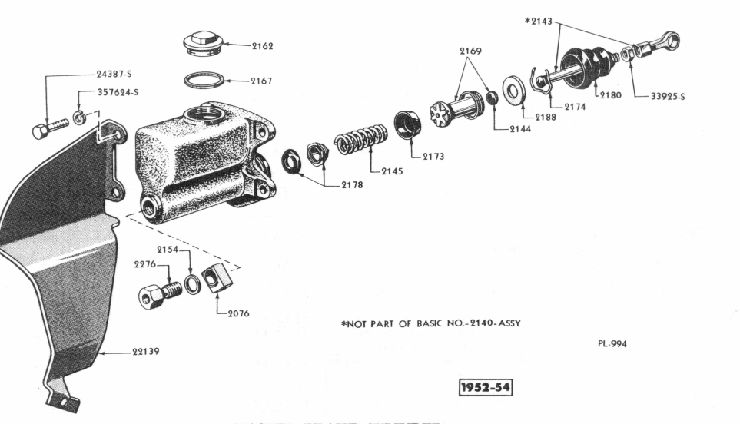

MASTER BRAKE CYLINDER
S
P A R T N A M E
REQ
,
MODEL
YEAR
-C
Body (brake master cylinder}
1
LA, LE
53-55
-A
Fitting {brake master cyl. outlet)-1 2"-tapped hole
1
LA, LE
53-55
-C
Cap assy (brake master cyl. filler)-with hex head-
1
LA
52-54
1-5/8"-18
2-A
Cap assy brake master  filler -with square head
I
LA, LE
53-55
Gasket {brake master cylinder filler cap)-Fibre-
1
LA
52-54
41/64" I. D. x 1-7/8" 0. D. x 1/16" thick-also
serviced in B2A _ 2004 - A Kit
Gasket (brake master cylinder filler cap) Fibre _
1
LA, LE
53-55
1-17/64" I. D. x 1-1/2" 0. D. -also serviced in
HDK-22160 B
-H N
Piston assy (brake master cylinder)-serviced in
1
LA
52 54
B2A-2004-A Kit
Cup (brake master cylinder}-primary -also
1
LA
52-54
serviced in B2A-2004-A Kit
