shown in list of parts. _ _ painted Black 8M 1180 Retainer (rear wheel bearing)-inner 2 LA, LE 52-55 8M 1190-A Retainer assembly (front wheel grease) 2 LA, LE 52-55
CHASSIS PARTS CATALOGUE
Wheels, Hubs and Drums

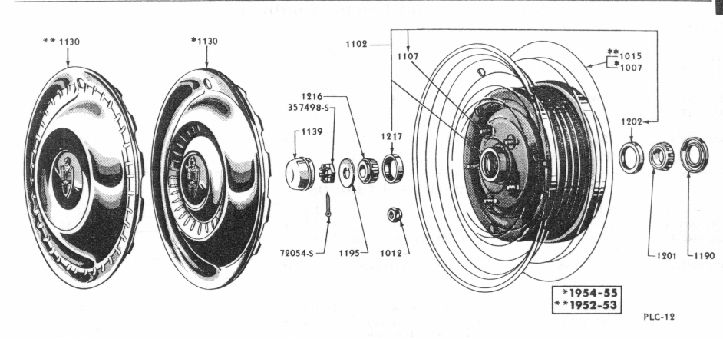

FRONT WHEEL HUB, BEARINGS, CAP, ETC.
Basic numbers only shown on illustration. Order by Part Numbers
PART
NUMBER
P A R T N A M E
REQ’D
MODEL
YEARS
LA
1007-CW
Wheel assembly (spider)-15" x 6"-in Prime
5
LA,
LE
54-55
B
1012
Nut (wheel bolt)-1/2"-20
20
LA,
LE
52-55
LA
1015-AP
Wheel assembly (disc)-15" x fi"-in Prime
5
LA
52-53
LA
1039-A
Clip (wheel stone deflector) -4-15/16" overall length
20
LA
52-53
LA
1039-B
'Clip (wheel stone deflector)-4-15/16" overall lengt
20
LA
53
LA
110A 2''
Hub and brake drum assembly (front)
2
LA
52-53
LA
1102-F
Hub and brake drum assembly (front)
2
LA,
LE
54-55
8A
1107-A
Bolt (wheel hub)-front wheels-1/2-20 x 1-3/8"
10
LA,
LE
52-55
LA
1107-A
'Bolt (wheel hub)-rear wheels-1/2"-20 x 1-19/64"
10
LA,
LE
52-55
LA
1126-A
Drum assembly (rear)
2
LA
52-53
LA
1126-D
Drum assembly (rear)
2
LA,
LE
54-55
356080-S32
Nut (spring)-1/2"-20-to attach
rear brake drum to rear axle
6
LA,
LE
52-55
LA
1130-B
Cap (wheel hub)-with embossed medallion
4
LA
52-53
LA
1130-D
Cap (wheel hub)-with deoressions around
medallion
4
LA.
LE
_
54-55
51A
1139
Cap (front hub grease)
2
LA,
LE
52-55
OM
1140
Spring (brake drum silencer)-32" overall length
4
LA
52-53
51A
1140
Spring (brake drum silencer)-34-1/2" overall length 4
LA,
LE
54-55
OM
1177-A
Seal assembly (wheel bearing inner oil)-1/2" thick
2
LA,
LE
52-55
