shown in list of parts. LA  (44) 351939-5 Rivet
Service Brakes-Continued

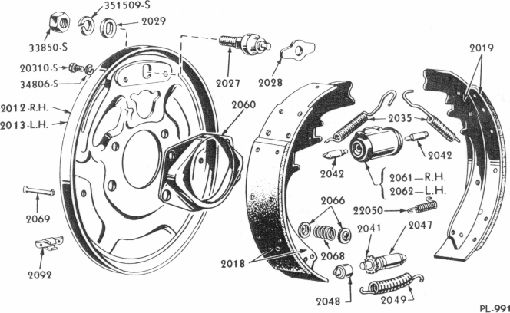

FRONT BRAKES
Basic numbers only shown on illustration.
Order by Part Numbers
PART
NUMBER
P A R T N A M ES
REQ’
D
MODEL
YEARS
B2A 2004-A
Kit (master brake cylinder repair)-consists of the
1
52-54
following
(1)91T-2154-A Gasket (1) SM-2167 Gasket
(1) AB-2169-B Piston (1} 51A-2173 Cup
(1) 51A-2174 Snap Ring (1) A9A-2178-A Valve &
Seat
(1) OA-2180 Boot
t LA 2005-B
Booster assembly (brake vacuum)
1
LA
53
t LA 2005-C
Booster assembly (brake vacuum)
1
LA
54
t LE 2005-A
Booster assembly (brake vacuum)
1
LE
55
HCK 2007-A
Kit (front brake lining)-Standard-Axle Set-consists
1
LA
52-53
of the following
(2) LA-2021-B Lining-front-primary
(2) LA-2022-B Lining-front-secondary
(44) 351939-5 Rivet
HCK 2007-B
Kit (front brake lining)-. X30 0/S-Axle Set-consists
1
LA
52-53
of the following
(2) LA-2021-C Lining-front-primary
(2) LA-2022-C Lining-front-secondary
(44) 351939-S Rivet
HEK 2007-A
Kit (front brake lining)-Standard-Axle aet-consists
1
LA, LE
54 55
of the following
(2) LA-2021-F Lining-front-primary
(2) LA-2022-F Lining-front-secondary
