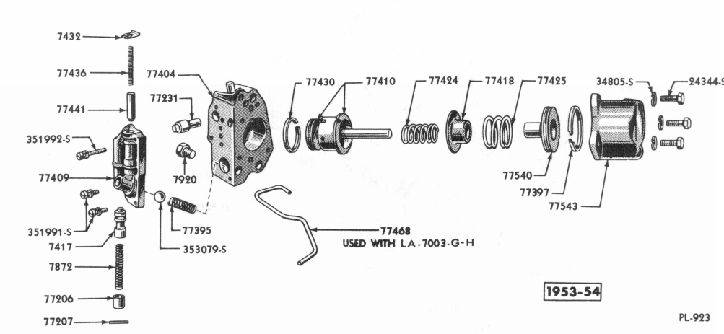

1L-77409-A2
Body assy (trans. front servo exhaust valve)-
with exhaust valve
LA-77409-A
Body assy (trans. front servo exhaust valve)
-without exhaust valve
351991-S
Screw and washer assembly (fill-hd)-No. 10-24
x 1-1/4"
351992-S
Screw and washer assembly (fill-hd)-No. 10-24
x 1-3/8"

OL-77410
Piston assembly (transmission front servo)
LA-77410-A
Piston assembly (transmission front servo)
*LA-77410-B
Piston assembly (transmission front servo)
LA-77410-C
Piston assembly (transmission front servo)
LA-77410-D
Piston assembly (transmission front servo)
B5A-77410-A
Lever (trans. rear band actuating)- ®PMB-77410-A
353529-S
Washer (flat)-1/2" I.D. x 1110.D. x 1/32"thick
B5A-77411-A
Shaft (transmission rear band actuating lever)-
GIPMB-77411-A
PMC-77413-A
Piston (transmission rear band servo)
PMC-77414-A
"0" Ring (trans. rear band servo piston oil)
OL-77415
Body (transmission front servo)
Use LA-77424-B
with this unit
