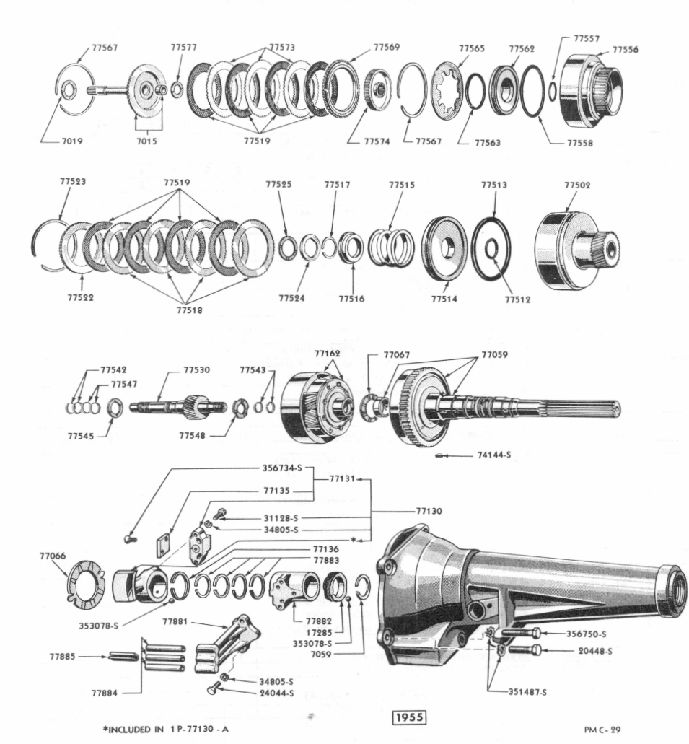

LA-77543-B
Cylinder (transmission front band release)-has
(3) flanges with 9/32" dia. drilled hole
24344-S7
Bolt (hex head)-1/4"-20 x 3/4"
34805-S8
Lockwasher-1/4"
1P-77543-B
Washer (trans. front clutch sun gear)-rear-
Cast Iron
B5S-77545-A
Washer (trans. front clutch sun gear)-Bronze-
®PMB-77545-A
B5S-77547-A
Oil seal (trans. front clutch sun gear)-
intermediate -®PMB-77547-A
