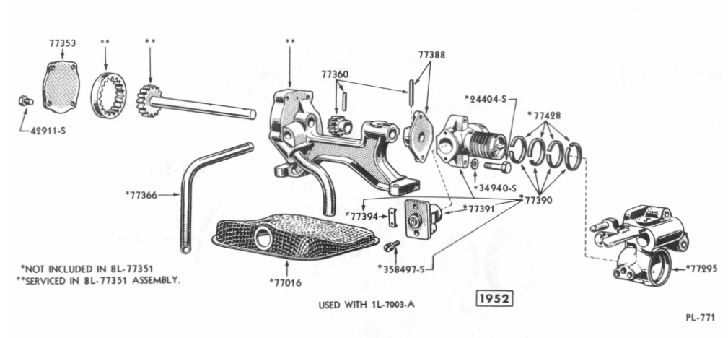

TRANSMISSION REAR OIL PUMP AND RELATED PARTS
Basic numbers only shown on illustration. Order by Part Numbers shown in list of parts.
OL-77355
Seal (transmission pressure regulator to case)-
Synthetic Rubber-51/64" I. D. x 9/64" thick
-also serviced in LA-7874-A & B and
HBK-77383-A Kits
LA-77355-A
Seal (transmission front pump intake pipe)-
Synthetic Rubber-39/64" I. D. x 7/64" thick
1P-77355-A
Shaft (transmission front band actuating lever)-
7/16" dia. x 1-11/16" long
1P-77356-A
Pin (transmission band actuating lever shaft)-
slotted-. 164" O. D. x 1-1/4" long (1) each
front & rear servo
LA-77357-A
Guide (transmission front oil pump relief valve)
73281-S Pin (straight)-3/32" x 13/161,
8L-77358
Gear (trans. rear oil pump)-driven-serviced in
8L-77360 Kit
PMC-77359-A
Piston (transmission front band servo)
