1L-77390-B
Governor assembly (transmission)-Cast Iron
24404-S7
Bolt (hex head)-1/4"-20 x 1-1/8"
34940-S2
Lockwasher (external tooth)-1/4"
8L-77391
Plunger and bushing assy (trans. governor high
speed)
358497-S
Screw & washer assy (fill-hd)-No. 10-24x5/811-
governor bushing retainer to governor body
8L-77394
Stop (governor plunger)-with two 3/32" drilled
holes
OL-77395
Spring (transmission front servo check valve)
OL-77397
Ring (trans. front servo band release piston oil)
PMC-77400-A
Servo assy (trans. rear band)-service details
357915-S
Bolt (hex-hd)-7/16"-14 x 1-7/8"-rear servo
to transmission case
34808-S8
Lockwasher-7/16" -rear servo to trans. case
8L-77401
Pipe (trans. governor oil supply)-3-1/2" long
LA-77401-A
Pipe (transmission governor oil supply)
LA-77401-B
Pipe (transmission governor oil supply)

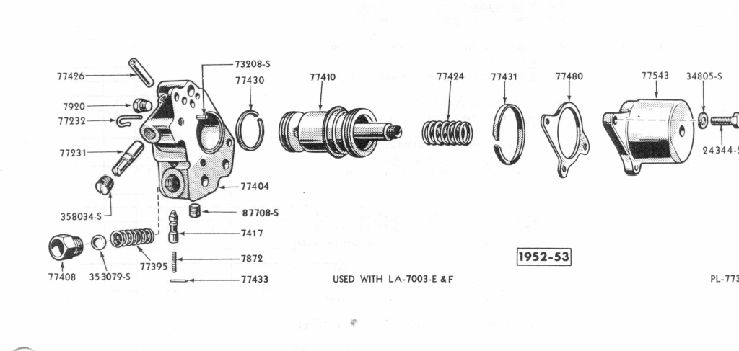

LA-77404-A
Body & pin assy (trans. front servo)-includes
73208-S Pin
LA-77404-B
Body & pin assembly (transmission front servo)
PMC-77404-A
Body assy (trans. rear band servo)
B5A-77406-A
Bearing (trans. rear servo lever needle)-
EBPMB-77406-A
LA-77407-A
Spring (trans. front pump priming)-1/2" O. D. x
approximately 9/16" free length
$LA-77407-B
Spring (trans. front pump priming)-inner-used
with LA-7408-A
OL-77408
Adapter (trans. rear pump tube)-11/16"-18 x 1/2"
LA-77408-A
Adapter (trans. rear pump tube)-11/16"-18 x 1/2"-
with 1/8" dia. x 1/32" deep internal drilled hole
