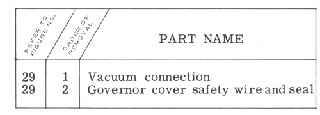

29 11 Governor housing 31 12 Governor and throttle shaft seal 31 13 Throttle shaft seal retainer 31 14 Throttle shaft bearing retainer spring 31 15 Governor to throttle body gasket 29 16 Diaphragm cover safety wire and seal 29 17 Diaphragm cover screws and lock washers (8) 29 18 Diaphragm cover

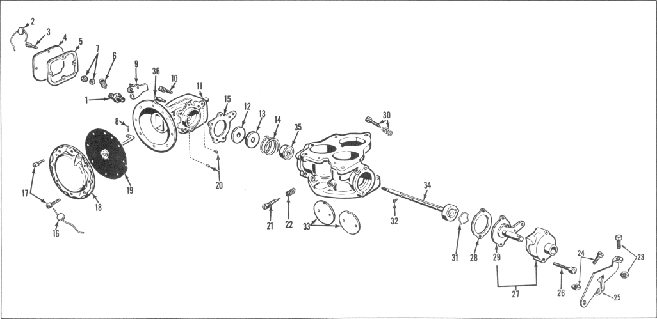

Figure 29. Disassembly - Throttle Body Assembly

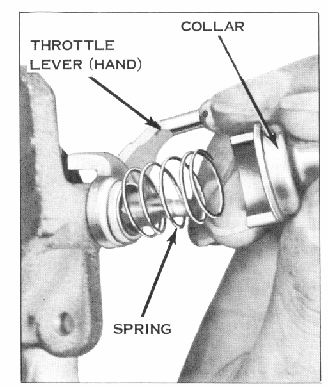

Figure 27. Removing Throttle Lever and Collar

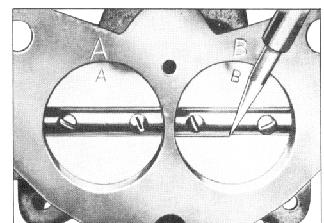

Figure 28. Scribing and Marking Throttle Plates

29

3

Governor cover screws and lock

washers (4)

29

4

Governor cover

29

5

Governor cover gasket

30

6

Governor spring

30

7

Governor lever nut and lockwasher

30

8

Diaphragm rod cotter pin

30

9

Governor lever

30

10

Governor to throttle body screws

and lockwashers (3)
