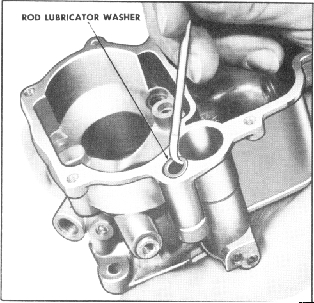

Figure 25. Removing Pump Operating
Shaft Washer

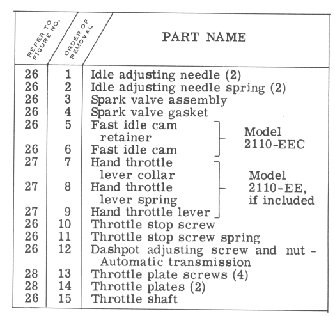

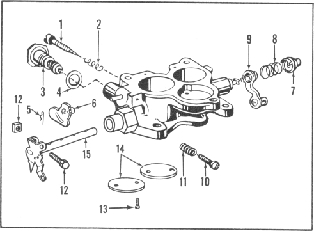

Figure 26.
Disassembly - Throttle Body Assembly
1. Remove the two idle adjusting
needles
and springs.
2. Remove the spark valve assembly
and gasket. (If included.) Discard
the gasket.
3. Remove the fast idle cam retainer
out of the fast idle cam stud. Slide
the fast idle
cam off the stud - Model 2110-EEC
only.
4. Depress the hand throttle lever
collar and turn until the shaft
end slips into the
notch, this will cause collar to
come off. Remove
the hand throttle lever spring and
lever - Model
2110-EE. (If included.)
spring.
6. Remove the dashpot adjusting
screw
and nut. (If included.)
7. Lightly scribe both throttle
plates
along the throttle shaft and mark
each throttle
plate and its corresponding bore
with a number
or letter to insure proper replacement.
8. Remove the four throttle plate
screws
and slide the throttle plates out
of the shaft.
9. Slide the throttle shaft out
of the
throttle body. (Note position of
shaft for correct
reassembly).
H. DISASSEMBLY - THROTTLE BODY
ASSEMBLY MODEL 2110-G
The following list contains all
parts to be
removed in disassembling the throttle
body as
sembly. During disassembly discard
all gaskets,
also parts which have replacements
in the Master
Repair Kits.
5. Remove the throttle stop screw
and
