5. Remove the two nozzle bars and
discard the four gaskets.
6. Remove the idle tube assemblies
from the nozzle bars.

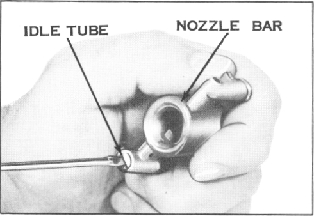

Figure 20. Removing Idle Tubes
7. Remove the pump discharge nozzle
and discard the gasket. Invert the
main body and
slide out the pump discharge valve.

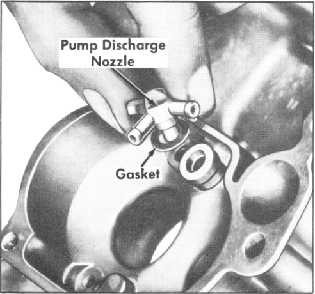

Figure 21. Removing Pump Discharge
Nozzle
8. Remove the two main jet passage
plugs and discard the gaskets. Using
Kent-Moore
Tool No. 10-174, remove the two
main jets.
9. Using Kent-Moore Tool No. 10-175,
remove the economizer valve assembly.
Remove
and discard the gasket.
Figure 22. Removing Main Jets

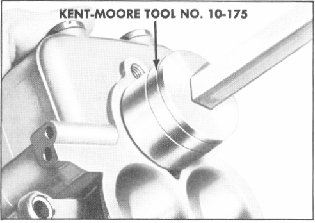

Figure 23. Removing Economizer Valve
10. Using Kent-Moore Tool No. 10-188,
remove the pump check valve retainer.
Invert
tie main ao-
y and shake out the pump check valve.
11. Remove and discard the pump
oper
ating rod lubricator washer and
the pump operating
rod lubricator ring.
12. Remove and discard the pump
oper
ating shaft washer and the pump
operating shaft
felt seal.
G.
DISASSEMBLY - THROTTLE BODY
ASSEMBLY MODELS 2110-EE,
2110-EEC AND 2110-FF
The following list contains all
parts to
be removed in disassembling the
throttle body
assembly. During disassembly discard
all
gaskets, also all parts which have
replacements
in the Master Repair Kits.
