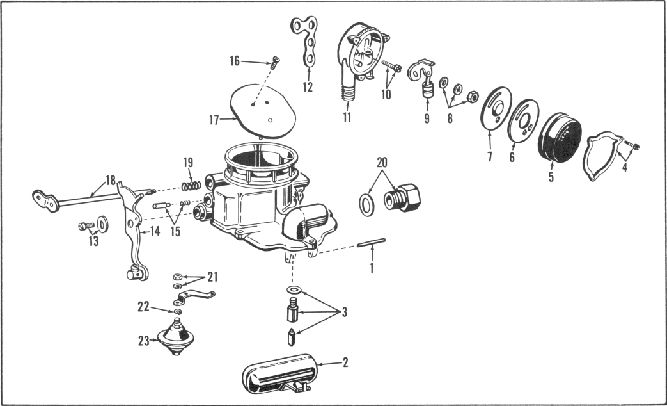

Figure 5.
Disassembly - Air Horn Assembly
D.
DISASSEMBLY - AIR HORN ASSEMBLY
MODELS 2110-EE, 2110-EEC AND
2110-FF

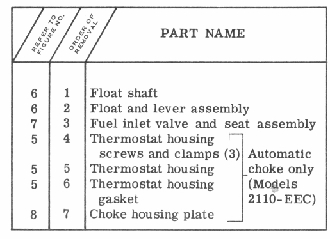

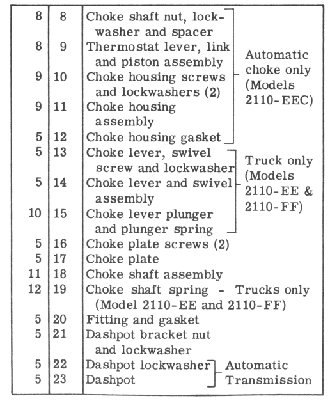

The following list contains all
parts to
be removed in disassembling the
air horn as
sembly. During disassembly discard
all gaskets,
also all parts which have replacements
in the
Master Repair Kit.
