1. Slide the float shaft out of the
float
lever bracket and remove the float
and lever as
sembly.

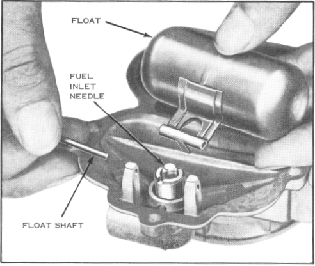

Figure 6. Removing Float Shaft and
Float Assembly
2. Using Kent-Moore Tool No. 10-183
remove the fuel inlet valve and
seat assembly.
Discard the gasket.

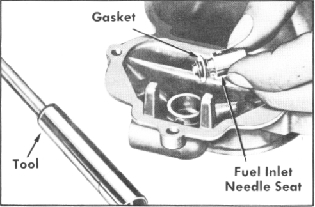

Figure 7.
Removing Fuel Inlet Valve and Seat
Assembly
NOT
The fuel inlet valve and seat assembly
is a
matched assembly, and it is not
inter
changeable.
4. Remove the thermostat housing
gasket and the choke housing plate.
5. Remove the choke shaft nut, lock
washer and spacer and lift the thermostat
lever,
link and piston assembly out of
the housing.

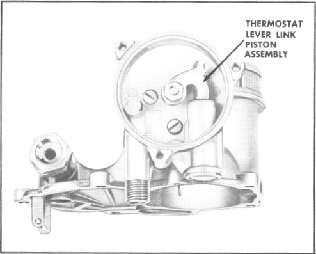

Figure 8. Thermostat
Cover Removed
6. Remove the two choke housing
screws
and lockwashers and lift the choke
housing as
sembly off the choke shaft. Remove
and discard
the choke housing gasket.

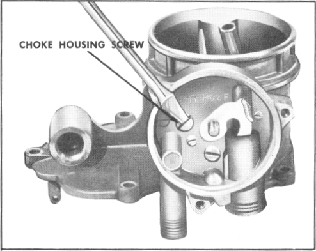

Figure 9. Removing Choke Housing
Screws
NOTE: The next 4 steps pertain only
to Models
2110-EEC.
NOTE: The next 2 steps pertain only
to Models
2110-EE and 2110-FF.
3. Remove the three thermostat housing
screws and clamps and lift the thermostat
housing
cover off the choke housing.
7. Remove the choke lever and swivel
screw and lockwasher and lift off
the choke lever
and swivel assembly.
