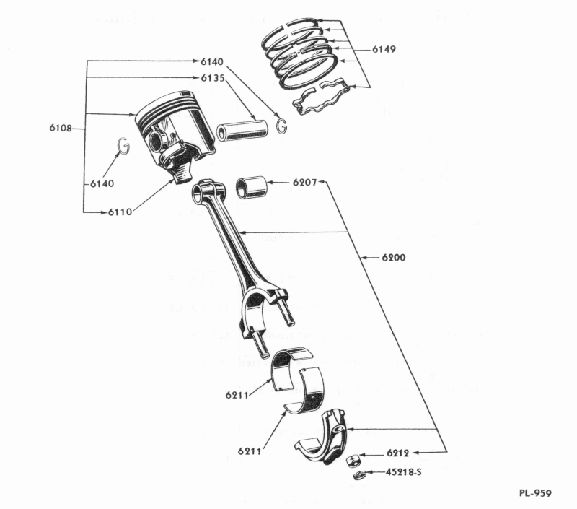

PISTON AND CONNECTING ROD
Basic numbers only shown on illustration.
Order by Part Numbers shown in list of parts.
PART NUMBER
PART NAME
No
REQ'D
MODEL
YEAR
19
EAD 6108-A
Piston, pin & retainer set-Standard
8
LA
52-54
EAD 6108-B
Piston, pin & retainer set-. 005"
O/S
8
LA
52-54
EAD 6108-C
Piston, pin & retainer set-. 020"
O/S
8
LA
52-54
EAD 6108-D
Piston, pin & retainer set-. 030"
O/S
8
LA
52-54
EAD 6108-E
Piston, pin & retainer set-. 040"
O/S
8
LA
52-54
EBB 6108-A
Piston, pin & retainer set-Standard
8
LE
55
EBB 6108-B
Piston, pin & retainer set-. 005"
O/S
8
LE
55
EBB 6108-C
Piston, pin & retainer set-. 020"
O/S
8
LE
55
EBB 6108-D
Piston, pin & retainer set-. 030"
O/S
8
LE
55
EBB 6108-E
Piston, pin & retainer set-. 040"
O/S
8
LE
55
EAD 6135-B
Pin (piston)-Standard-marked with Green
paint
8
LA, LE
52-55
EAD 6135-C
Pin (piston)-. 001" O/S-marked
with Blue paint
8
LA, LE
52-55
EAD 6135-D
_
LA, LE
52-55
EAA 6140-A
Retainer (piston pin)
16
LA, LE
52-55
