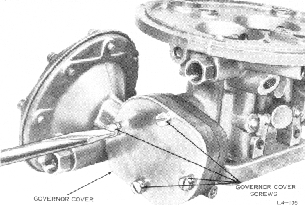

FIGURE 42. REMOVING GOVERNOR COVER
SCREWS
8. Remove and discard the governor
cover
lead seal and wire. Remove the four
governor
cover screws. Remove the governor
cover and
discard the cover gasket.
FIGURE 44.
REMOVING GOVERNOR LINE
FITTINGS

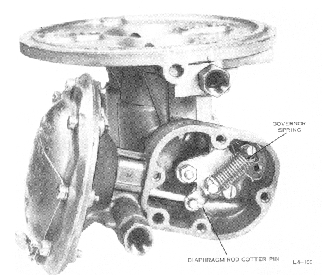

FIGURE 43. REMOVING GOVERNOR SPRING
9. Lift the governor spring off
the posts. The
governor spring must not be stretched
excessively
or distorted in any way during this
operation. A
damaged spring would cause inaccurate
governor
action.
NOTE
The governor spring post in the
governor
housing should not be removed. If
it is
necessary to replace this post,
make sure
the new post is installed in the
same po
sition in the governor housing.
10. Remove the two governor line
fittings.
Remove the governor lever nut and
lockwasher, and
remove and discard the diaphragm
rod cotter pin.
Lift the governor lever off the
throttle shaft.
FIGURE 45. REMOVING GOVERNOR TO
THROTTLE
BODY SCREWS
11. Remove the three governor to
throttle
body screws and lockwashers, and
separate the
governor housing from the throttle
body.
