F. Disassembly - Throttle Body -
Governor Equipped Carburetors

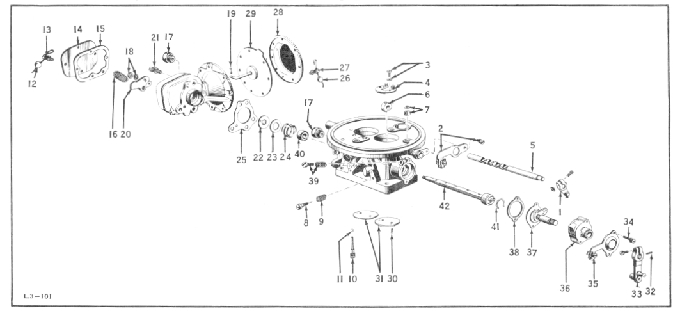

FIGURE 38. DISASSEMBLY-THROTTLE BODY
OF GOVERNOR EQUIPPED CARBURETORS

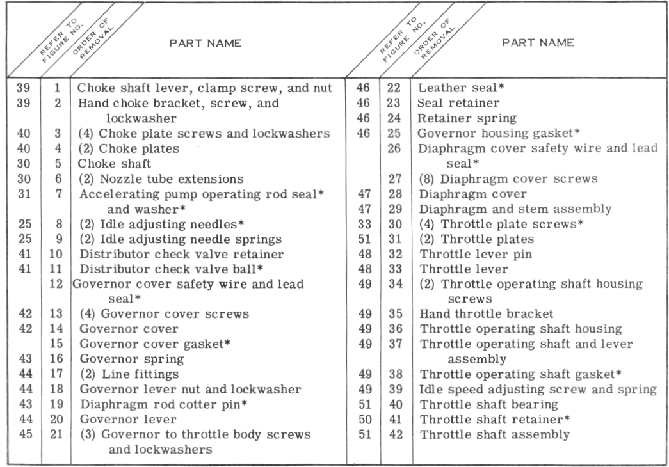

The following list contains all
the parts of the throttle body of the governor equipped carburetor in
the order of their removal. Parts
marked with an asterisk are to be discarded and replaced from a
master repair kit.
