18. Pull the throttle shaft out of
the throttle
body.
19. Remove the dashpot lever from
the throt
tle shaft on dashpot equipped carburetors.
E. Disassembly -Automatic Choke Unit
The automatic choke unit should
be removed
from the manifold and overhauled
at the same
time the carburetor is overhauled.

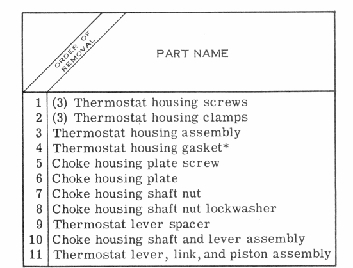

The following
list contains all of the parts to
be removed from
the automatic choke unit in the
order of their re
moval. Parts marked with an asterisk
are to be
discarded and replaced from a Master
Repair Kit.
FIGURE 35. REMOVING THROTTLE SHAFT

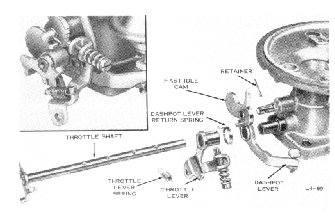

FIGURE 36. REMOVING THROTTLE SHAFT
AND
LINKAGE-DASHPOT EQUIPPED CARBURETOR
1. Remove the three thermostat housing
screws and clamps, and remove the
thermostat
housing assembly.
2. Remove and discard the thermostat
housing
gasket. Remove the choke housing
plate screw and
remove the plate.
3. Remove the choke housing shaft
nut, lock
washer, and thermostat lever spacer.
Pull the
choke housing shaft and lever assembly
out of
the choke housing.

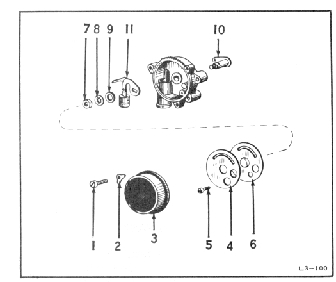

FIGURE 37. DISASSEMBLY-AUTOMATIC
CHOKE
UNIT
4. Remove the thermostat lever,
link, and
piston assembly by turning the lever
to raise the
piston out of its chamber in the
choke housing.
