7. Remove the diStributor check valve
re
tainer and check valve ball. Discard
the check
valve ball.
DASHPOT
CHECK VALVE
RETAINER

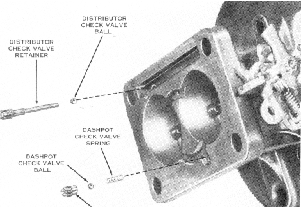

FIGURE 26. REMOVING DISTRIBUTOR
AND
DASHPOT CHECK VALVES
8. From the dashpot equipped carburetor,
re
move the dashpot check valve retainer,
check valve
ball and checkvalve spring. Discard
the check valve
ball and spring. These parts will
be found only in
carburetors using the earlier type
dashpot as de
scribed on pages 10 and 11.

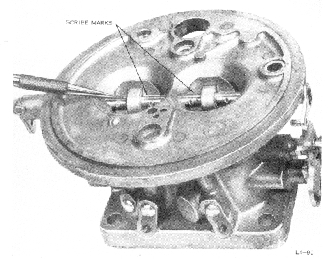

FIGURE 27.
SCRIBING AND MARKING
CHOKE
9. Lightly scribe both choke plates
along
the choke shaft and mark them and
their corre
sponding bores with numbers or letters
to insure
proper placement in reassembly.
L~ 89
FIGURE 28. REMOVING CHOKE PLATE
SCREWS
10. Remove the four choke plate
screws and
remove the two choke plates.

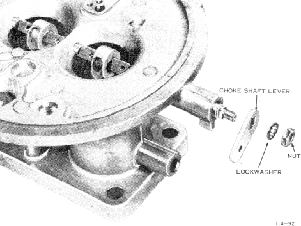

FIGURE 29. REMOVING CHOKE SHAFT
LEVER
11. Remove the choke shaft nut and
lock
washer and the choke shaft lever.

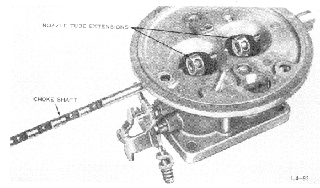

FIGURE 30. REMOVING CHOKE SHAFT
AND
NOZZLE TUBE EXTENSIONS
12. Carefully pull the choke shaft
out of the
throttle body and remove the two
nozzle tube
extensions.
