26 of 40 |  |
 |
 |
4. Using Snap-On Tool No. MC-119,
remove
the adapter body screw and discard
the adapter
body screw gasket.
FIGURE 22. REMOVING DASHPOT

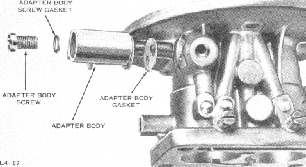

FIGURE 24. REMOVING ADAPTER BODY
1. Using two 7/16-inch open-end
flat
wrenches,
hold the dashpot lock nut and remove
the dashpot
2. Slip the dashpot out of the throttle
body
and discard the remaining dashpot
gasket.
NOTE
The dashpotis used only on carburetors
for Mercury engines with automatic
trans
missions.
5. Remove the adapter body and adapter
body
gasket. Discard the gasket.
NOTE
The spark valve is used only on
the Lincoln
carburetor.

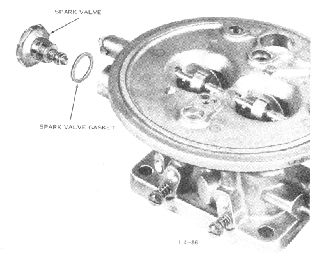

FIGURE 23. REMOVING SPARK VALVE
3. Using a 1-inch open-end wrench,
remove
the spark valve and discard the
gasket.
NOTE
Never attempt adjustment of this
unit.
T
he
pressure of the spark valve spring
is cali

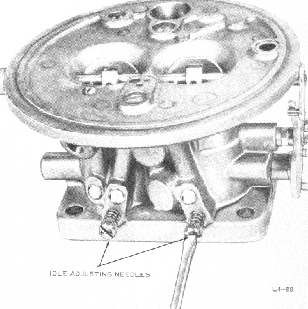

FIGURE 25. REMOVING IDLE NEEDLES
6. Remove the two idle adjusting
needles and
springs. Discard the idle needles.
