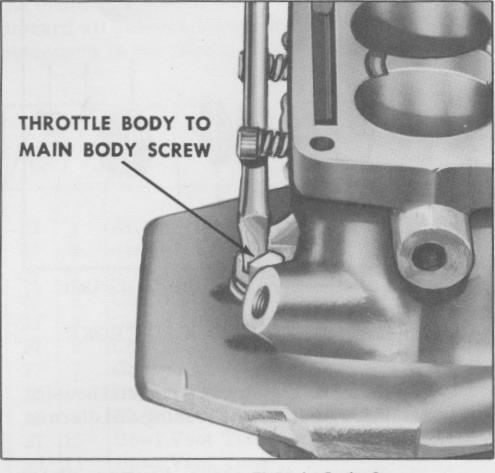

Figure 20. Removing Throttle Body Screws

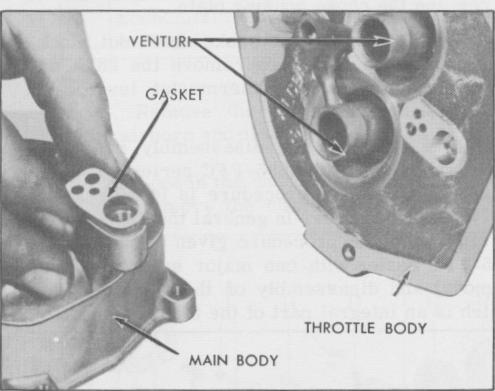

Figure 21. Removing Main Body

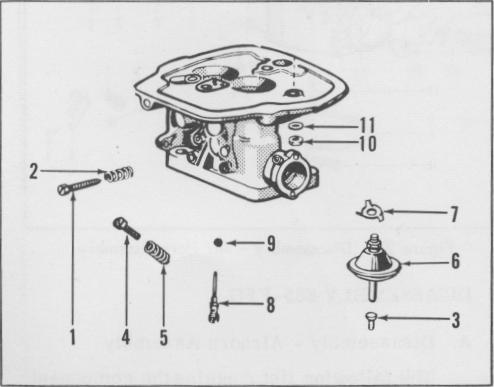

Figure 22. Disassembly - Throttle Body Assembly
C. DISASSEMBLY - THROTTLE BODY
ASSEMBLY
The following list contains the component parts of the Model 885-FFC throttle body assembly in the order in which they are removed. During disassembly discard all gaskets, also all parts which have a replacement in the Master Repair Kit.
|
~e
0
o
PART NAME
04 | ||
|
23 |
1 |
Idle Adjusting Needle (2) |
|
23 |
2 |
Idle Adjusting Needle Spring (2) |
|
22 |
3 |
Dashpot Adjusting Screw |
|
23 |
4 |
Throttle Stop Screw |
|
23 |
5 |
Throttle Stop Screw Spring |
|
22 |
6 |
Dashpot |
|
22 |
7 |
Dashpot Retainer Lock |
|
22 |
8 |
Distributor Passage Check Valve |
|
Retainer | ||
|
22 |
9 |
Distributor Passage Check Valve |
|
22 |
10 |
Pump Rod Felt Packing Retainer |
|
22 |
11 |
Pump Rod Felt Packing |

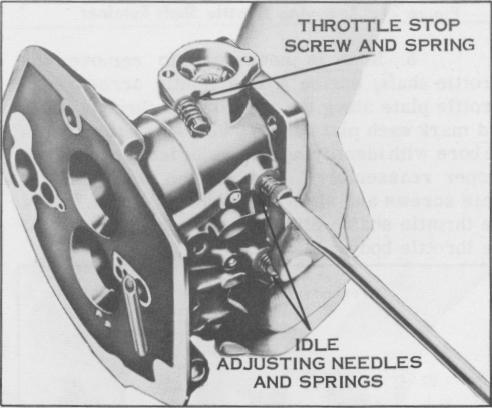

Figure 23. Removing Idle Adjusting Needles
1. Remove the two idle adjusting needles and spring.
2. With an open end wrench, remove the dashpot and dashpot retainer lock. Dashpot is found only on carburetor for the vehicles with automatic transmission.
-13
