B. DISASSEMBLY - MAIN BODY ASSEMBLY
The following list contains the component parts of the Model 885-FFC and 885-FFG main body assembly in the order in which they are removed. During disassembly discard all gaskets, also all parts which have replacements in the Master Repair Kit.
|
"
PART NAME
Q"E 4 | ||
|
8 |
1 |
Bowl Cover Plate |
|
8 |
2 |
Bowl Cover Plate Gasket (2) |
|
9 |
3 |
Idle Tubes (2) |
|
9 |
4 |
Main Well Tubes (2) |
|
10 |
5 |
Pump Discharge Valve |
|
11 |
6 |
Fuel Valve Seat Plug |
|
7 |
7 |
Fuel Valve Seat Plug Gasket |
|
7 |
8 |
Fuel Inlet Needle Seat |
|
7 |
9 |
Fuel Inlet Needle Seat Gasket |
|
13 |
10 |
Float Shaft |
|
7 |
11 |
Float Assembly |
|
7 |
12 |
Fuel Inlet Needle |
|
7 |
13 |
Float Spring |
|
14 |
14 |
Power Jet Valve |
|
14 |
15 |
Power Jet Valve Gasket |
|
15 |
16 |
Main Jets (2) |
|
7 |
17 |
Pump Link Retainer |
|
7 |
18 |
Pump Link Assembly |
|
16 |
19 |
Pump Link Stud |
|
17 |
20 |
Pump Operating Spring |
|
17 |
21 |
Pump Rod `Washers (2) l |
|
17 |
22 |
Pump Rod Seal If Included |
|
17 |
23 |
Pump Return Spring |
|
17 |
24 |
Pump Operating Rod |
|
17 |
25 |
Pump Spring Washer |
|
17 |
26 |
Pump Spring |
|
17 |
27 |
Pump Piston Assembly |
|
18 |
28 |
Pump Check Valve Retainer Spring |
|
18 |
29 |
Pump Check Valve Ball |
|
19 |
30 |
Fuel Inlet Fitting |
|
19 |
31 |
Fuel Inlet Fitting Gasket |
|
19 |
32 |
Filter Screen and Retainer |
|
19 |
33 |
Filter Screen Retainer Spring |
|
20 |
34 |
Throttle Body Screws and |
|
Lockwashers (2) | ||
|
21 |
35 |
Main Body to Throttle Body Gasket |
|
21 |
36 |
Secondary Venturi Assembly |

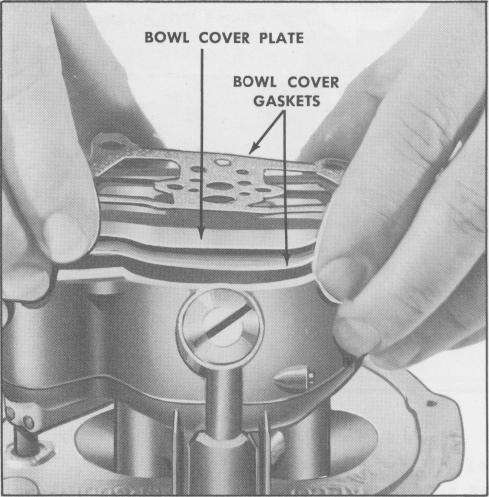

Figure 8. Removing Bowl Cover Plate

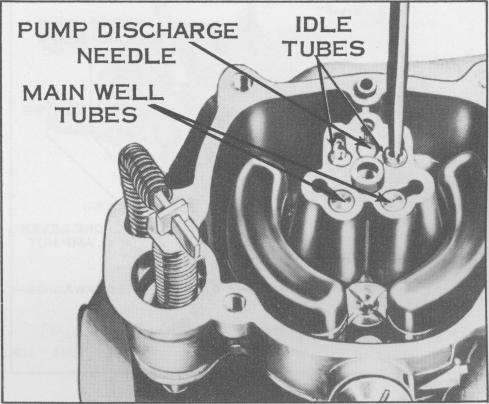

Figure 9. Loosening Idle Tubes
2. Loosen the two idle tubes carefully with the proper size screwdriver then invert the carburetor and catch the two idle tubes, two main well tubes and pump discharge valve when they fall out.
3. Using Snap-On Tool No. TMC-38, remove the fuel valve seat plug and discard the gasket.
1. Remove the bowl cover plate and discard the two bowl cover plate gaskets.
4. Using Snap-On Tool No. MC-125, remove the fuel inlet needle seat and discard the gasket.
-10
