B5A-77415-A

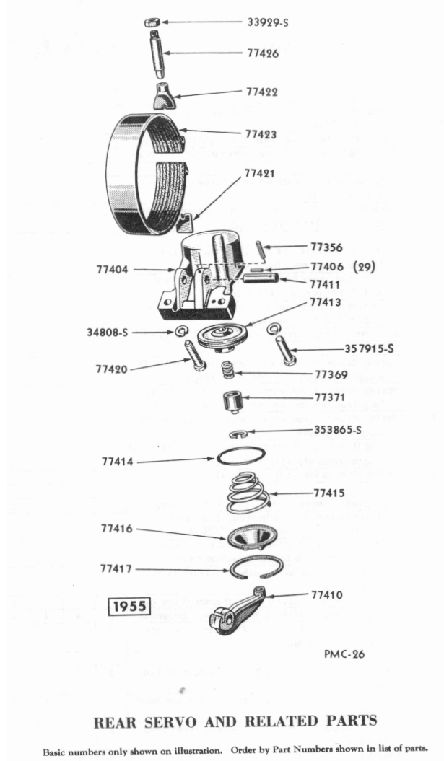

Spring (transmission rear band servo piston)-

®PAG-77415-A

PMC-77416-A

Retainer (trans. rear band servo piston spring)

PMC-77417-A

Snap ring (trans. rear band servo piston retainer)

OL-77418

Retainer (trans. front servo release spring)-

1-13/16" 0. D.

1L-77419-A

Spring (trans. front pump by pass valve)-27/64"

O. D. x 1-23/32•' free length
