Wiring diagrams for 58-60 Edsel
These diagrams are from the 1965 edition of the 'National Automotive Service' wiring diagrams book. This book contains the wiring diagrams for all American cars from 57-65.

The diagrams below have been scanned so as to ensure maximum detail (big files!).

Back to the Old Car Manual Project

contact us

Index of wiring diagrams for Edsel

1958 Edsel Ranger and Pacer
1958 Edsel Corsair and Citation

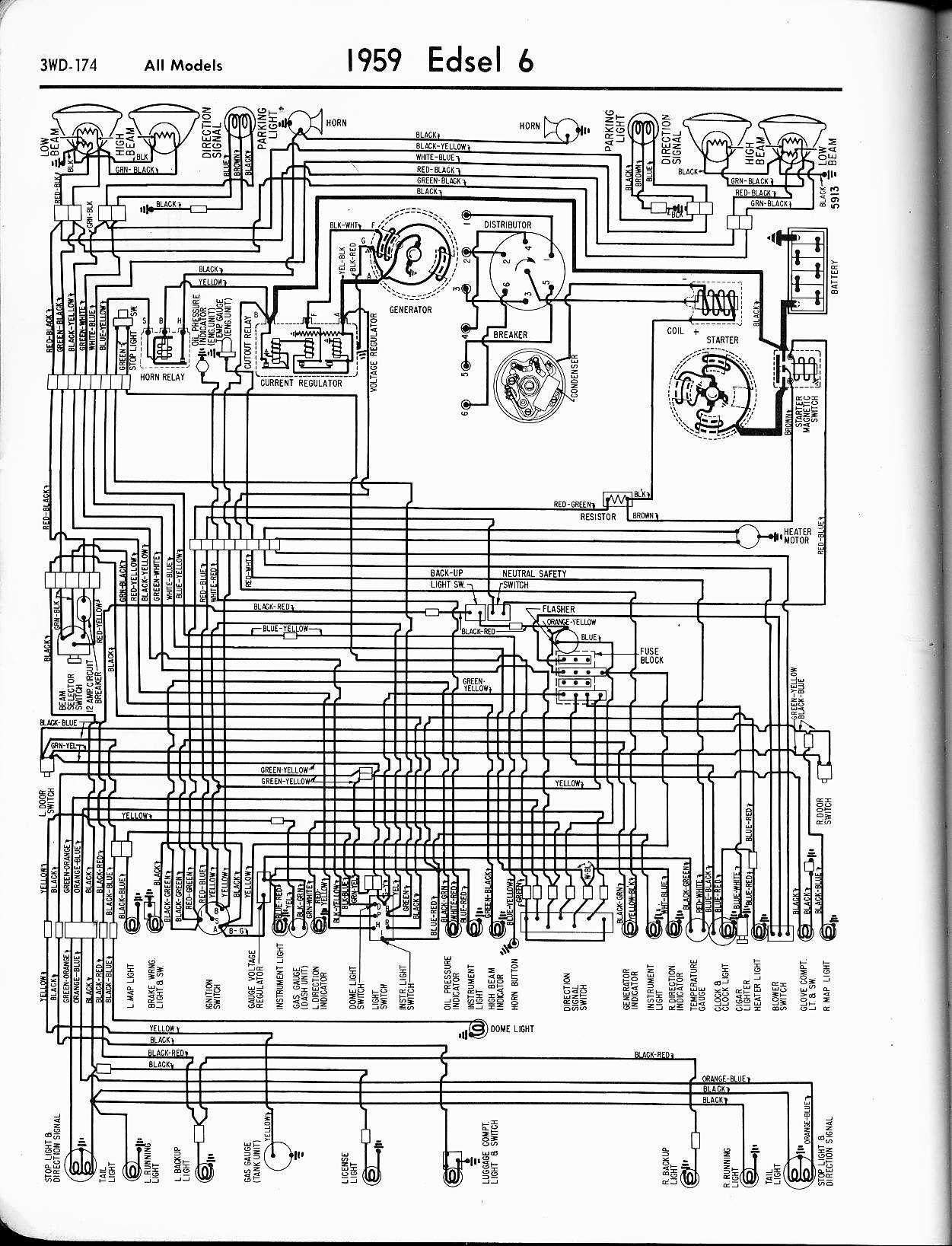

1959 Edsel six

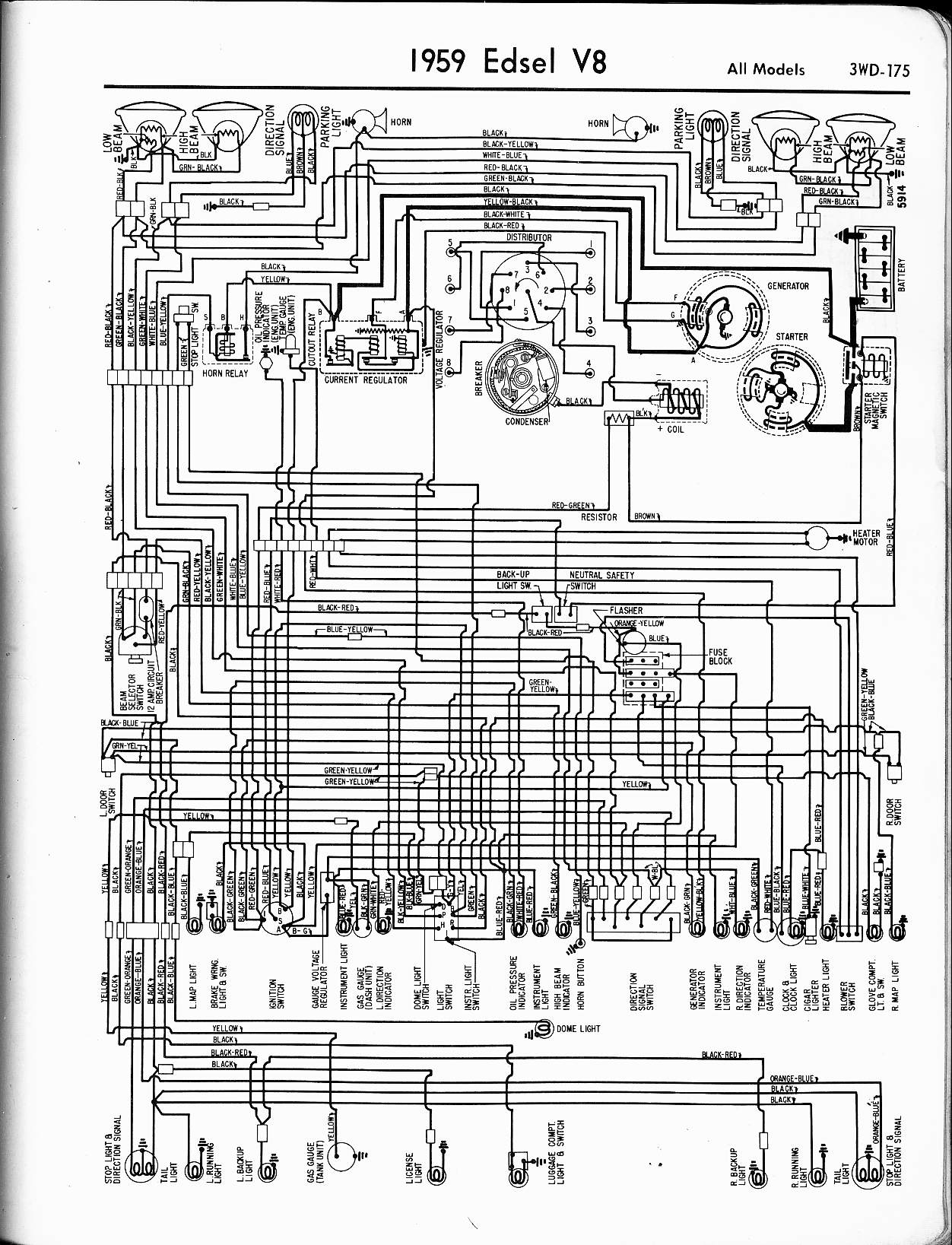

1959 Edsel V8

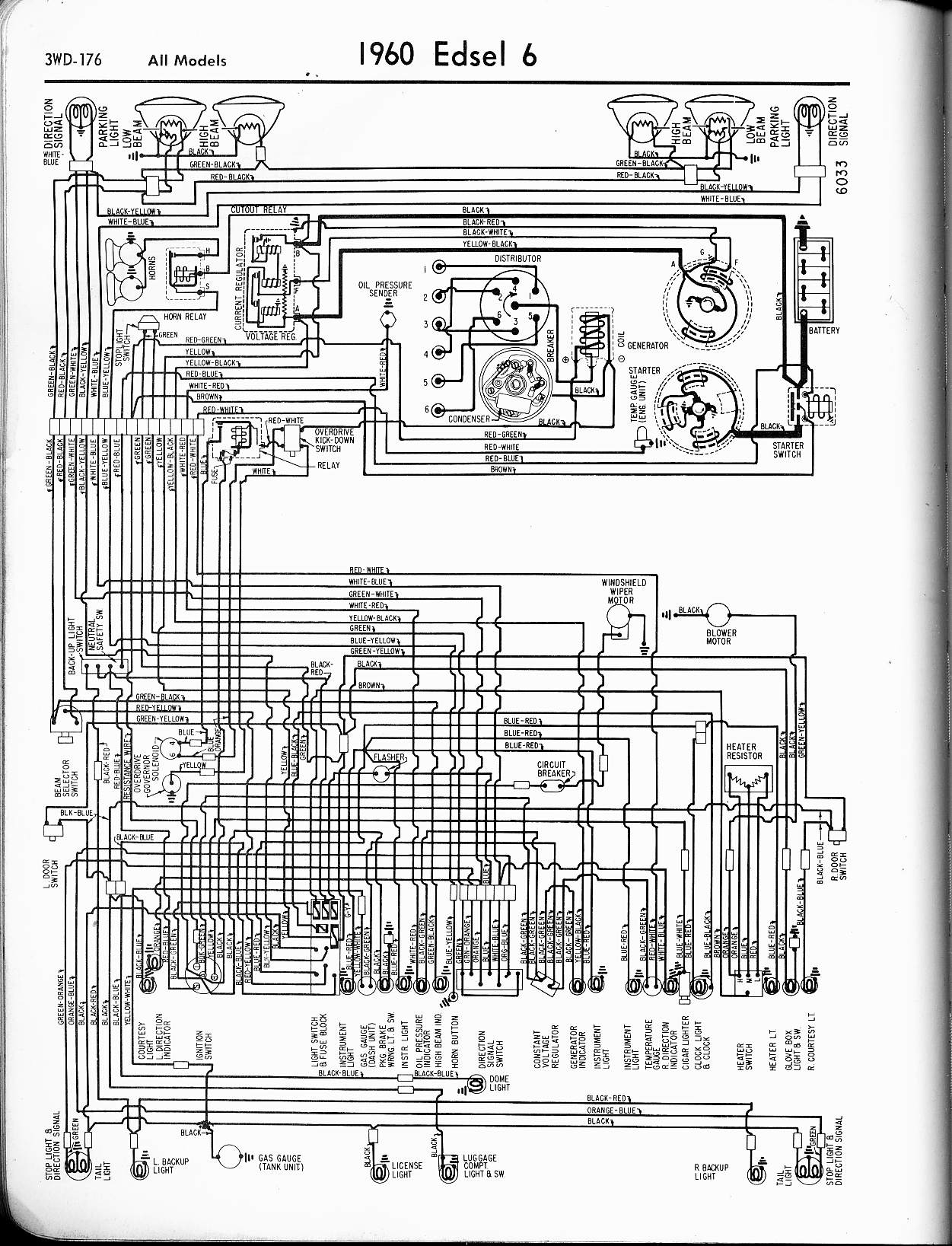

1960 Edsel six

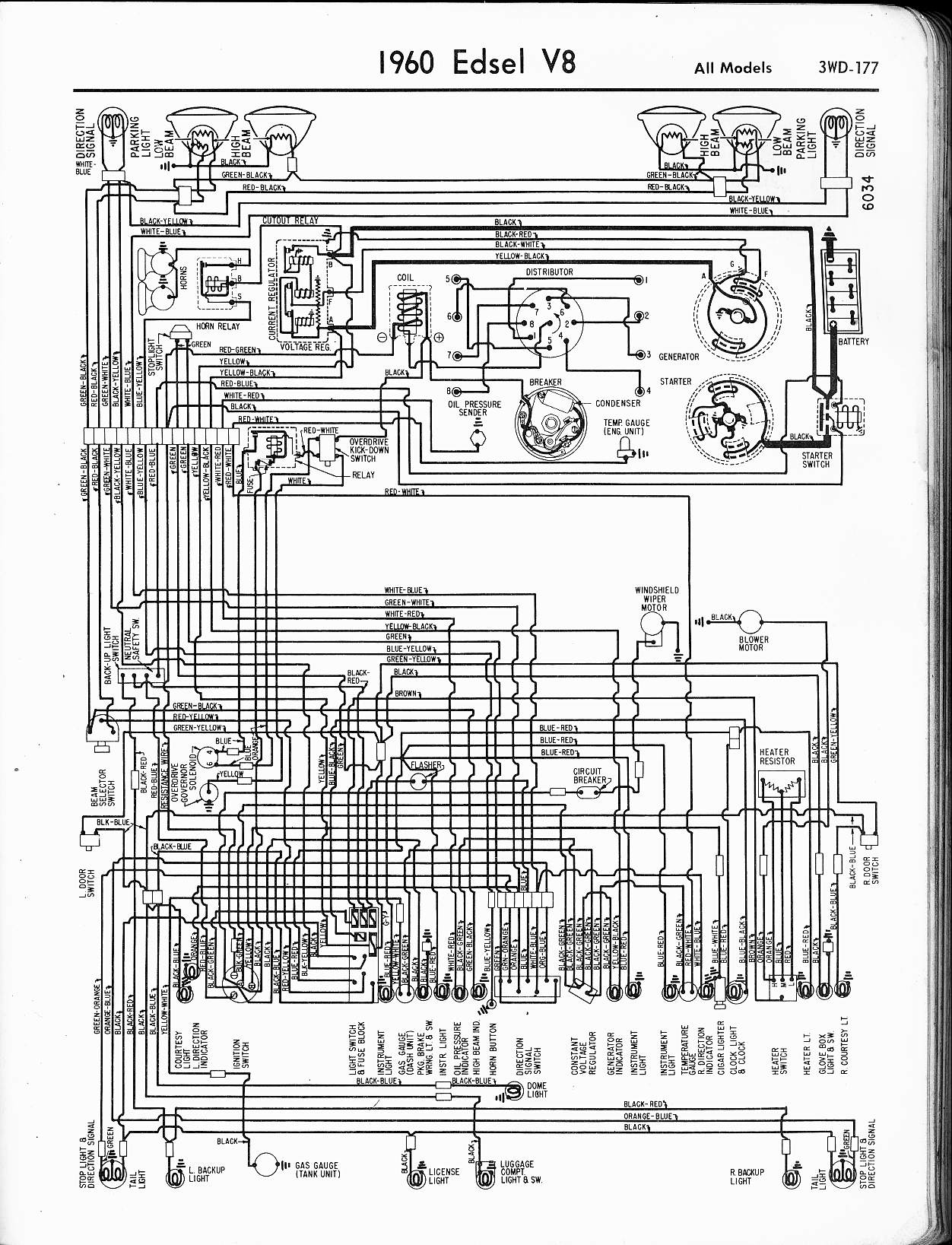

1960 Edsel V8
