Side Housings (front, rear and intermediate housings)

The side housings provide the contact surfaces for the side seals, thus acting as the side surfaces of the working chambers.

The intake ports for the working chambers are also provided in the side housings.

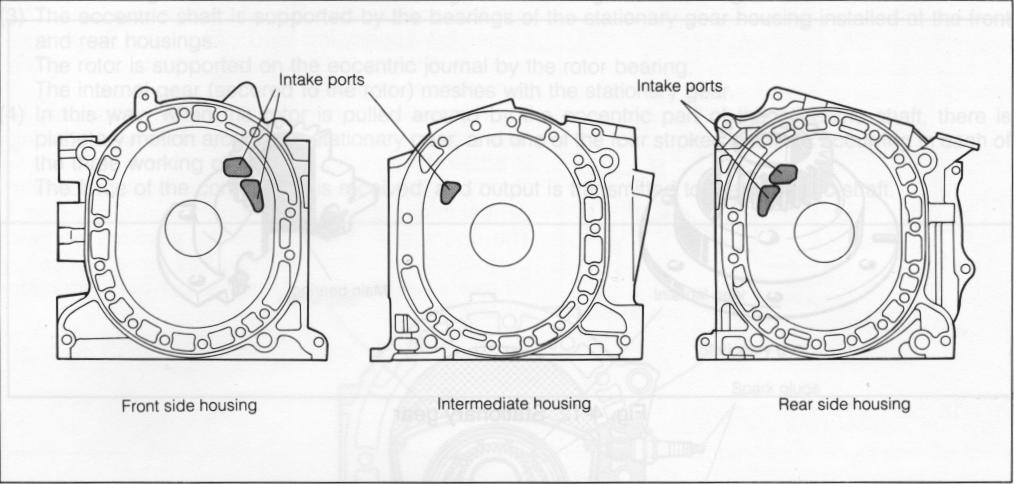

Fig. 4-10 Side housings

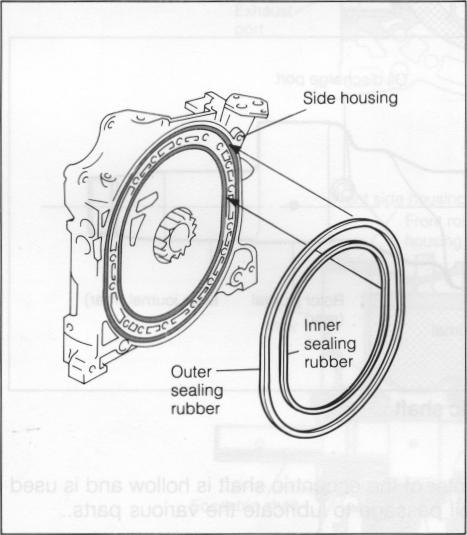

Fig. 4-11 Sealing rubbers

Sealing rubber parts installed around the coolant passages in the side housings prevent leakage of coolant or gases from the rotor housings.

11
