CONSTRUCTION AND FUNCTIONS

MAJOR COMPONENT PARTS

The RE is a two-rotor type rotary engine, and is composed of the following component parts.

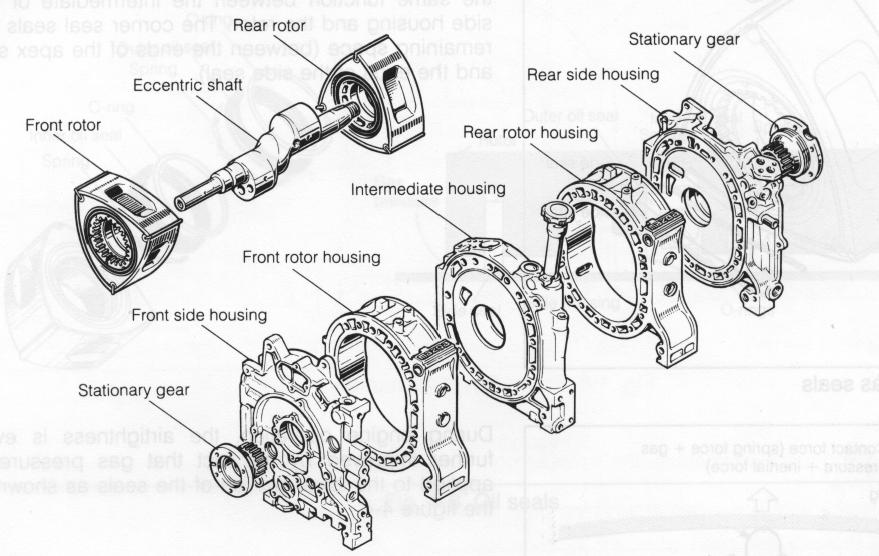

Fig. 4-1 Major component parts

Rotor

The rotor performs the functions that are performed by the pistons, connecting rods and valves in the CE. Consequently, the opening and closing of the intake and exhaust ports, the execution of the four cycles, and the transmission of the force of ignition to the output shaft are performed during the planetary motion.

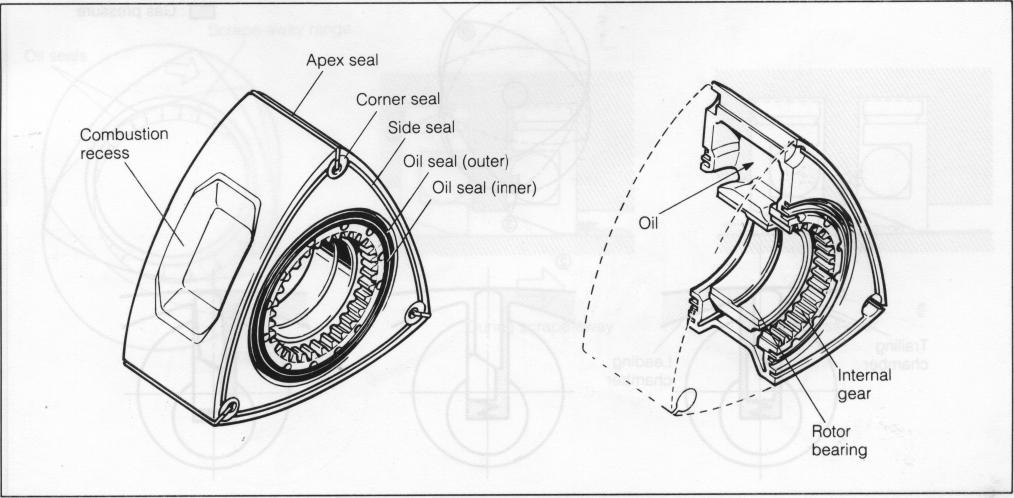

Fig. 4-2 Rotor
