updated April 18, 2006

Holley 4150G and 4150MG Service Parts Lists and Typical Views

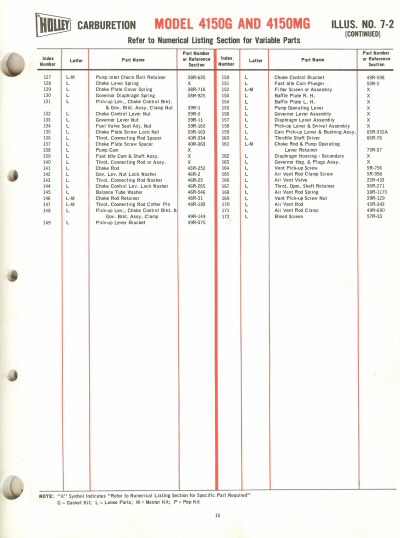

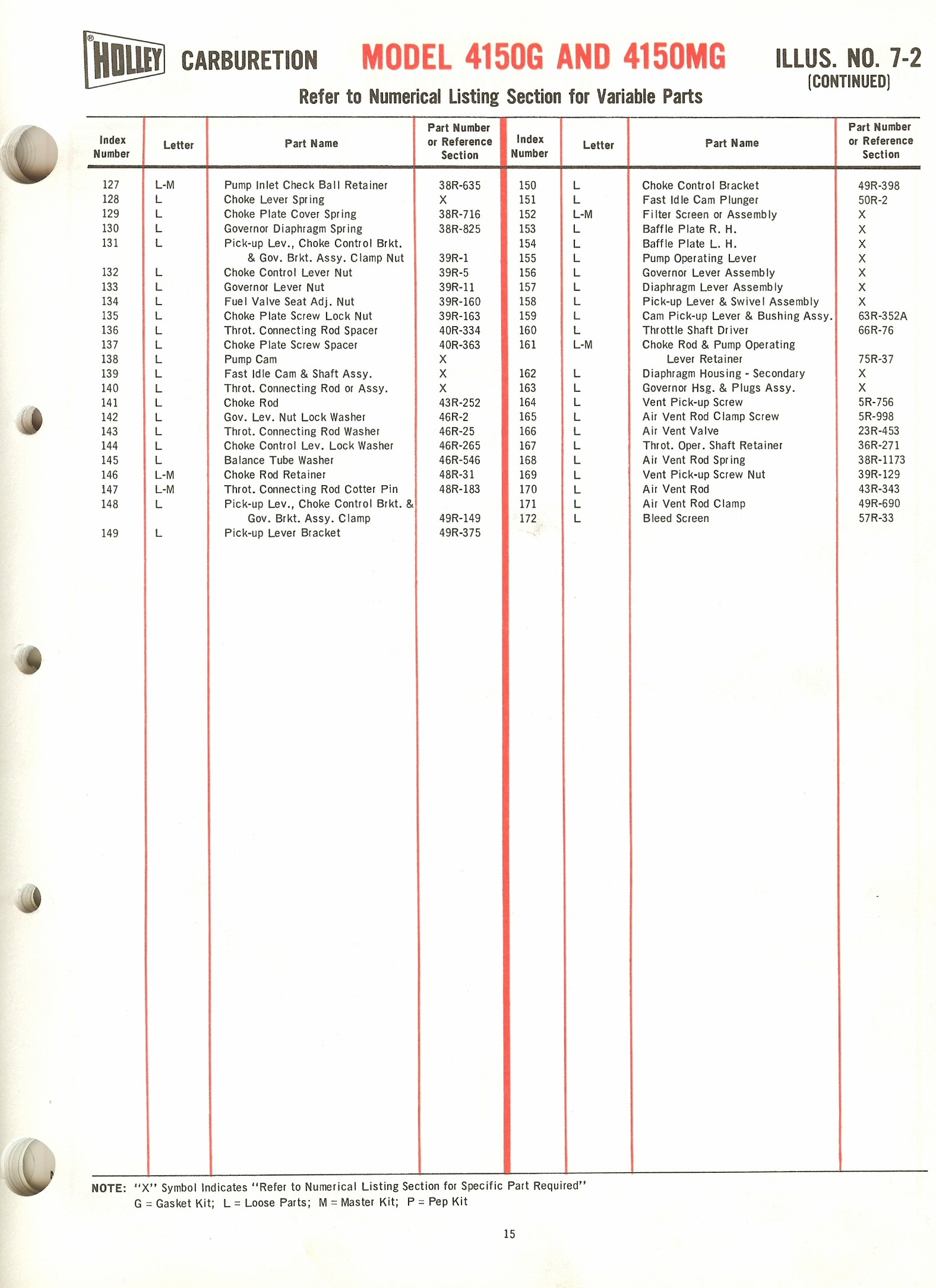

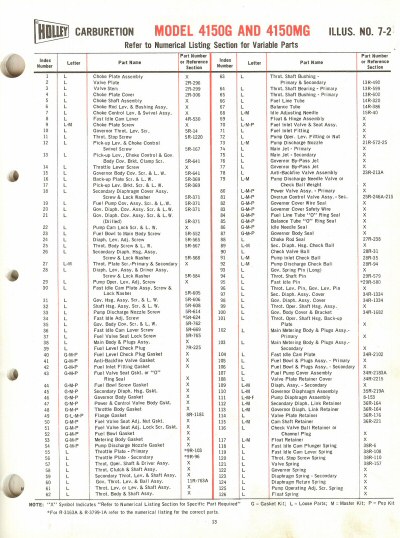

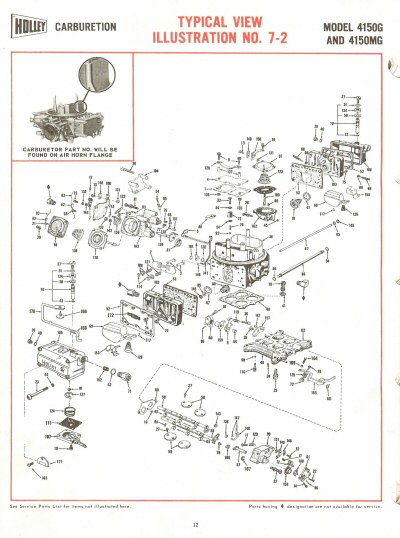

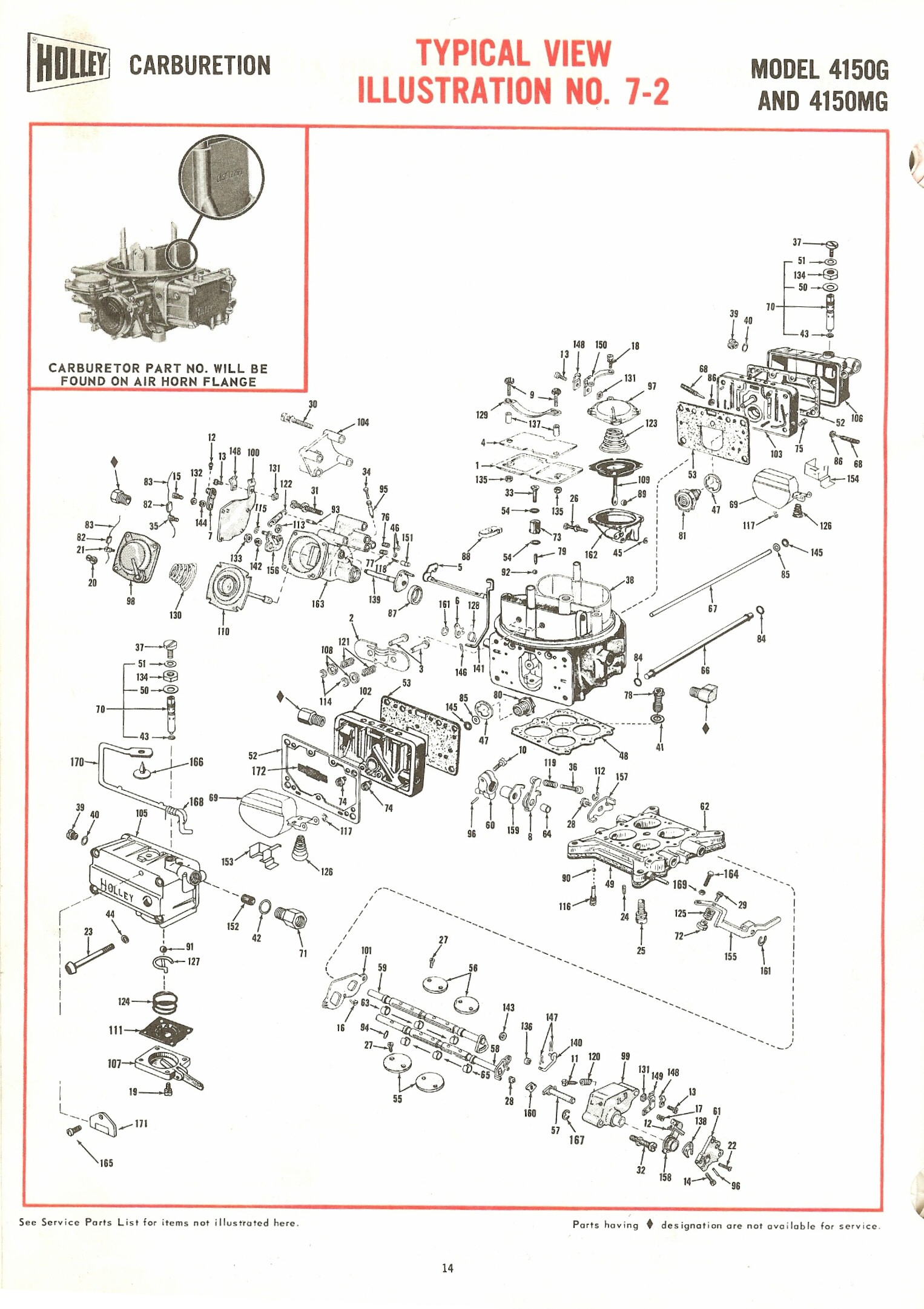

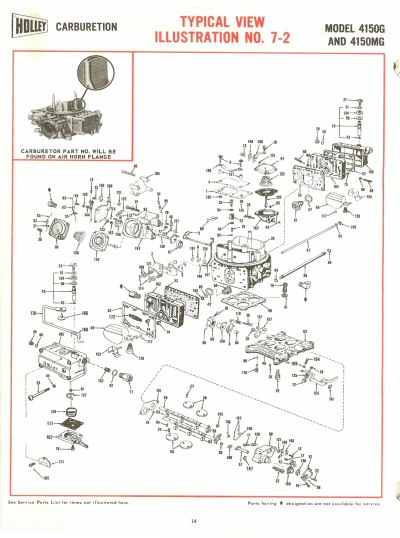

This is from the Holley Carburetion Catalog for 1968.  It features exploded diagrams and parts identification tables for each type of Holley carb up to that date.

Click on an image below for a 200 dpi enlargement.
