pump rod arm (3) out of the slot in the piston stem, the entire assembly may be taken apart. Discard the pump piston and stem assembly (6).

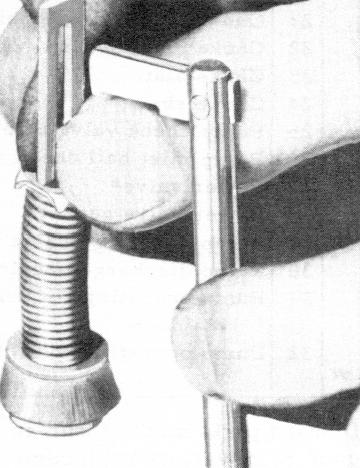

FIGURE 11 - DISASSEMBLING ACCELERATING PUMP ASSEMBLY
(2) Slide the accelerating pump as sembly out of the casting. By depressing the pump spring (4) and washer (5) and sliding the

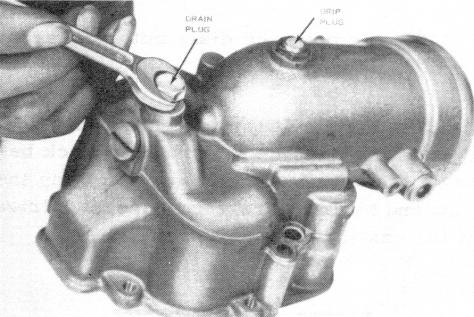

FIGURE 12 - REMOVING DRAIN PLUG AND DRIP PLUG

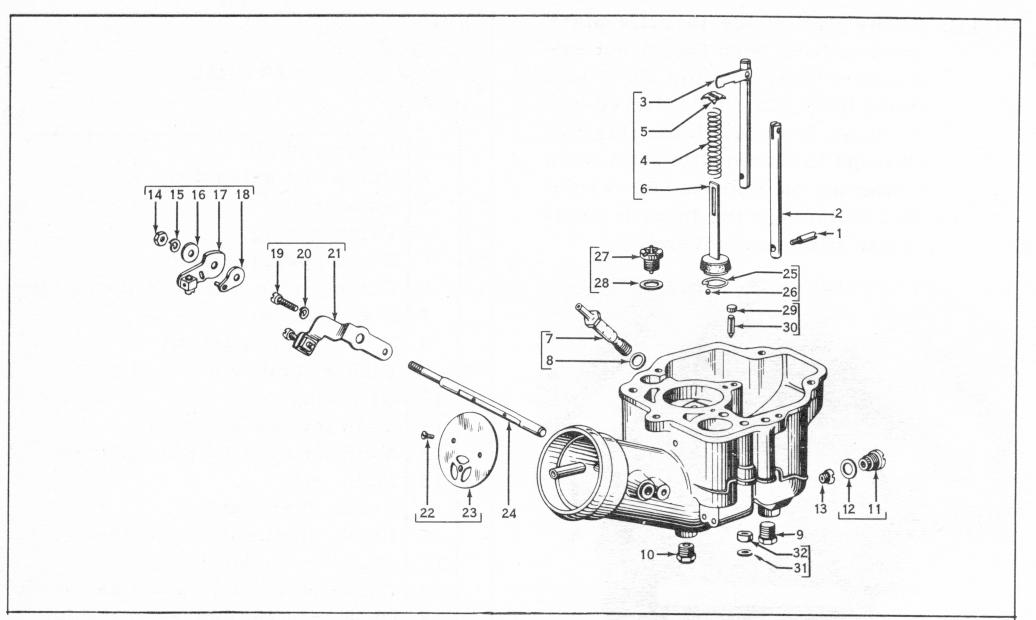

With a 7/16 "wrench, remove the main nozzle (7) and discard the gasket (8).
(3 )
