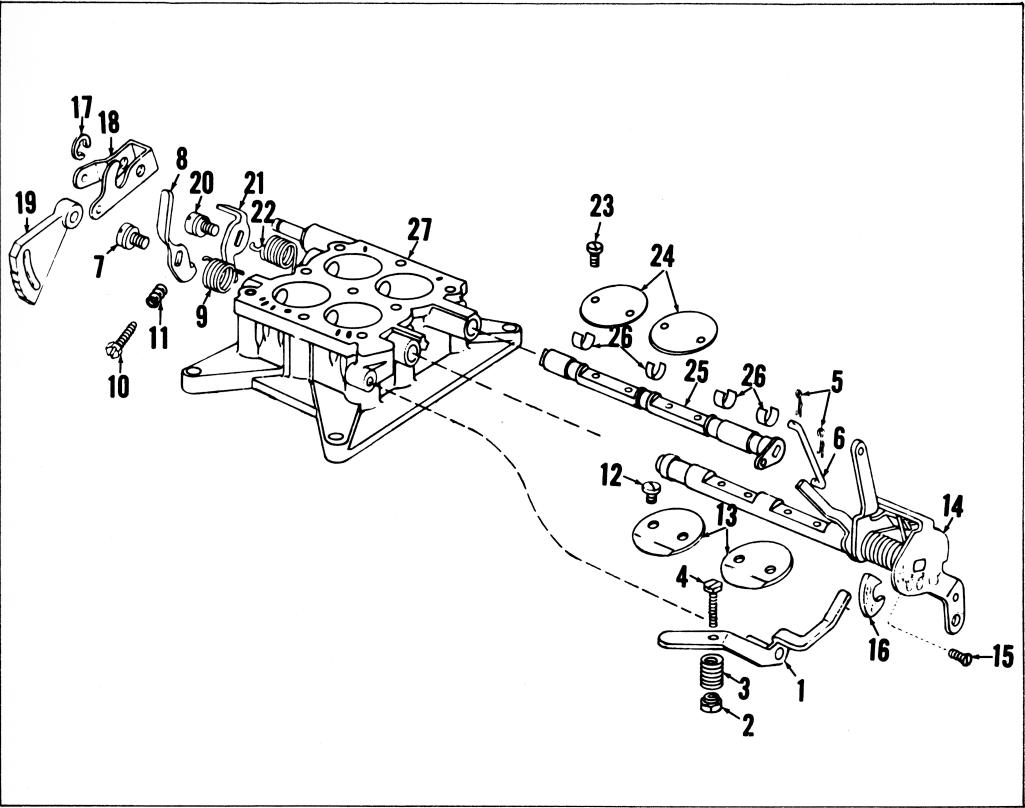

    Figure 25. Disassembly-Throttle Body Disassembly 4160
With Mechanical Secondarys


  Order of

Removal
NAME

  Order of

  Removal
NAME
  1
Pump Operating Lever
  15
  Pump Cam Screw
  2
  Nut
  16
  Pump Cam
  3
  Spring
  17
  "E" Clip
  4
  Screw
  18
  Choke Lever
  5
  Cotter Pins
  19
  Fast Idle Cam
  6
  Secondary Connecting Rod
  20
Screw and Lockwasher
  7
Screw and Lockwasher
  21
  Secondary Stop Lever
  8
  Fast Idle Cam Lever
  22
  Spring
  9
  Spring
  23
  Secondary Throttle Plate Screws
10
  Fast Idle Cam Screw
  24
  Secondary Throttle Plates
11
  Spring
  25
  Secondary Throttle Shaft Linkage
12
  Primary Throttle Plate Screws
  26
  Teflon Bushings
13
  Primary Throttle Plates
  27
  Throttle Body
14
  Primary Throttle Shaft Assembly
