        Key To Figure 8. (cont'd)

  Order of

Removal
  NAME

  Order of

Removal
NAME
17
  Pump Cam
  38
  Governor Diaphragm Link Retainer
18
  Throttle Operating Shaft Retainer
  39
  Governor Lever Assembly
19
  Throttle Operating Lever &
  40
  Governor Spring Post

  Shaft Assembly
  41
  Governor Housing Assembly Screws
  20
  Back-Up Plate & Bearing Assembly
  42
  Governor Housing & Plugs Assembly
  21
  Throttle Shaft Housing Back-Up
  43
  Governor to Main Body Gasket

  Plate Gasket
  44
  Governor Vacuum Fitting
22
  Choke Bracket Clamp Screw
  45
  Governor Diaphragm Cover Wire
  23
  Choke Bracket Clamp Screw Nut

  & Seal
24
  Choke Bracket Clamp
  46 Governor Diaphragm Cover Screws &
25
  Fast Idle Cam Nut

  Lock Washers (Drilled)
26
  Fast Idle Cam Lock Washer
  47
  Governor Diaphragm Cover
27
  Fast Idle Cam
  48
  Governor Diaphragm Assembly
28
  Choke Lever Spring Washer
  49
  Governor By-Pass Jets
29
  Choke Control Shaft & Lever Assembly
  50
  Throttle Plate Screws
30
  Choke Lever Swivel Screw
  51
  Throttle Plates
31
  Governor Cover Wire & Seal
  52
  Throttle Shaft Retainer (Large)
32
  Governor Cover Screws & Lock
  53
Throttle Shaft Bearing

  Washers (2 screws drilled)
  54
  Throttle Clutch & Shaft Assembly
33
  Governor Body Cover
  55
  Throttle Shaft Bushings
34
  Governor Body Cover Gasket
  56
  Throttle Shaft Retainer (Small)
35
  Governor Spring
  57
  Idle Adjusting Needle
36
  Governor Lever Nut
  58
  Idle Adjusting Needle Spring
37
  Governor Lever Nut Lock Washer
  59
  Throttle Body

  10. DISASSEMBLY PROCEDURE MODEL 4150C

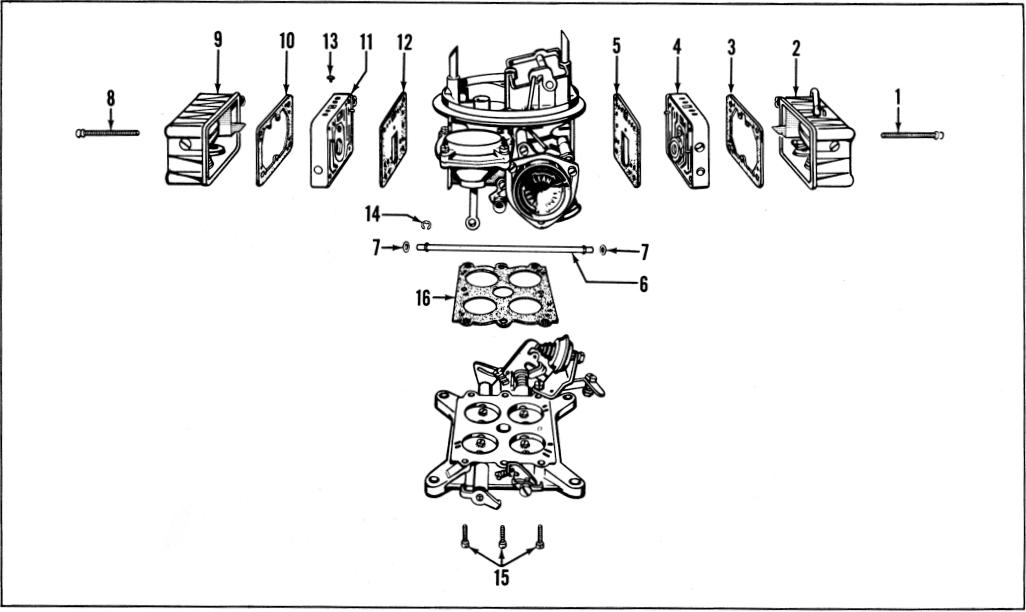

      Figure 9. Disassembly-Major Subassemblies 4150C
