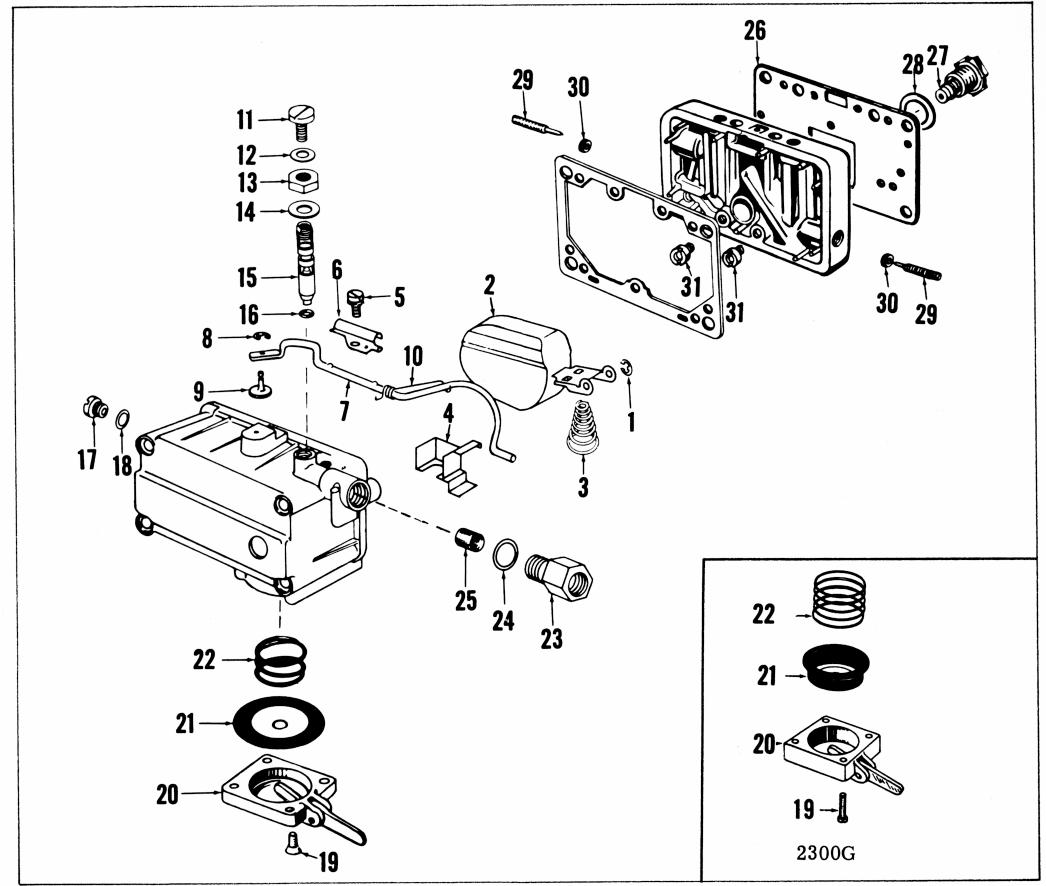

      Figure 2. Disassembly-Primary Fuel Bowl


  Order of

Removal
  NAME

  Order of

Removal
NAME

1
  Float Retainer

  17
  Sight Plug

2
  Float Assembly

  18
  Sight Plug Gasket

3
  Float Spring

  19
  Fuel Pump Cover Screws

4
  Baffle

  20
  Cover Assembly

5
  Air Vent Screw

  21
  Diaphragm Assembly

6
  Clamp

  22
  Spring

7
  Air Vent Rod

  23
  Fuel Inlet Fitting

8
  Clip

  24
  Gasket

9
  Air Vent Valve

  25
  Filter Screen

10
  Air Vent Rod Spring

  26
Metering Body Gasket

11
  Locking Screw

  27
  Power Valve Assembly

12
  Seal

  28
  Power Valve Gasket

13
  Hex Nut
  29
Idle Adjusting Needles

14
  Seal
  30
  Idle Adjusting Needle Seals

15
  Valve
  31
  Primary Main Jets

16
  "O" Ring Seal
