Carter W-1 Service Procedures - The Old Car Manual Project

updated December 21, 2006

Carter W-1 Service Procedures and Chevrolet W-1 Specifications

Click on a thumbnail below for the 1947 Carter W-1 Service Procedure

A pdf version is here.

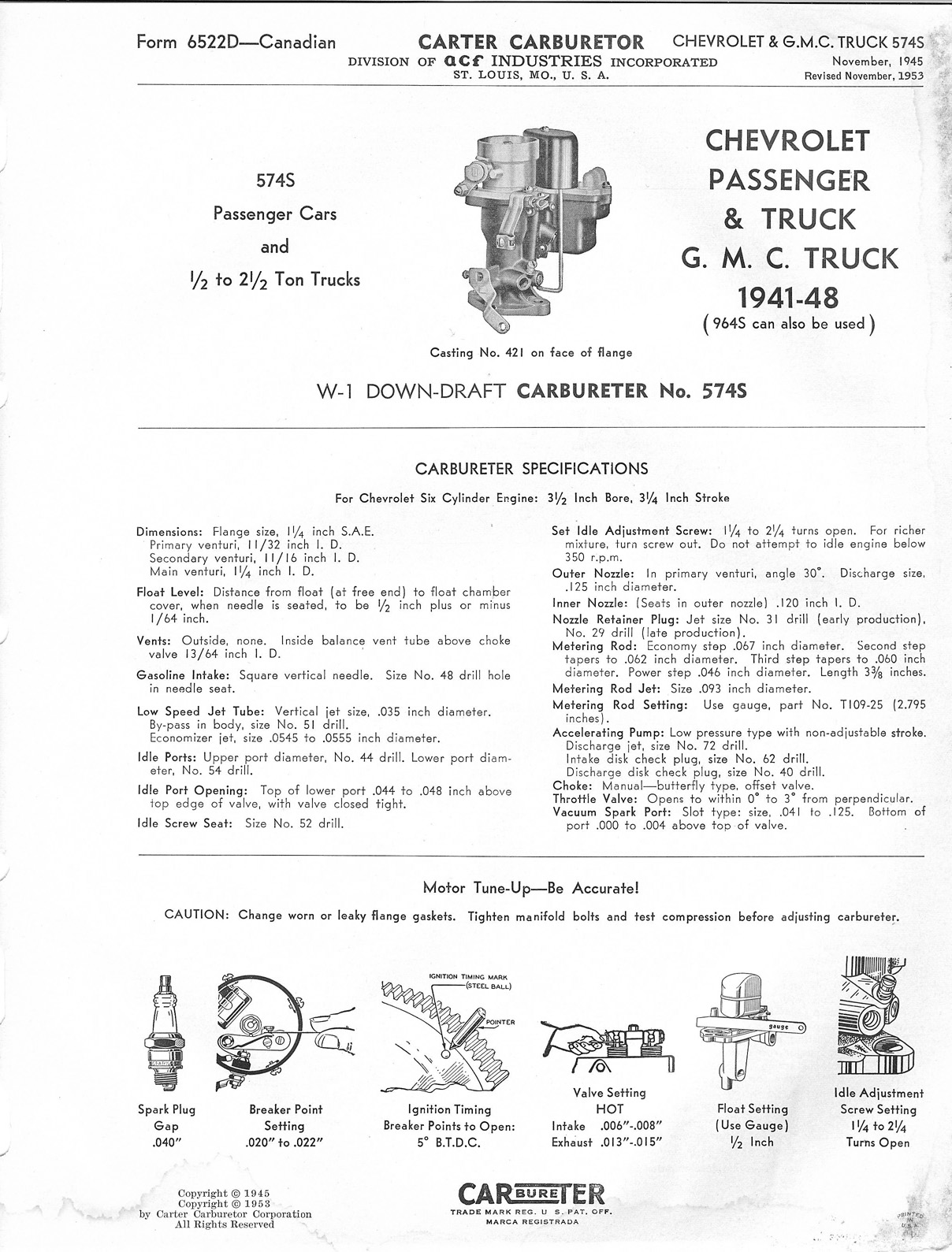

1941-1948 Chevrolet and GMC Carter W-1 No. 574S Specifications - page 1

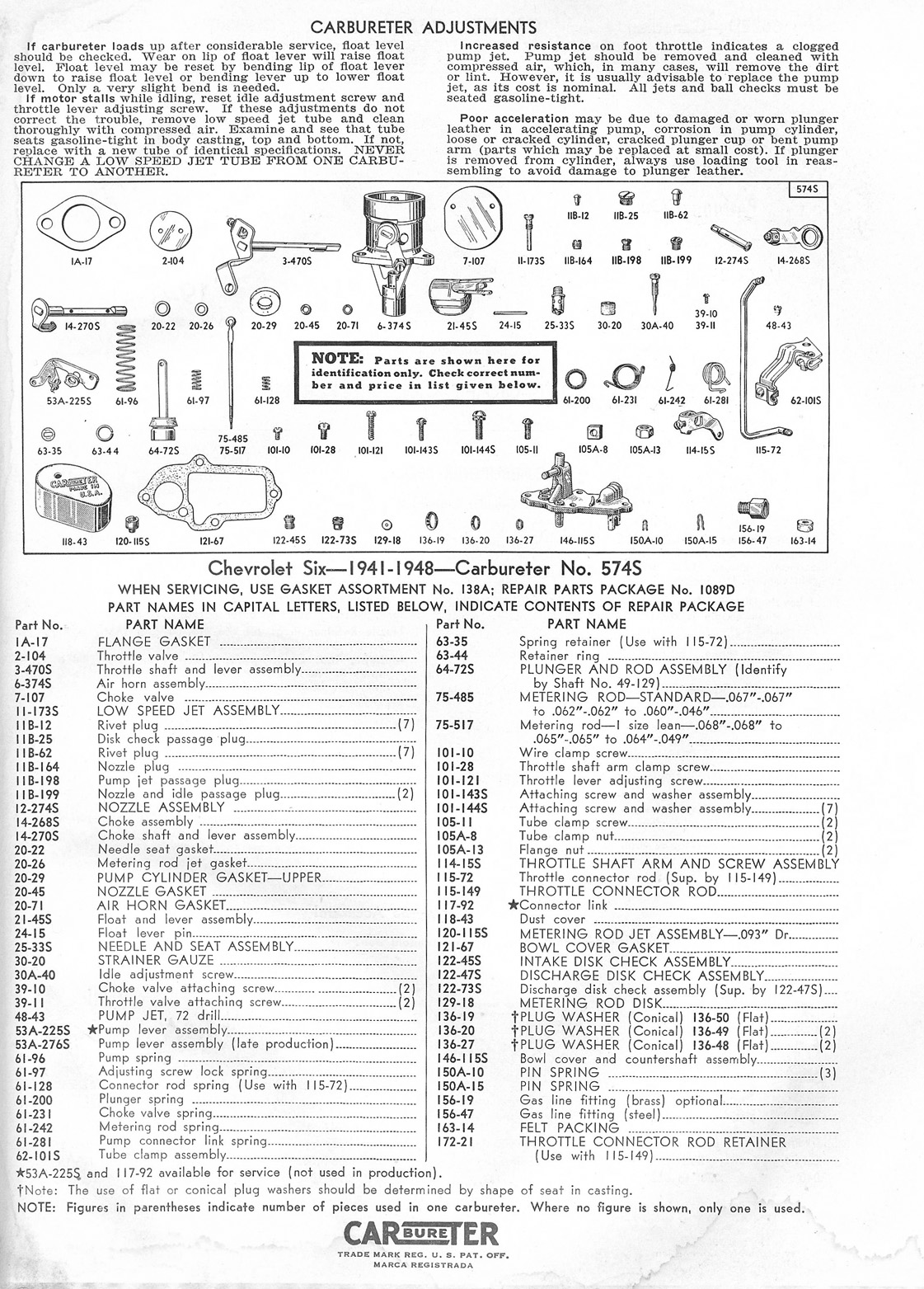

1941-1948 Chevrolet and GMC Carter W-1 No. 574S Specifications - page 2

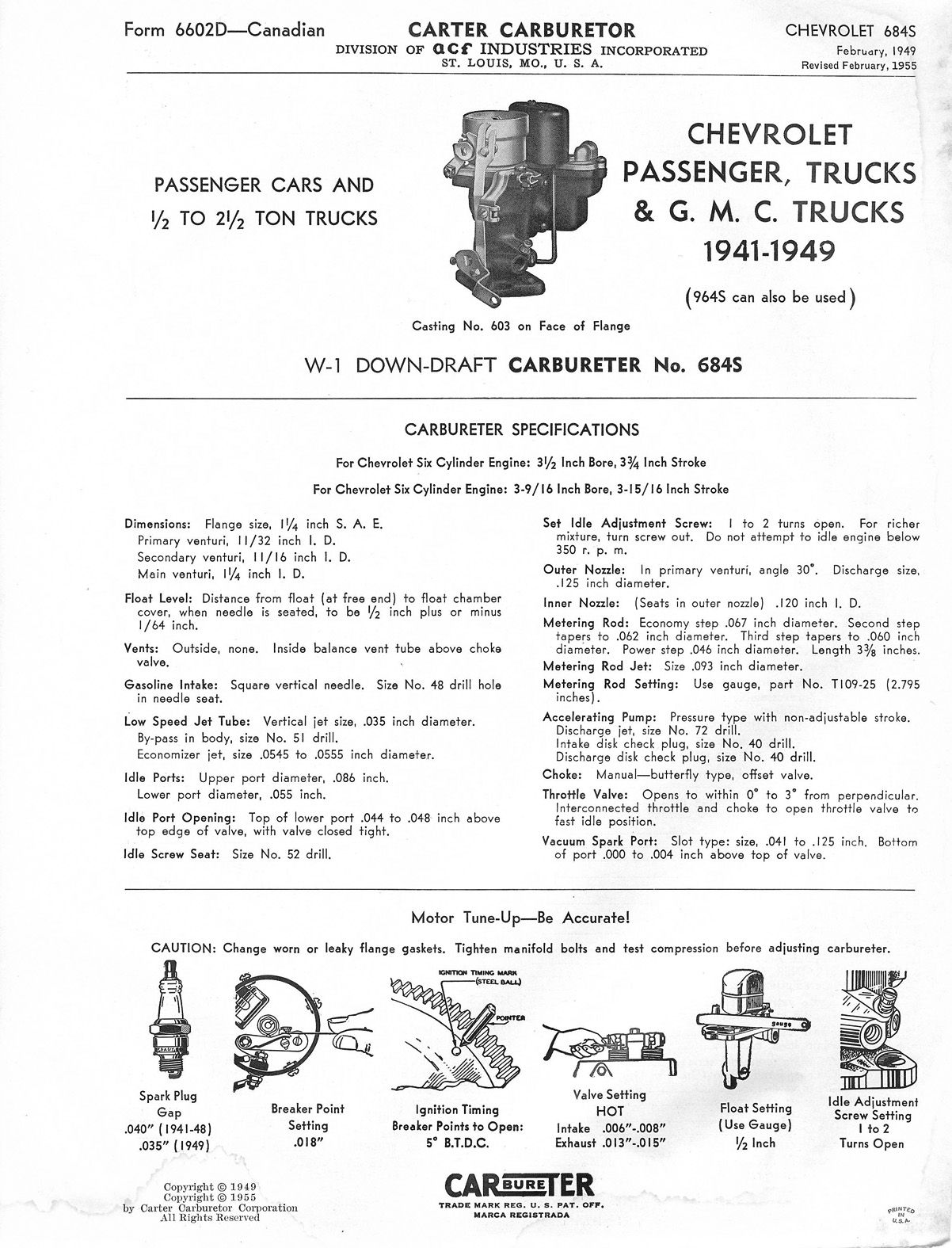

1941-1949 Chevrolet and GMC Carter W-1 No. 684S Specifications - page 1

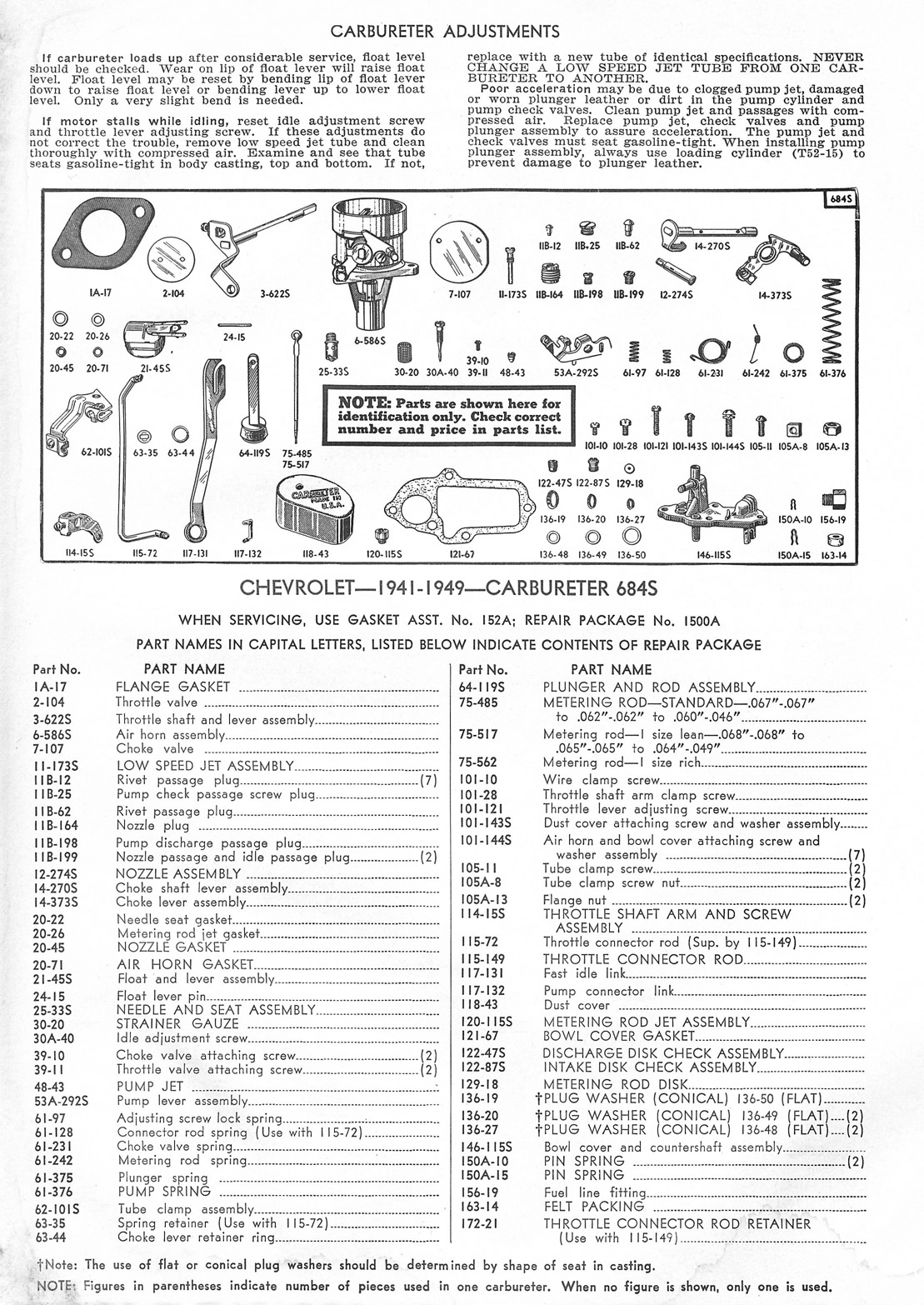

1941-1949 Chevrolet and GMC Carter W-1 No. 684S Specifications - page 2
