Wiring diagrams for 1957-1965 American cars
These diagrams are from the 1965 edition of the 'National Automotive Service' wiring diagrams book. This book contains the wiring diagrams for all American cars from 57-65.

The diagrams below have been scanned so as to ensure maximum detail (big files!).

Back to the Old Car Manual Project

contact us

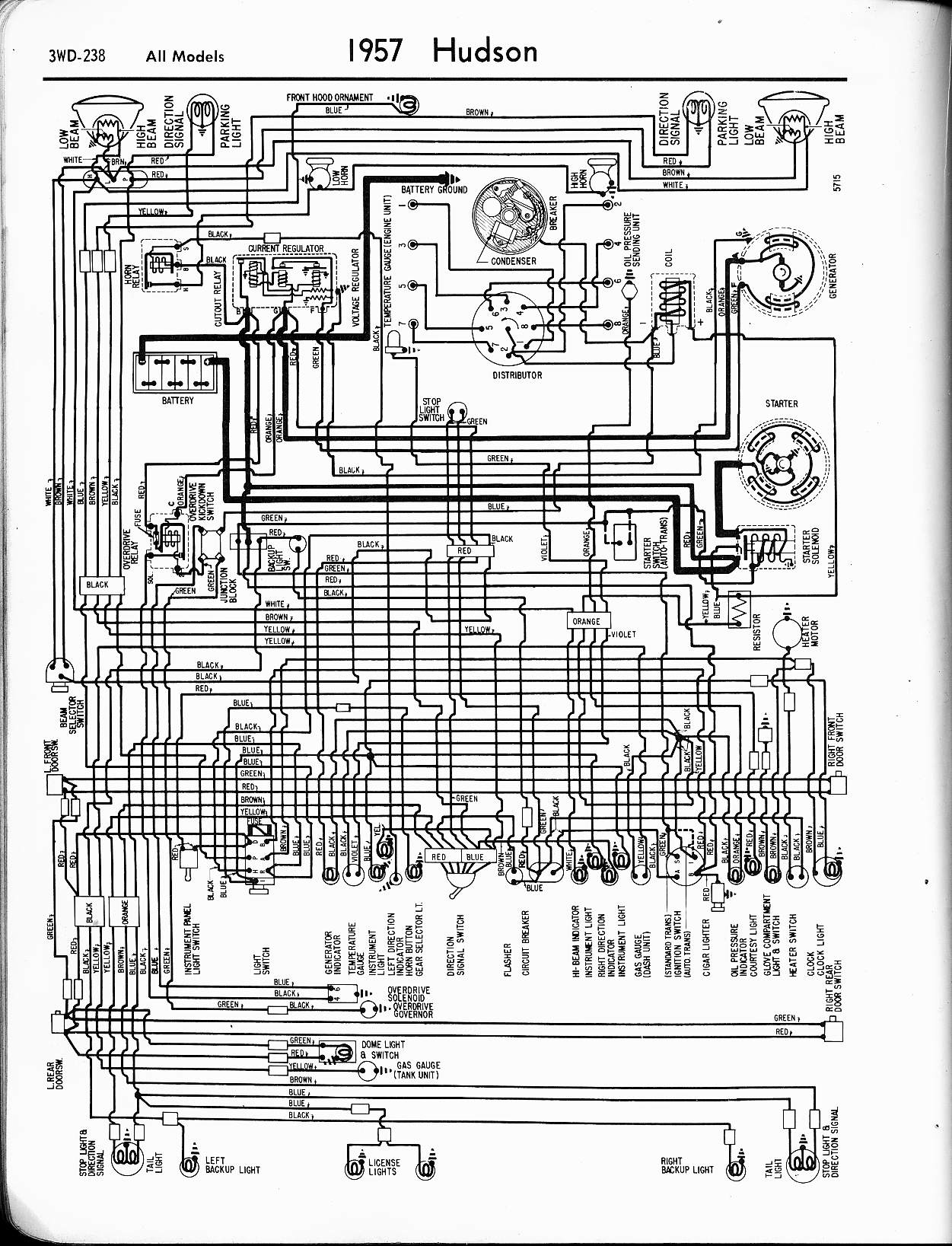

1957 Hudson wiring diagram

1957 Hudson wiring diagram
