Wiring diagrams for 1957-1965 Chevrolet
These diagrams are from the 1965 edition of the 'National Automotive Service' wiring diagrams book. This book contains the wiring diagrams for all American cars from 57-65.

The diagrams below have been scanned so as to ensure maximum detail (big files!).

Back to the Old Car Manual Project

CHEVROLET

1957 6 Cyl. One-Fifty, Two-Ten, Belair

1957 V8 One-Fifty, Two-Ten, Belair

1957 Corvette

1958 6 Cyl. Delray, Biscayne, Belair

1958 V8 Delray, Biscayne, Belair

1958 Corvette

1959 6 Cyl. Biscayne, Belair, Impala.

1959 V8 Biscayne, Belair, Impala.

1959 Corvette

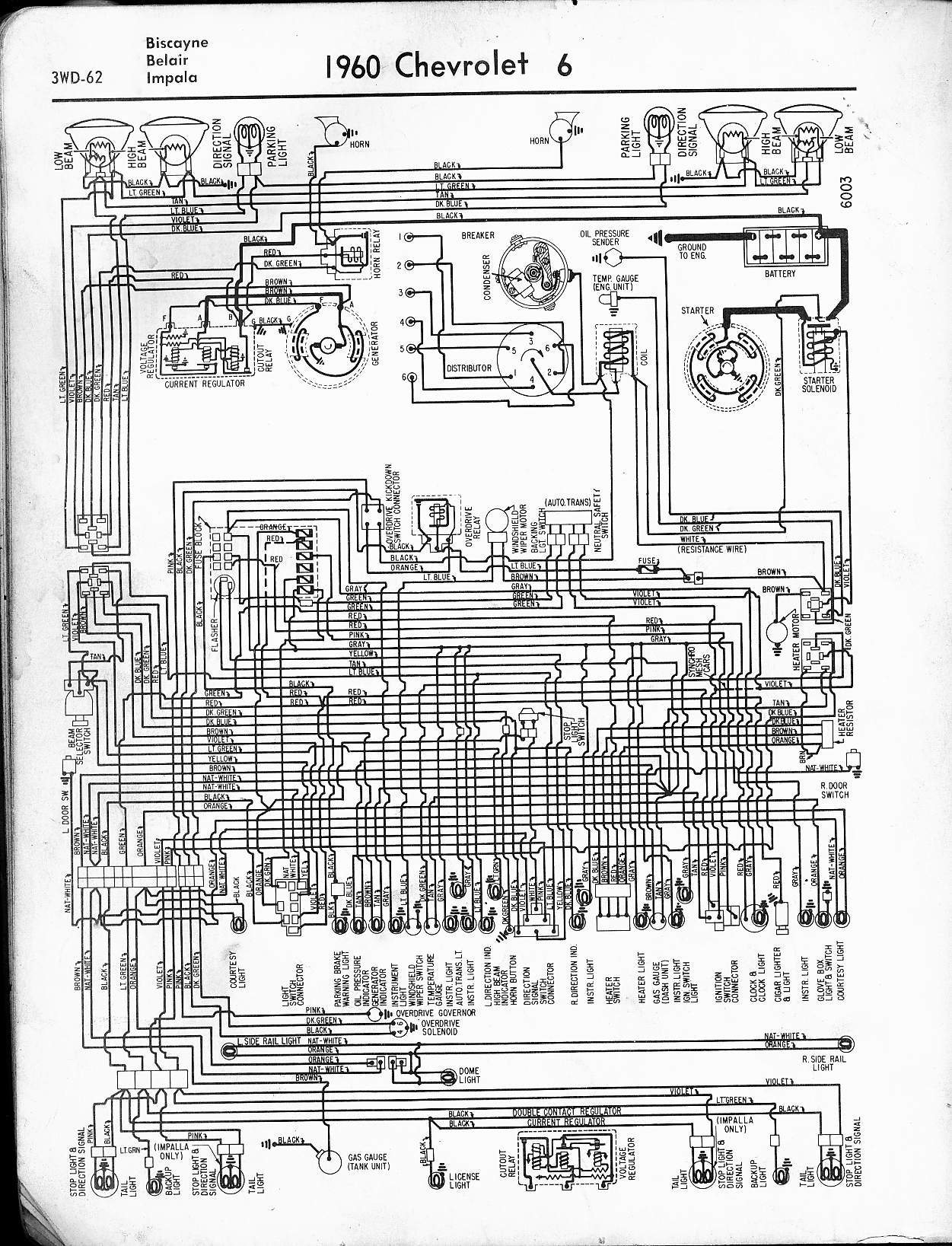

1960 6 Cyl. Biscayne, Belair, Impala

1960 V8 Biscayne, Belair, Impala.

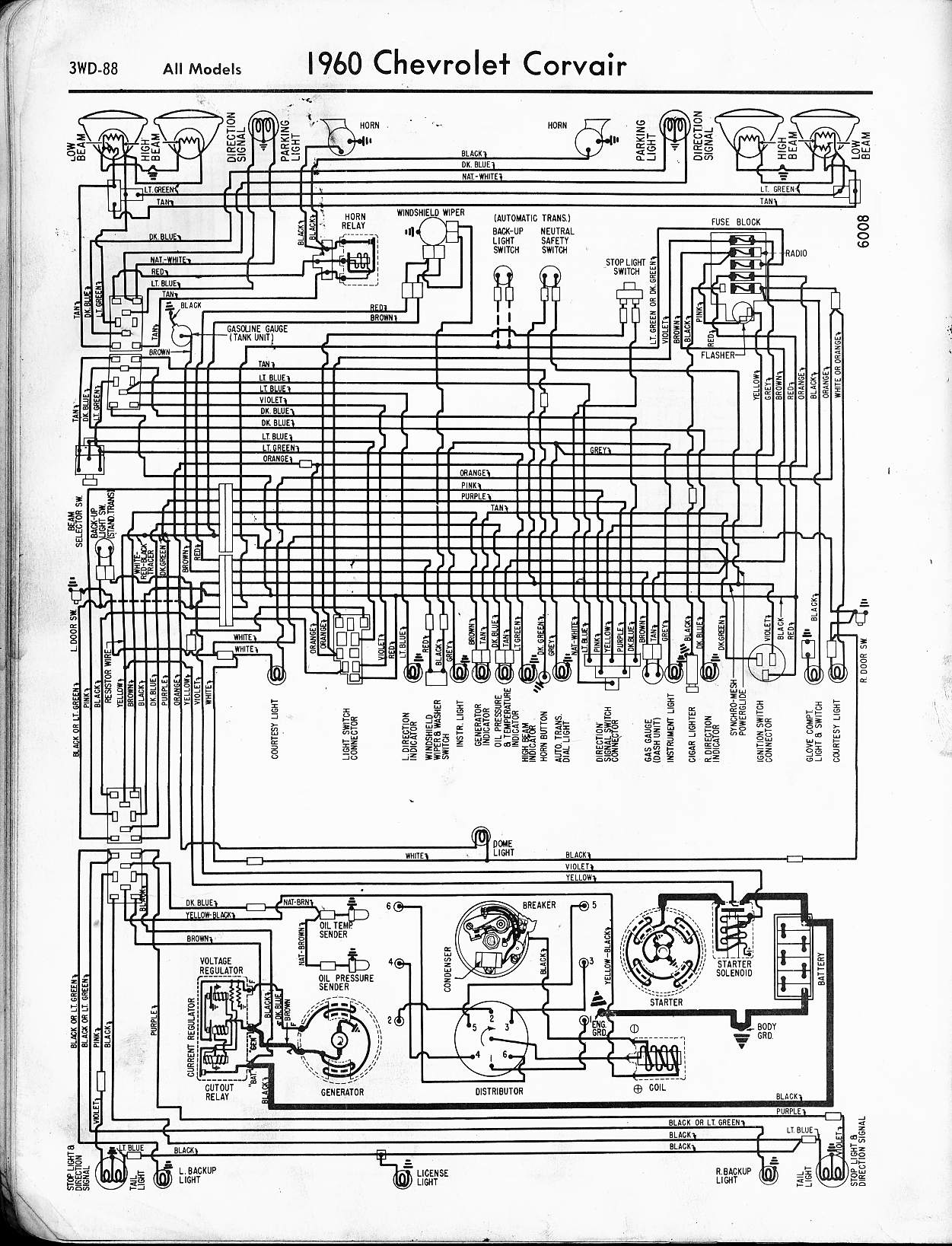

1960 Corvair

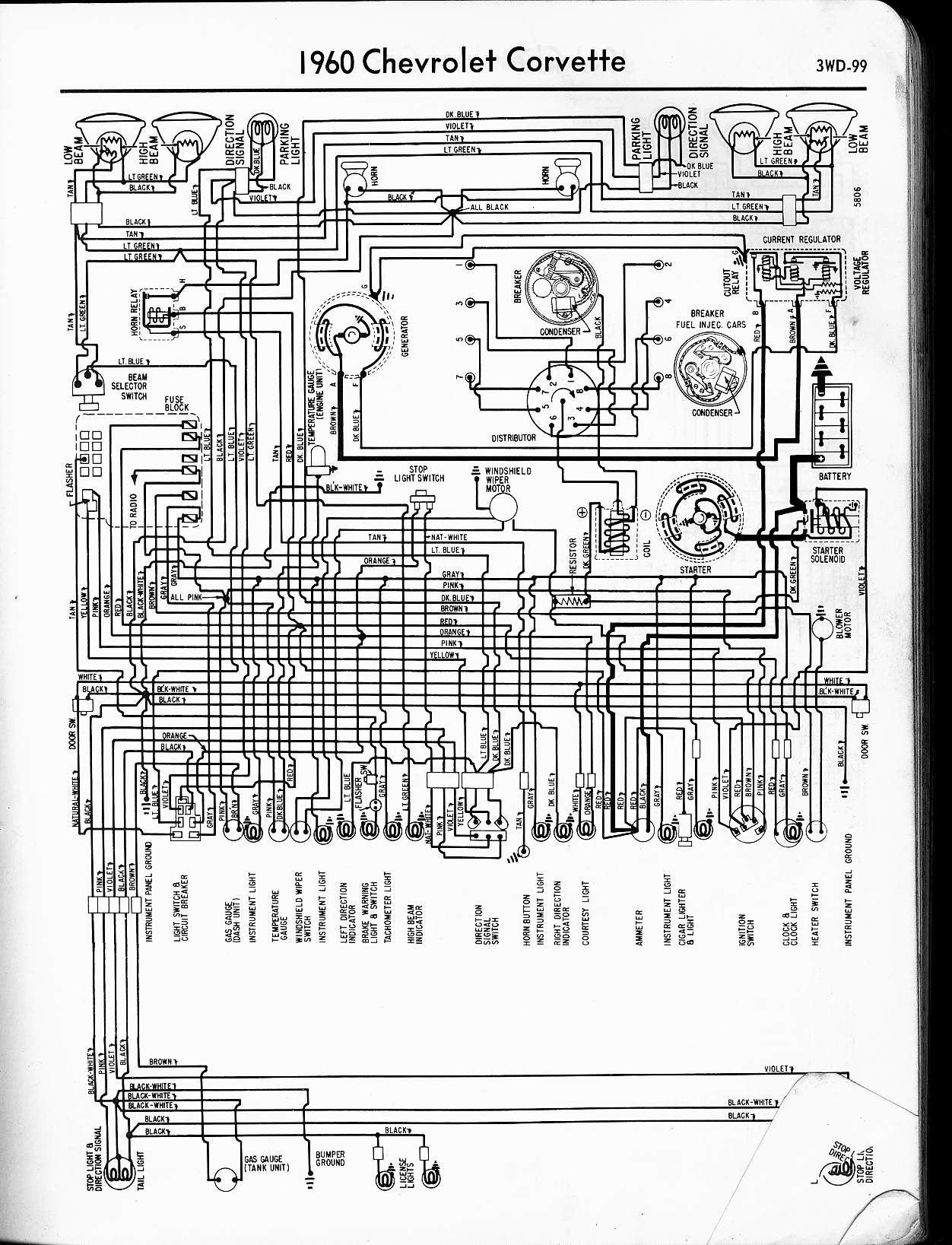

1960 Corvette

1961 6 Cyl. Biscayne, Belair, Impala

1961 V8 Biscayne, Belair, Impala

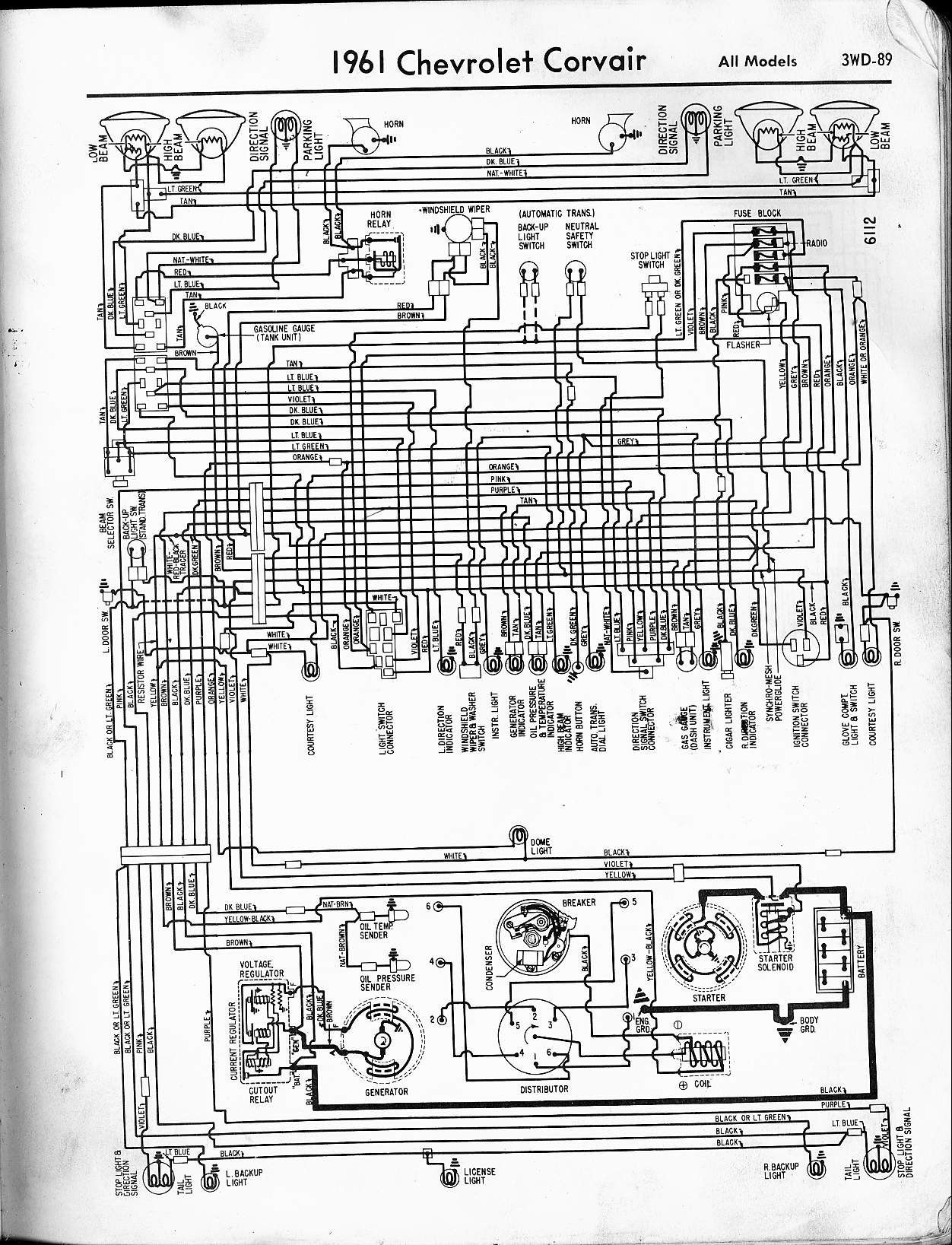

1961 Corvair

1961 Corvette

1962 Chevy II (All Models)

1962 6 Cyl. Biscayne, Belair, Impala left half
1962 6 Cyl. Biscayne, Belair, Impala right half

1962 V8 Biscayne, Belair, Impala left
1962 V8 Biscayne, Belair, Impala right


1962 Corvair
1962 Corvette
1963 Chevy II (All Models)
1963 6 Cyl. Biscayne, Belair, Impala left 1963 6 Cyl. Biscayne, Belair, Impala right
1963 V8 Biscayne, Belair, Impala left 1963 V8 Biscayne, Belair, Impala right
1963 Corvair
1963 Corvette left 1963 Corvette right

1964 Chevy II (All Models) left 1964 Chevy II (All Models) right
1964 6 & V8 Biscayne, Belair, Impala 1964 6 & V8 Biscayne, Belair, Impala 1964 Chevelle left 1964 Chevelle right
1964 Corvair Std., Deluxe, Monza, Spyder
1964 Corvair Greenbrier
1964 Corvette Left 1964 Corvette Right

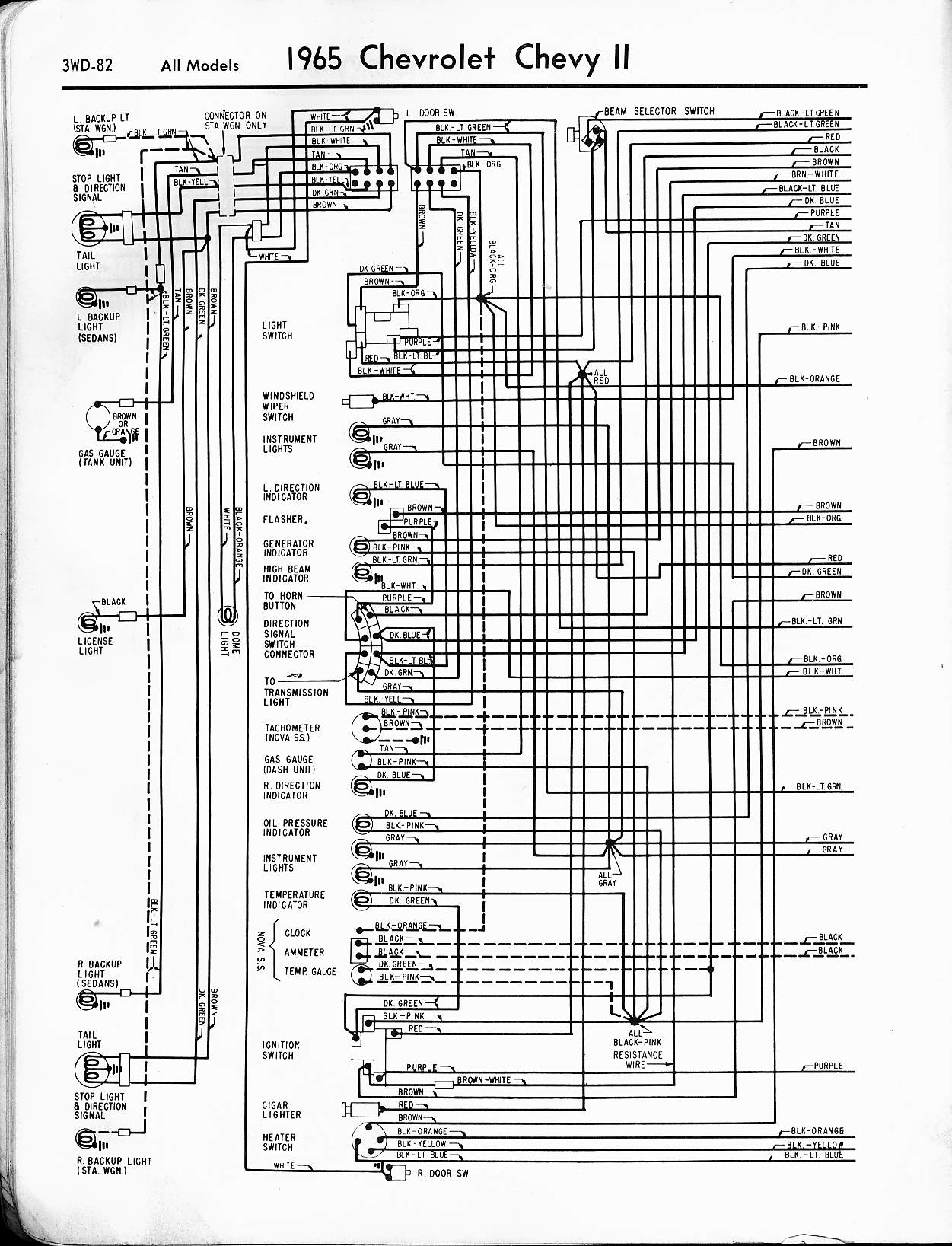

1965 Chevy II. (All Models) left 1965 Chevy II. (All Models) right
1965 6 & V8 Biscayne, Bel Air, Impala 1965 6 & V8 Biscayne, Bel Air, Impala
1965 Corvair 500, Monza, Corsa left 1965 Corvair 500, Monza, Corsa right
1965 Corvair Greenbrier

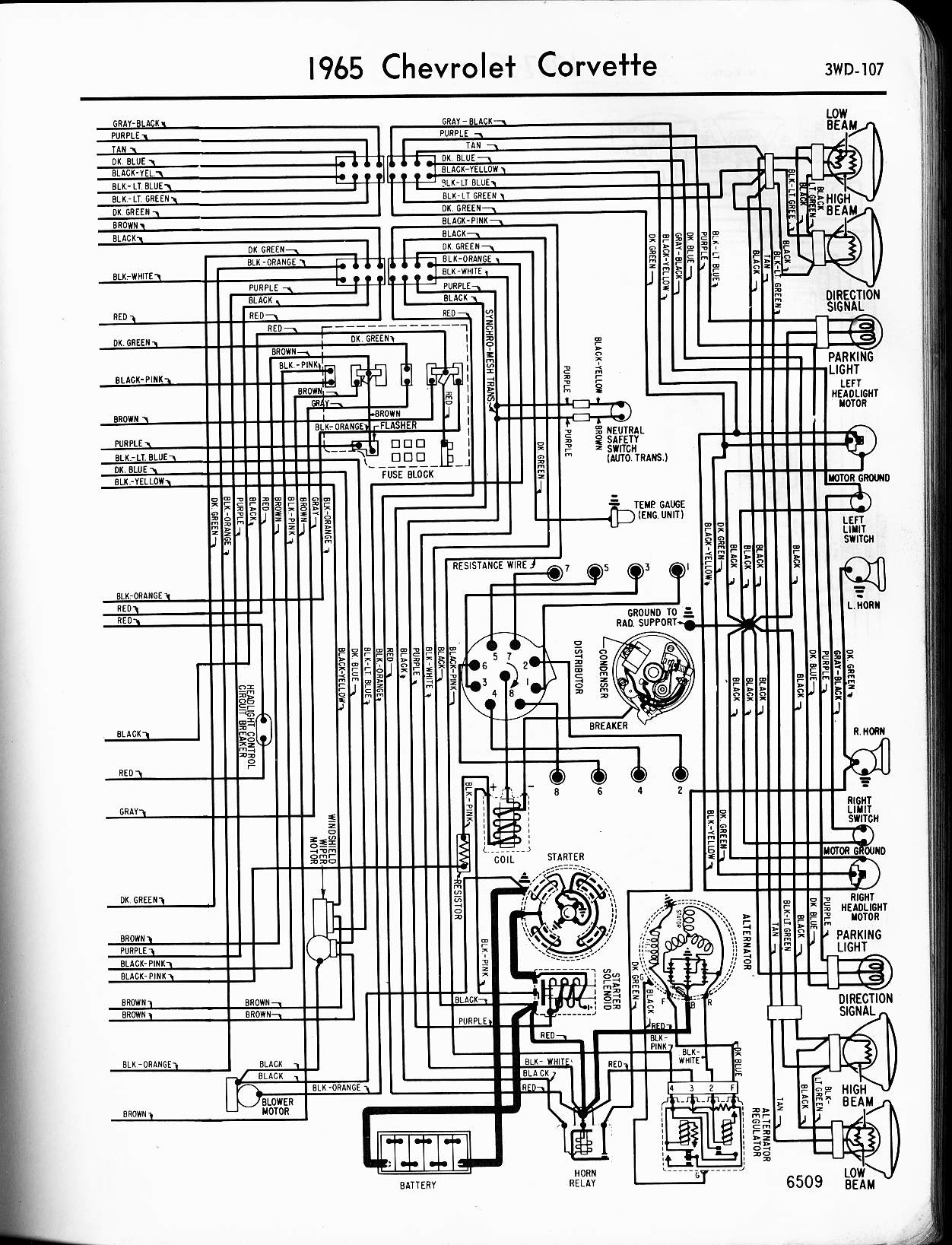

1965 Corvette Left 1965 Corvette Right
