Index of wiring diagrams

1956 Plymouth V8

1957 Plymouth 6

1957 Plymouth V8

1958 Plymouth 6

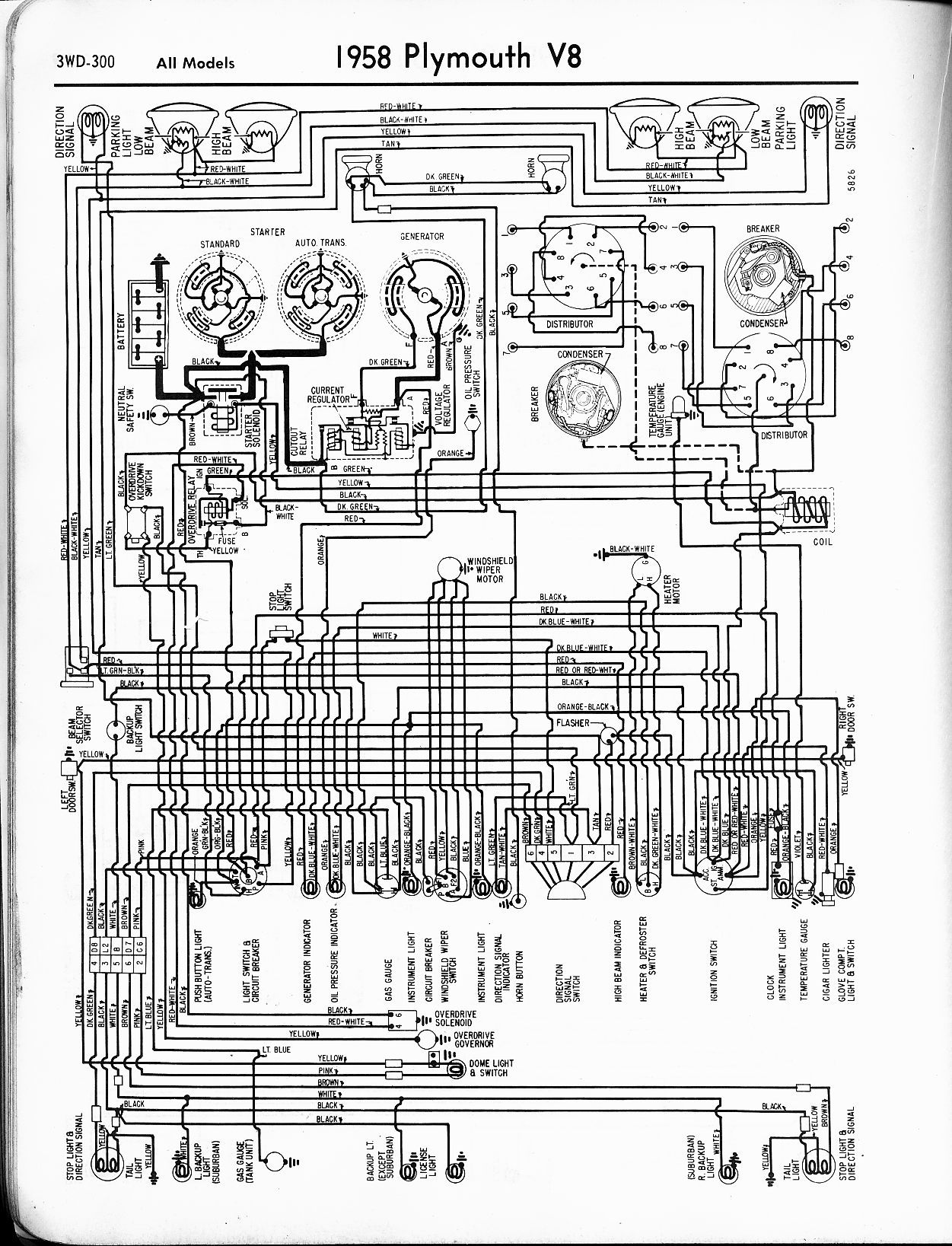

1958 Plymouth V8

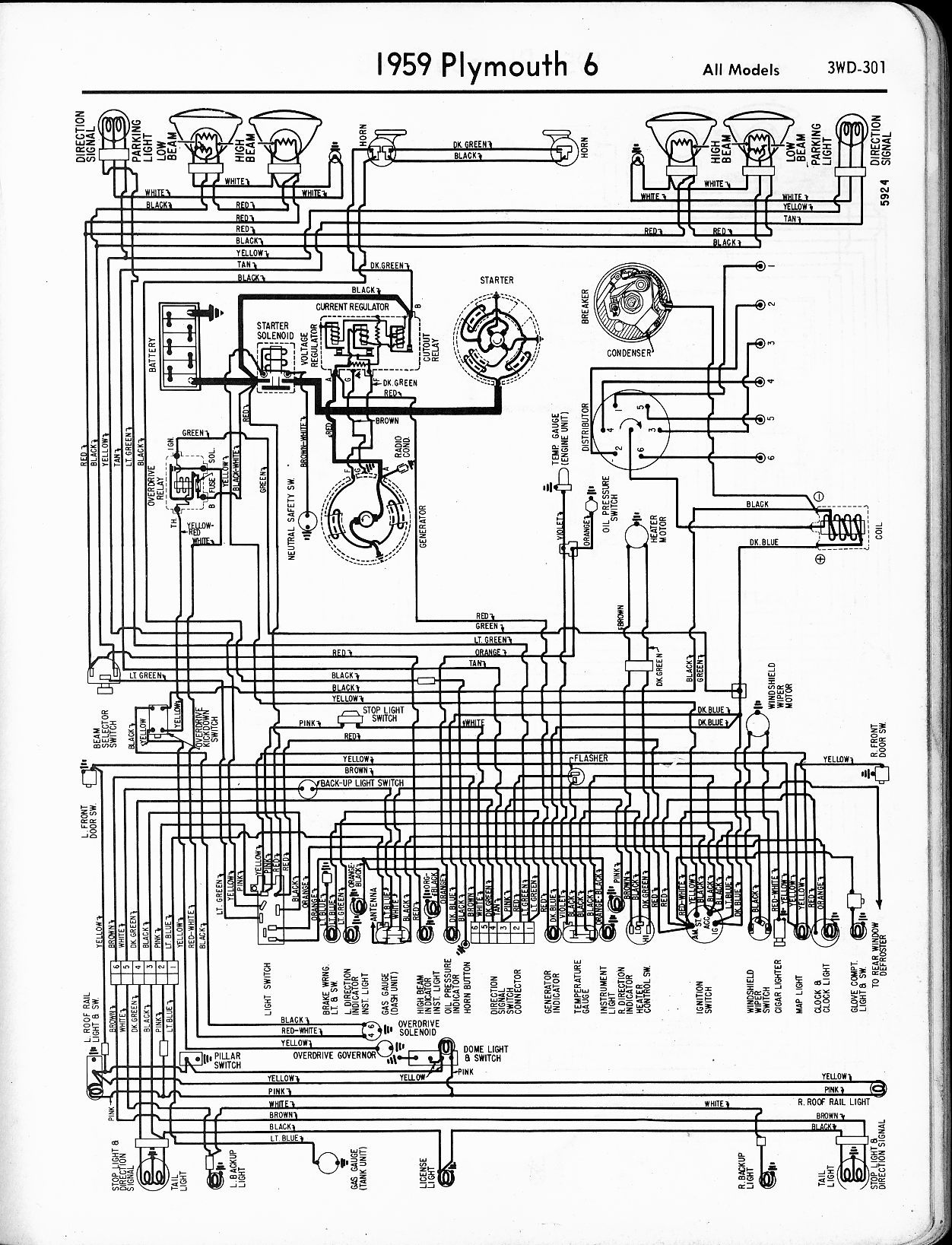

1959 Plymouth 6

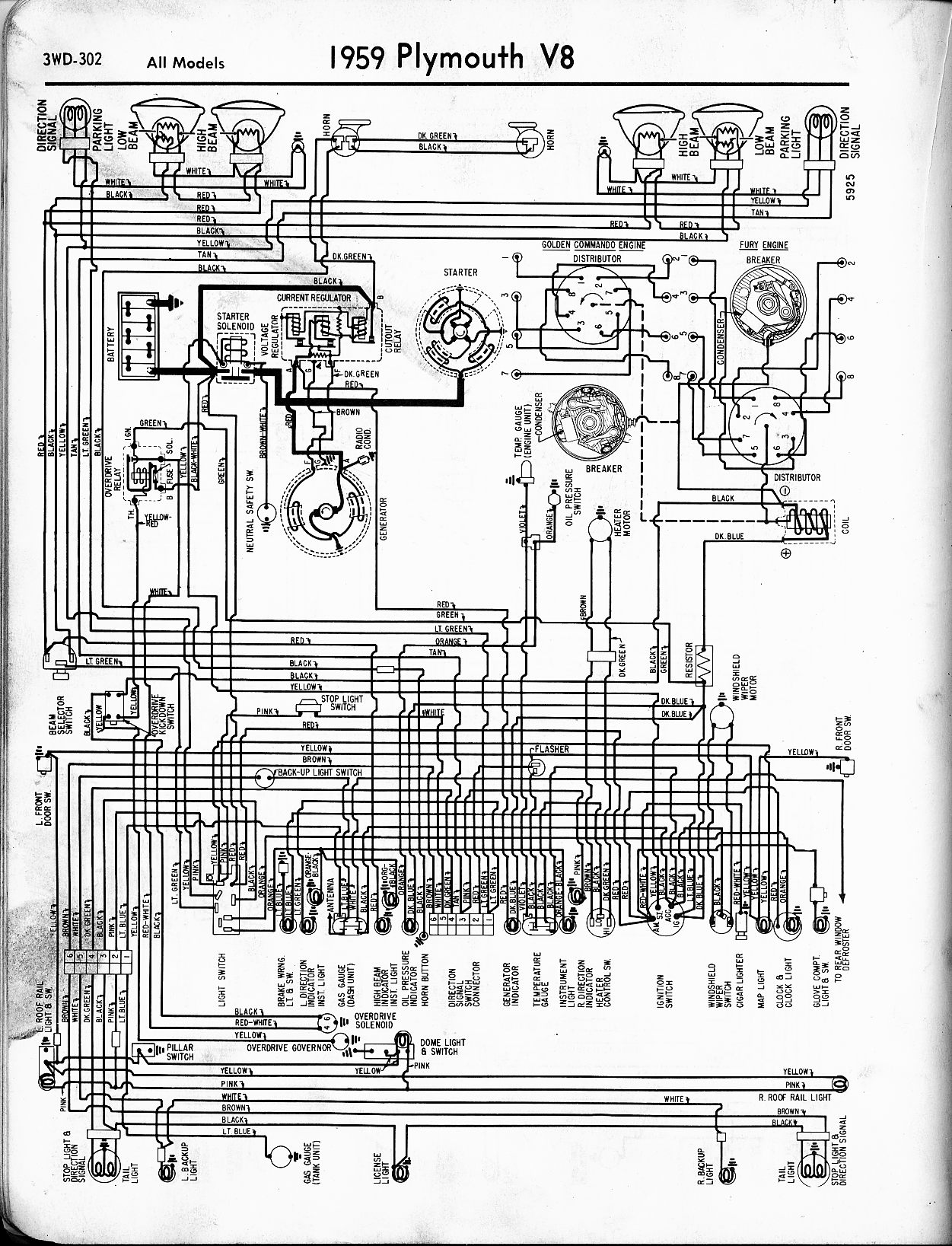

1959 Plymouth V8

1960 Plymouth 6 - Valiant

1960 Plymouth 6 - Savoy, Belvedere, Fury

1960 Plymouth V8 - Savoy, Belvedere, Fury

1961 Plymouth 6 - Valiant

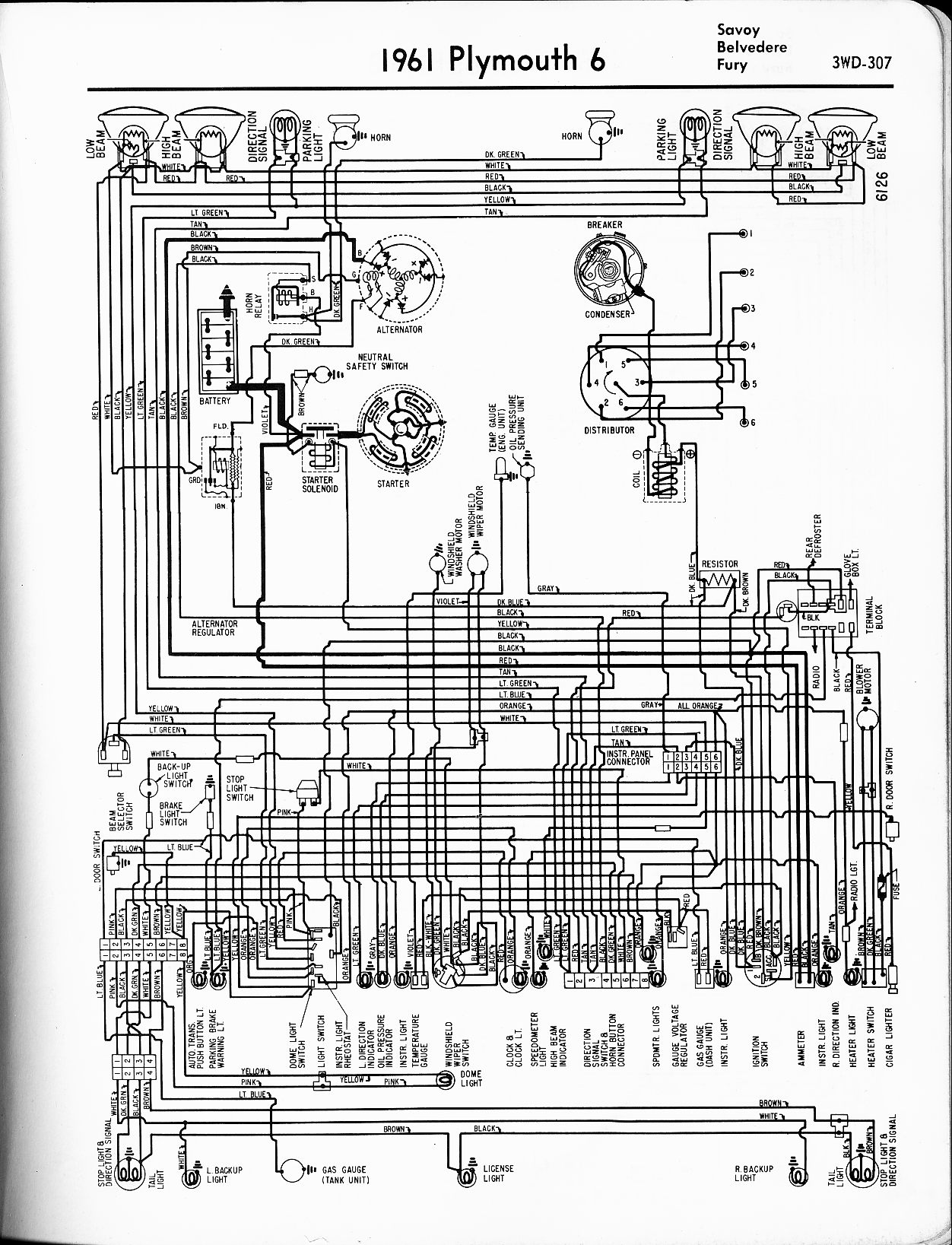

1961 Plymouth 6 - Savoy, Belvedere, Fury

1961 Plymouth V8 - Savoy, Belvedere, Fury

1962 Plymouth 6 - Valiant

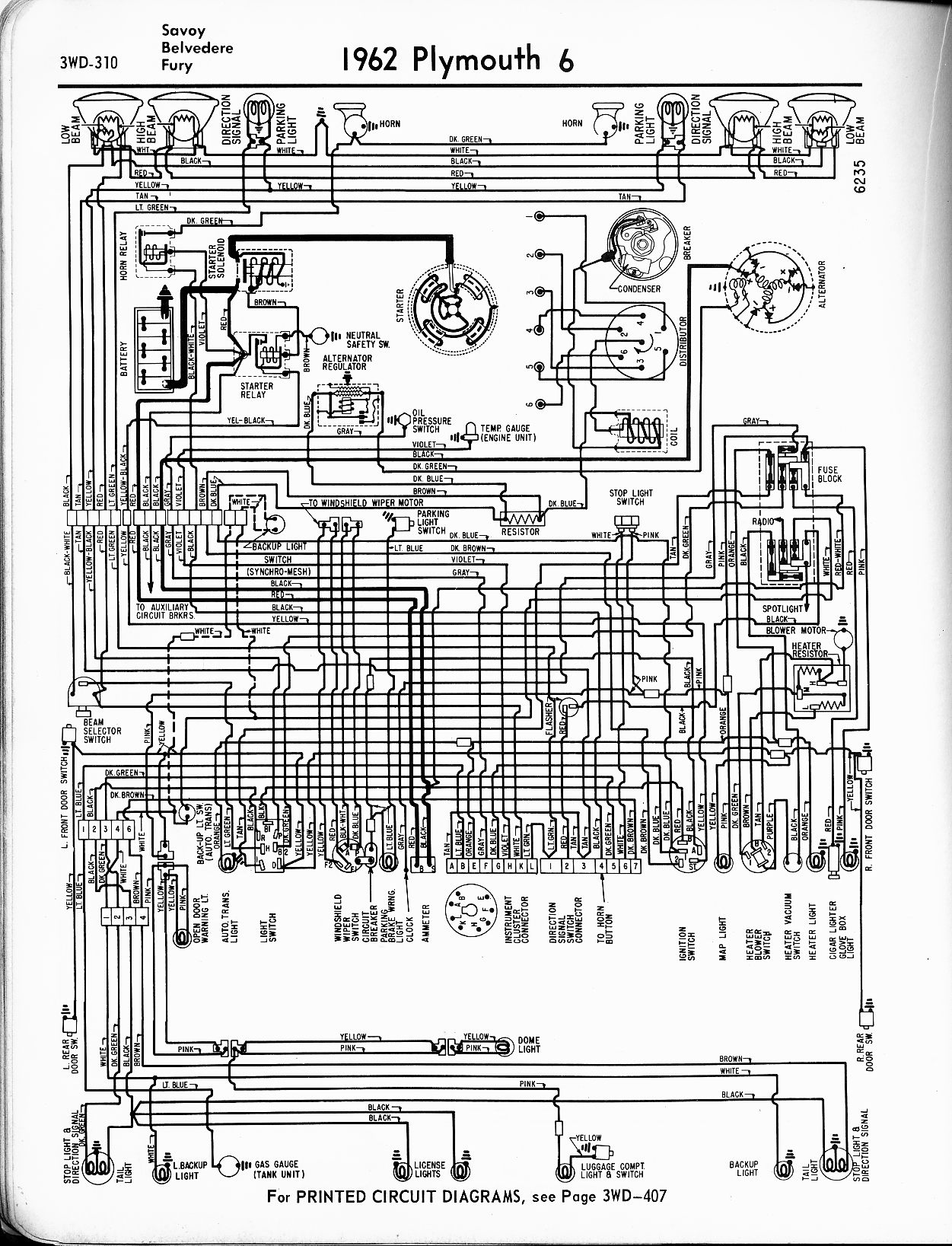

1962 Plymouth 6 - Savoy, Belvedere, Fury

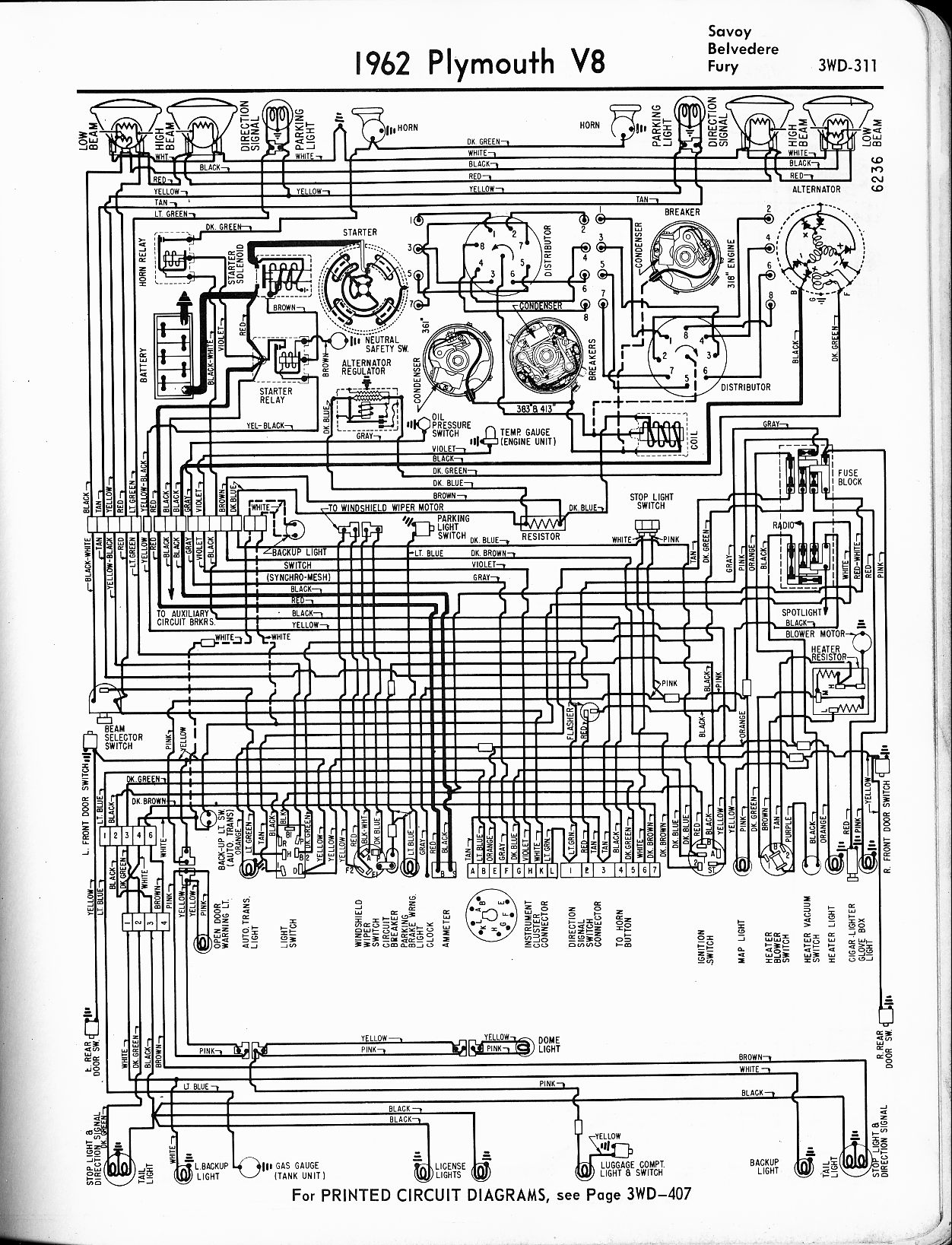

1962 Plymouth V8 - Savoy, Belvedere, Fury

1963 Plymouth 6 - Valiant, left page

1963 Plymouth 6 - Valiant right page

1963 Plymouth 6 - Savoy, Belvedere, Fury, left page

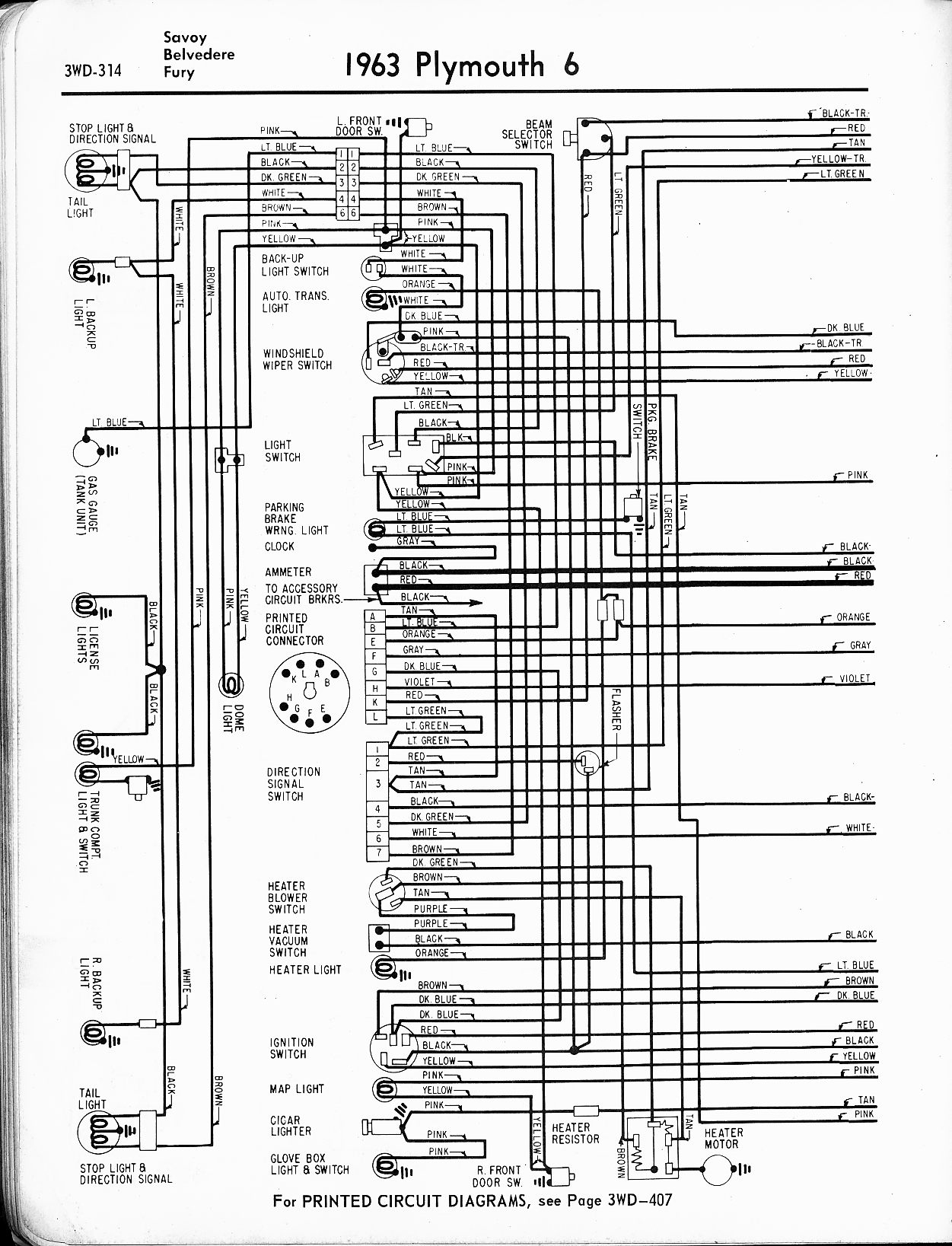

1963 Plymouth 6 - Savoy, Belvedere, Fury, right page

1963 Plymouth V8 - Savoy, Belvedere, Fury, left page
1963 Plymouth V8 - Savoy, Belvedere, Fury, right page

1964 Plymouth 6 & V8 - Valiant, left page
1964 Plymouth 6 & V8 - Valiant, right page

1964 Plymouth 6 & V8 - Savoy, Belvedere, Fury, left page
1964 Plymouth 6 & V8 - Savoy, Belvedere, Fury, right page

1965 Plymouth 6 & V8 -Valiant, Barracuda, left page
1965 Plymouth 6 & V8 -Valiant, Barracuda, right page

1965 Plymouth 6 & V8 -Belvedere, left page
1965 Plymouth 6 & V8 -Belvedere, right page

1965 Plymouth 6 & V8 -Fury, left page
1965 Plymouth 6 & V8 -Fury, right page
