Stromberg 97 Carburetor Information

Jon Menk writes:
I picked up a reprint of what appears to be a
Stromberg 97 carb service bulletin. It's 2 pages and full of very valuable information showing drill (wire & fractional) sizes that cover things such as gaugeing & jet sizes.

I have 3 97's on my 27 Ford roadster!

I bought it years ago at the LA Roadster
show.

Click on the images below for full-size versions:

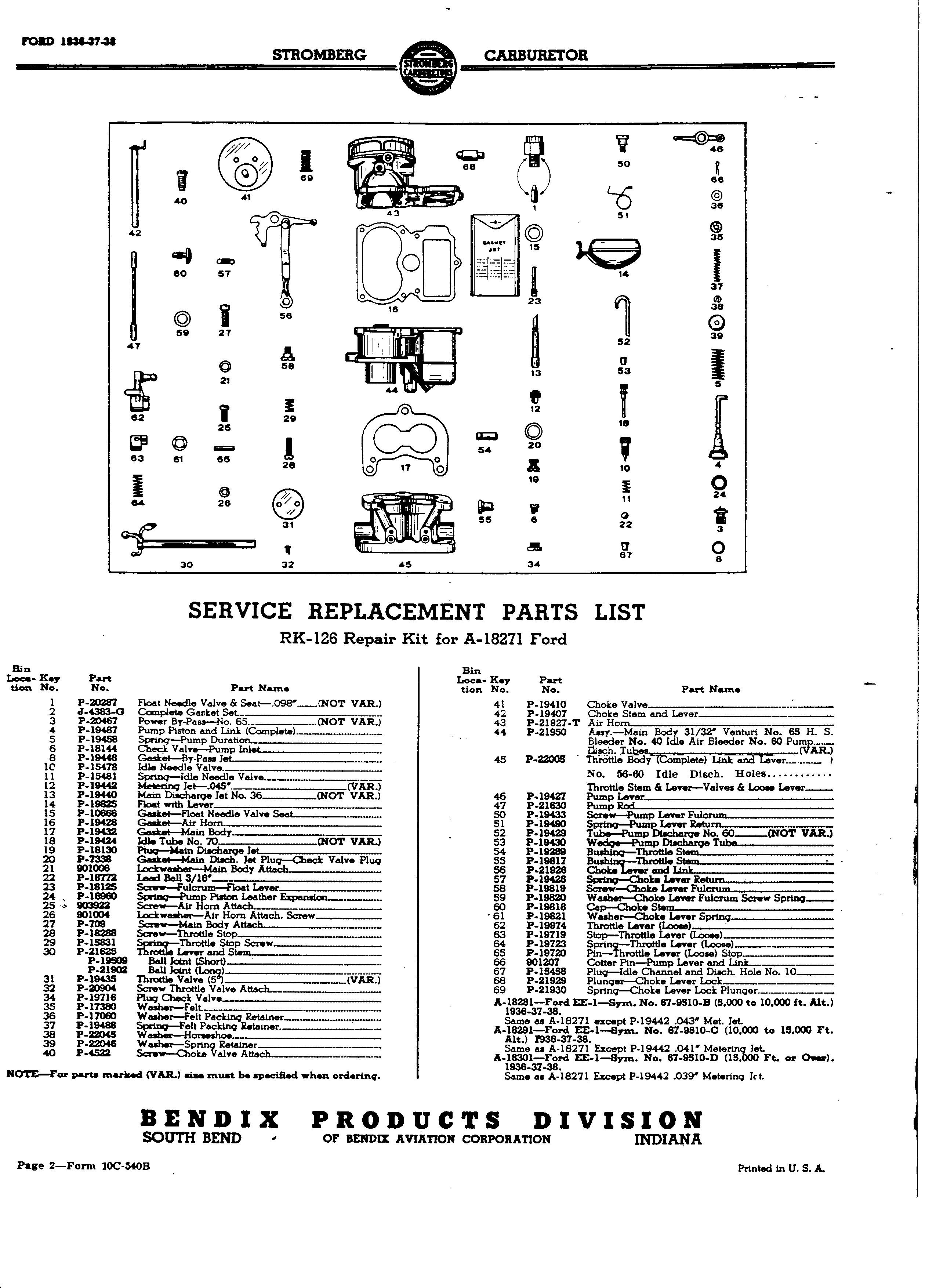

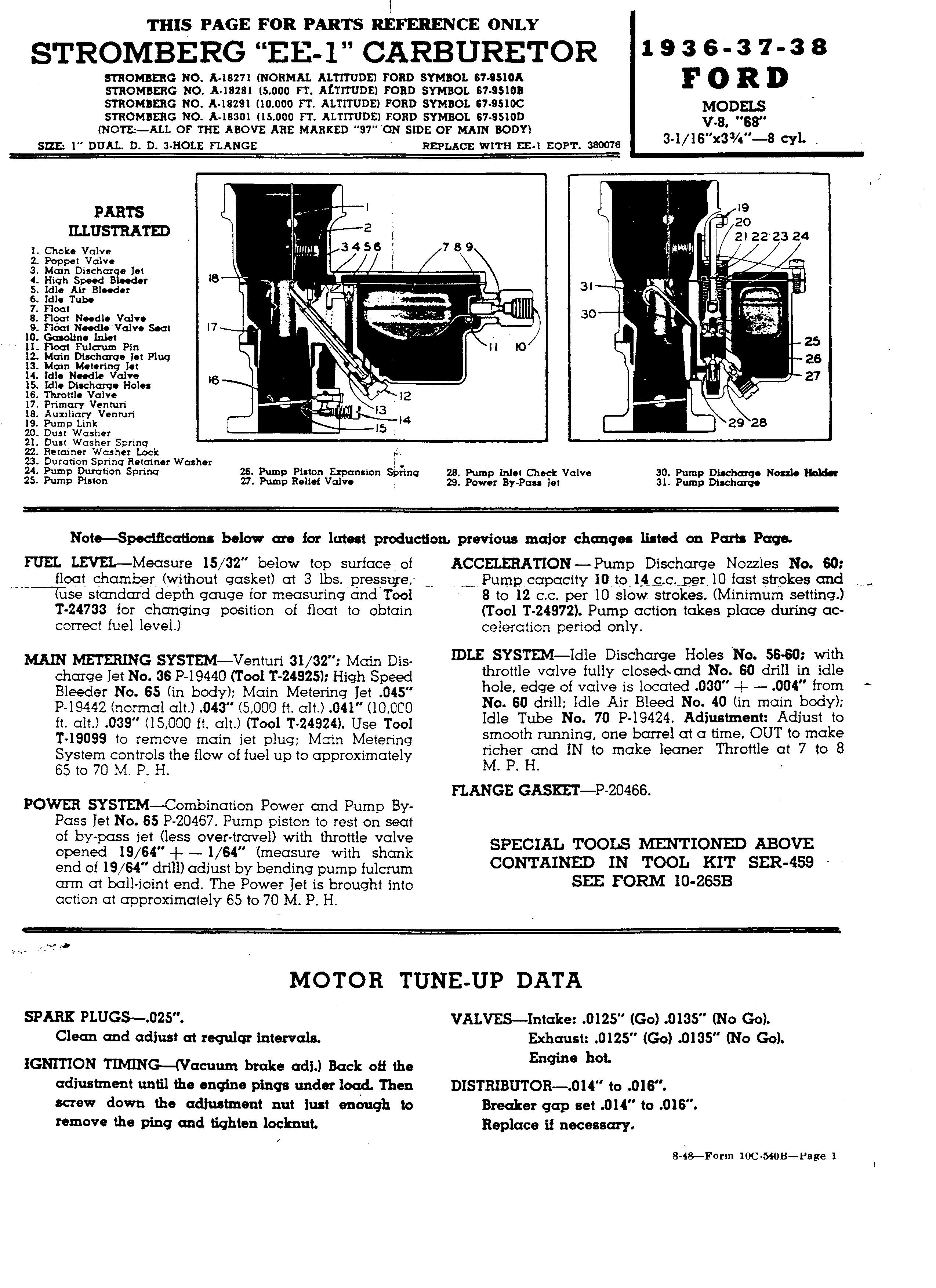

Stromberg EE-1 service info

Stromberg EE-1 service info
