clockwise to lower the fuel level and counter clockwise to raise the fuel level. 1/6 turn of the adjusting nut equals approximately 1/16 inches in fuel level.

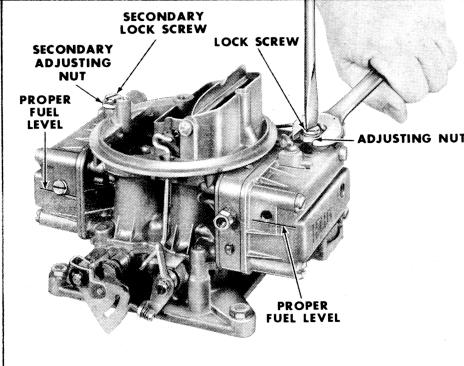

Figure 44. Adjusting Fuel Level

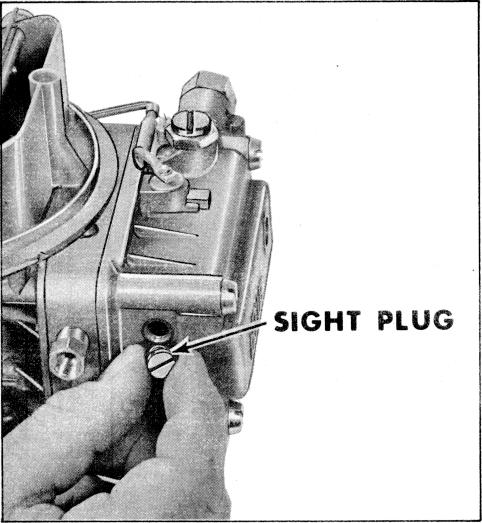

Figure 42. Removing Sight Plug

(7) After adjustment tighten the lock

screw.

(8)   Operate the engine until the fuel level is stabilized then re-check the level at the sight plug.

(9) If necessary, repeat the adjustment until the proper fuel level is attained.

(10) Replace the sight plug.

(11) This procedure should be

used on

primary or secondary fuel bowl if the carburetor has a secondary system.

F. FUEL LEVEL ADJUSTMENT -For models without an external fuel level adjustment.

(1) Some 2300 and 4150 models have an access on the end of the fuel bowl and a sight plug on the side opposite the fuel inlet. Remove the sight plug and check the fuel level at the sight plug port with the engine running. The fuel should be on line with the threads at the bottom of the sight plug port. If the level is not correct, STOP THE ENGINE. Remove the access hole plug, insert a screw driver in the hole and bend the float tab up or down, to raise or lower the float. Recheck the adjustment .

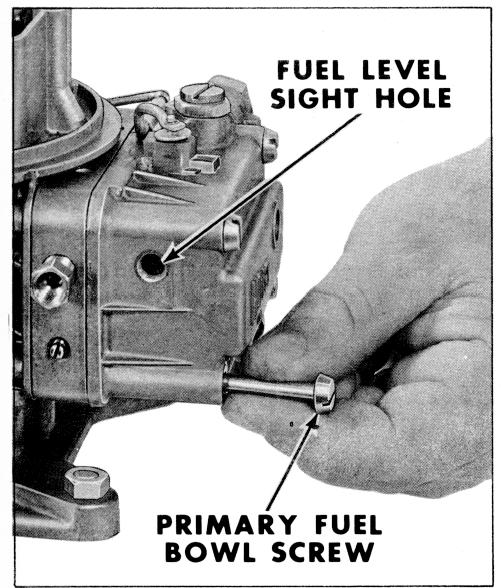

Figure 43. Removing Fuel Bowl Lower Screw

(5) With the car on a level surface and the engine running, the fuel level should be on line with the threads at the bottom of sight plug port. (Plus or minus 1/32 inch tolerance.)

(2) On models without an access hole, with a sight plug, check the fuel level at the sight plug port. To re-set the level,remove the fuel bowl and check the level with the correct dry float gauge. A change of 1/16 inch of the dry float setting will alter the fuel level 1/8 inch.

(6) To correct the fuel level, loosen the lock screw (Figure 44) and turn the adjusting nut
