    Internal Vacuum Type   Governor

  governor by the external throttle lever and the
return spring in the accelerator pedal linkage
closes the throttle plates to bring the engine to
any desired lower speed.

  Although the entire governor system is
described, only the throttle actuating mechanism
on the carburetor is included in the overhaul
procedure presented in this manual. This portion
of the governor can be cleaned and serviced
readily, also the governor rotor can be serviced
independently.


  (2) EXTERNAL VACUUM TYPE - The
external vacuum type governor operates on the
same principle as the internal vacuum type,
however, the source of vacuum is from an external
source other than the carburetor, usually from the
vacuum booster pump. A tee fitting and restriction
is used and are calibrated for the engine and gov
ernor. The same vacuum passages are in the
carburetor castings but blank jets are usedonthe

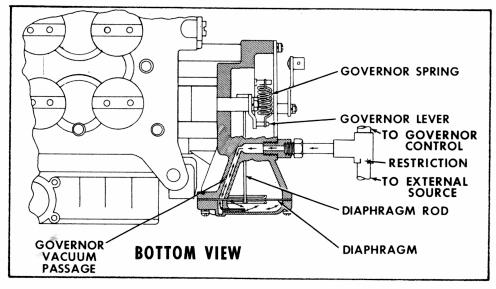

            External Vacuum Type Governor

    carburetors using external type governors.

    (3) MECHANICAL - A separate mechani
cal governor is linked to the carburetor bell
crank and through clutch linkage on the throttle
draft controls the throttle plates for engine
governing.
