1971 - 1980 Cadillac Wiring Diagrams

April 6, 2013 Kris Bulla has supplied some first class renditions of these difficult to find wiring diagrams. We're glad to share them with you here, online.

comments?

contributions?

back to tOCMP







About TOCMP

Some general information:

What is "the Old Car Manual Project"?

The idea is to scan manuals for old, vintage or antique American vehicles and their components and make them available on the web, for free.

Why are we doing this?


Why not? But really - one of the hardest parts of restoring or servicing old machines is getting decent technical information. Often, it's difficult, impossible or expensive to obtain. We think that this kind of information should be freely available, as a public resource for the preservation of our industrial history.

Who are we?


We are some Guys Who Like Old Iron. We can be contacted here.



Please consider supporting the Old Car Manual Project by making a donation or contributing materials.
Click here to find out more.

Advertisement
Shop manual pdf downloads
Cadillac Shop Manuals

71-80 Cadillac Wiring Diagram Index

click on the gifs below to view

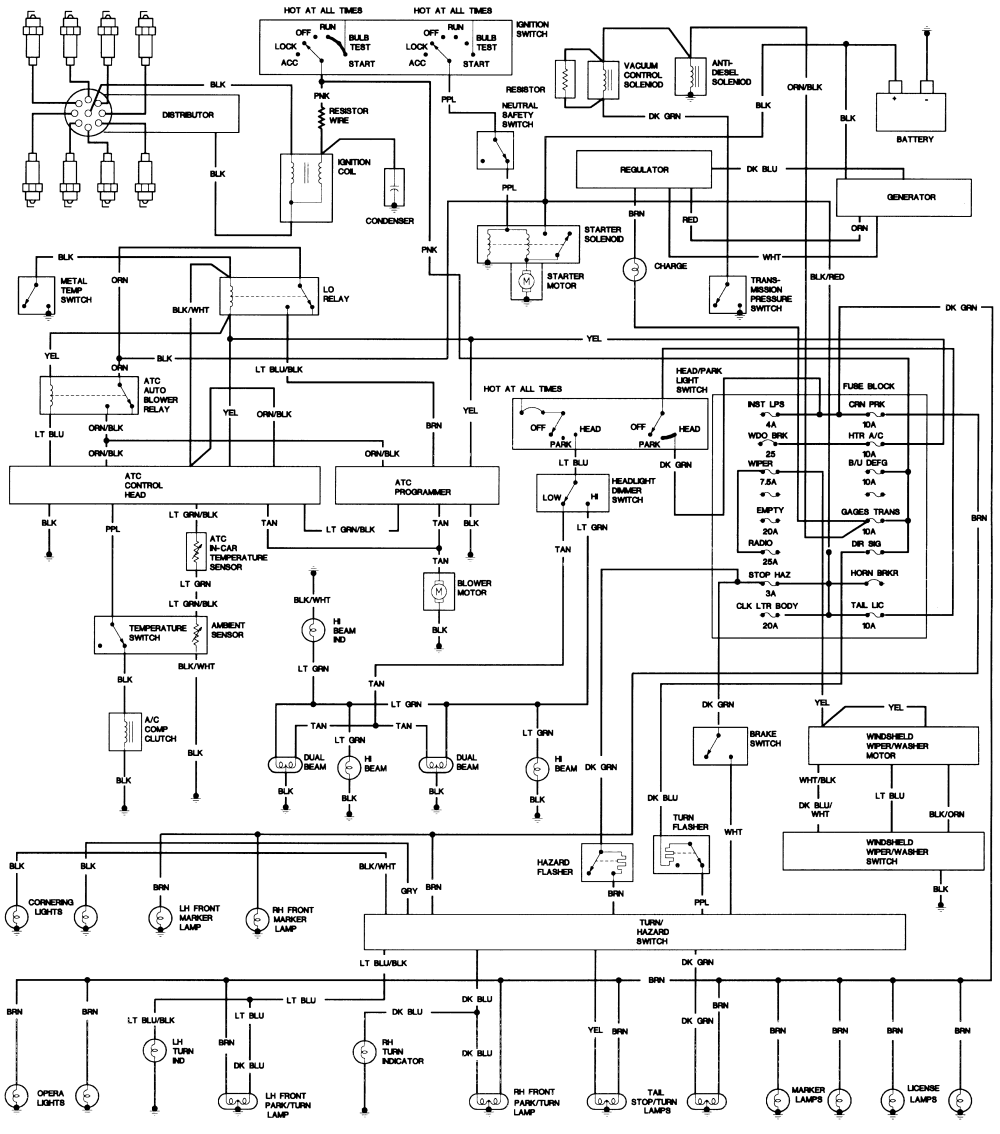

1971 - 1972 Cadillac DeVille

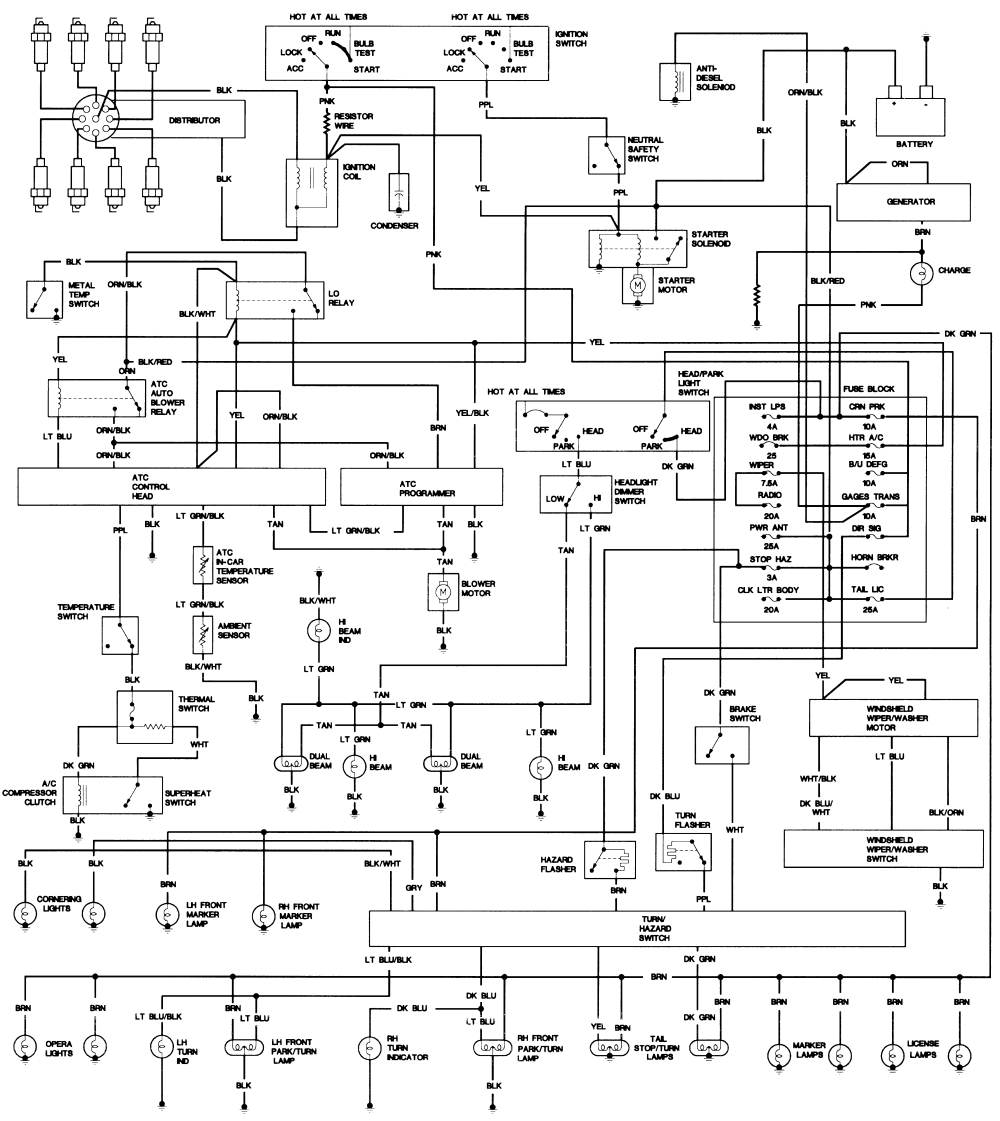

1973 Cadillac Deville

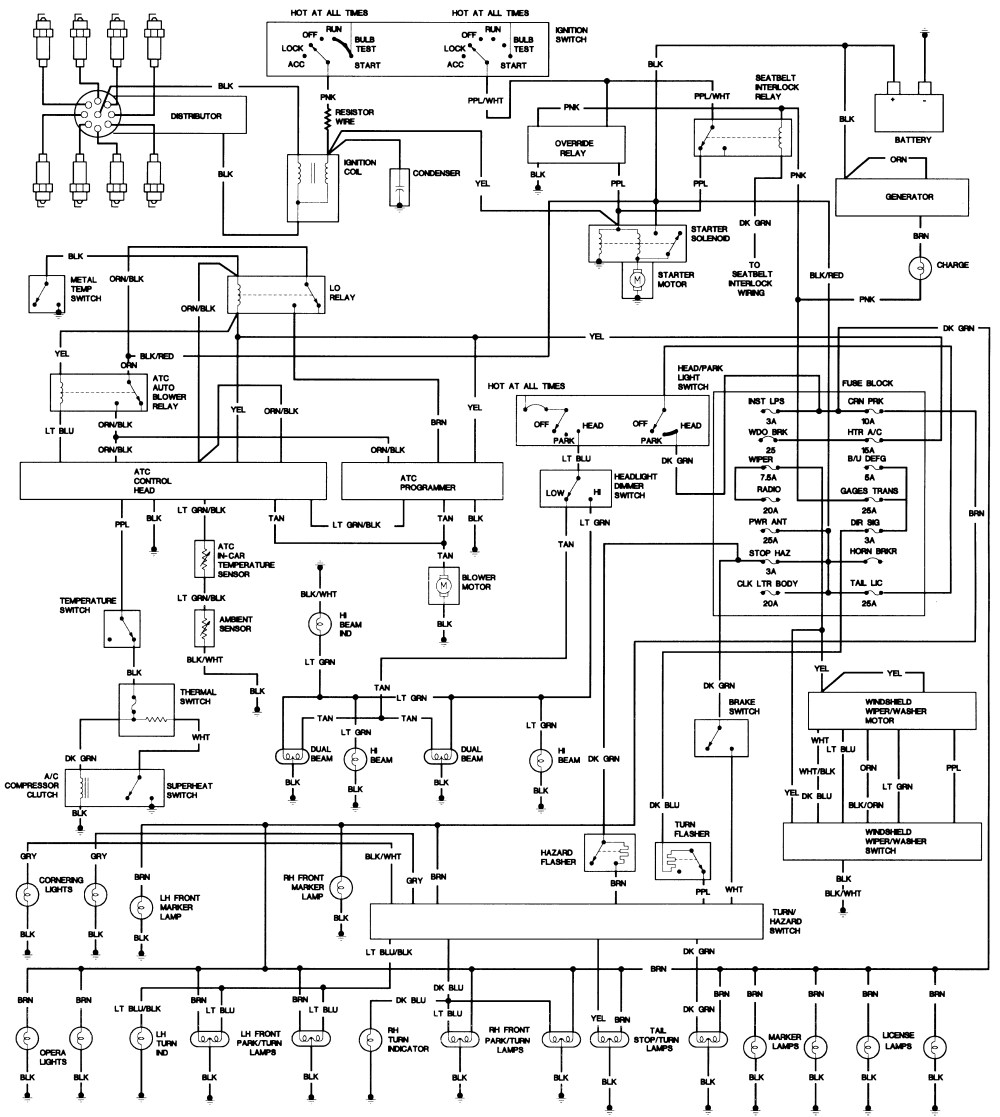

1974 Cadillac Deville

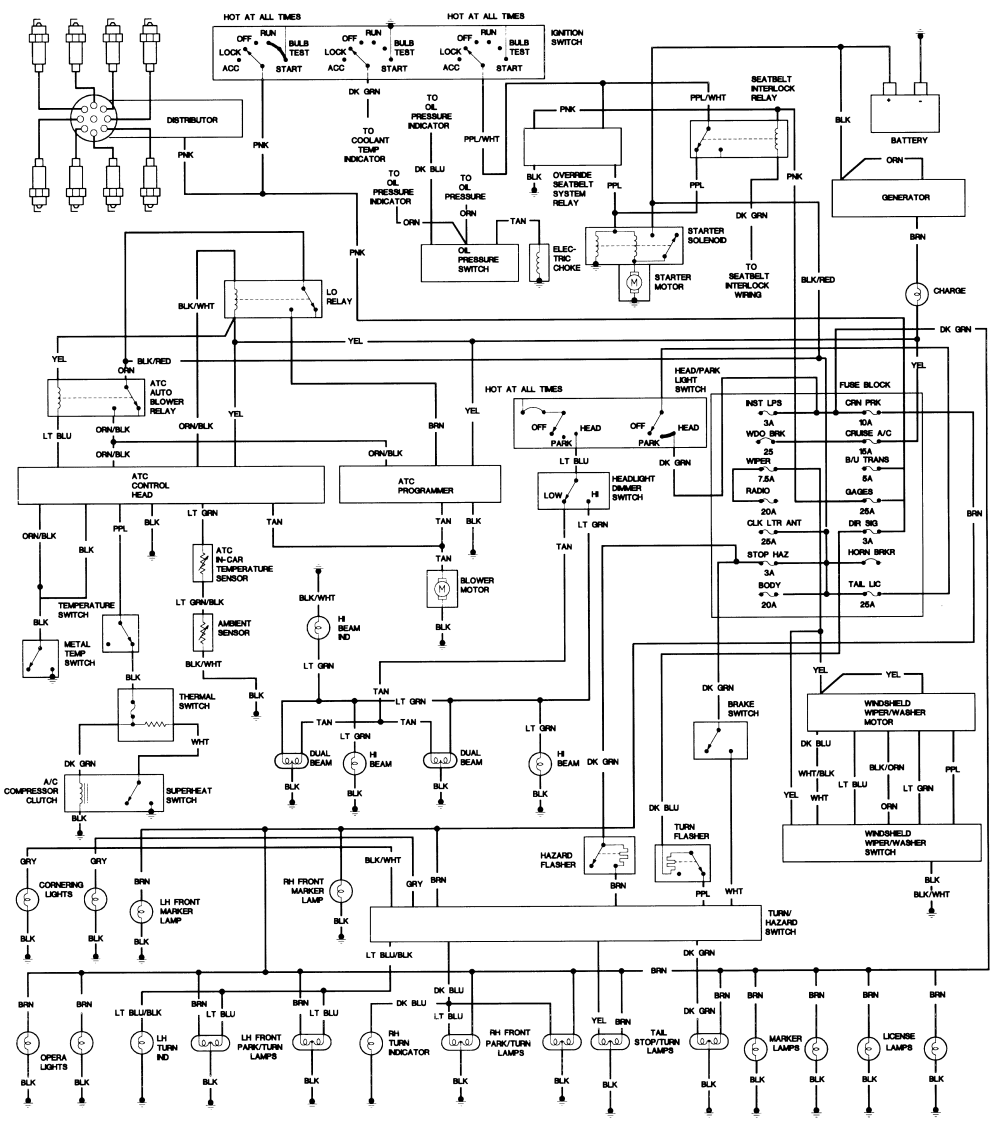

1975 Cadillac Deville

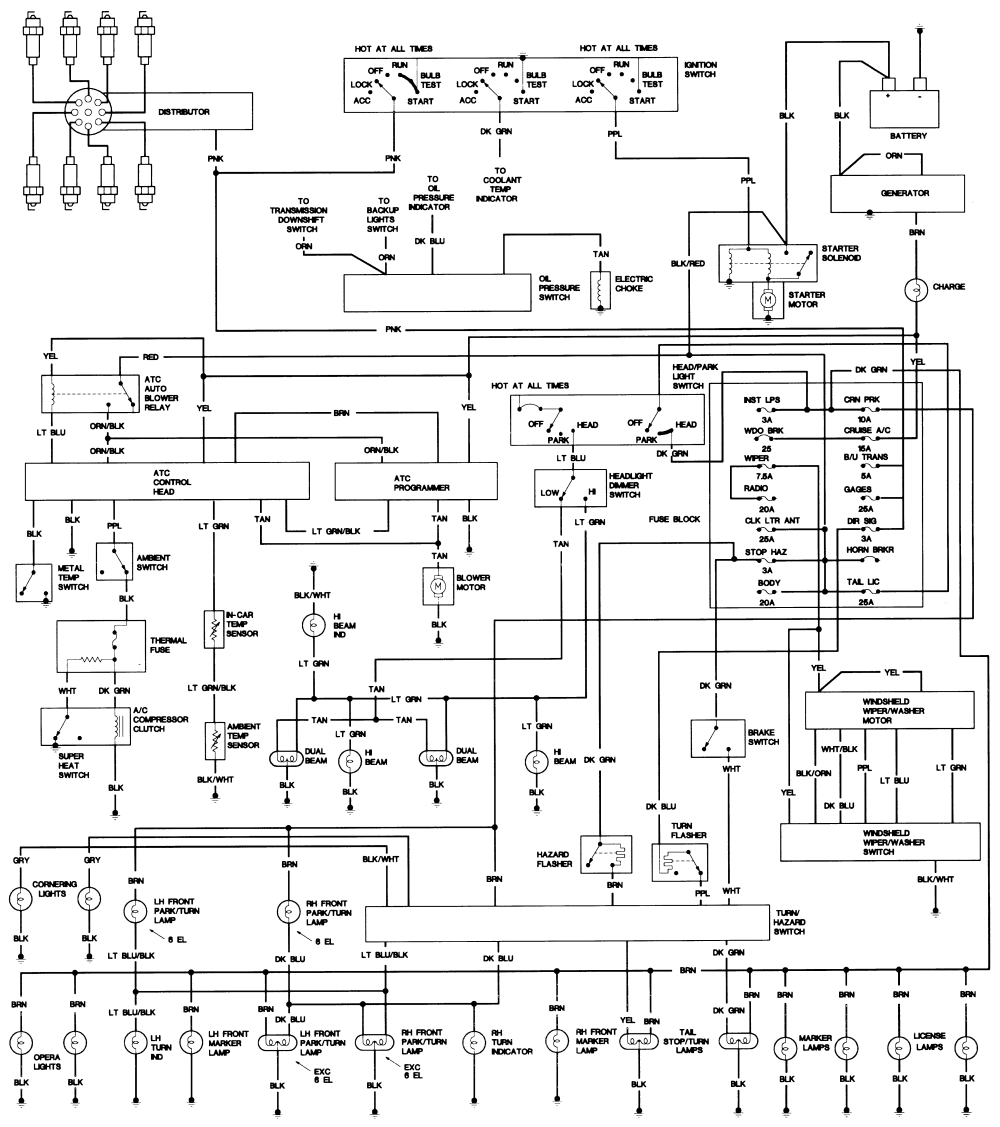

1976 Cadillac Deville

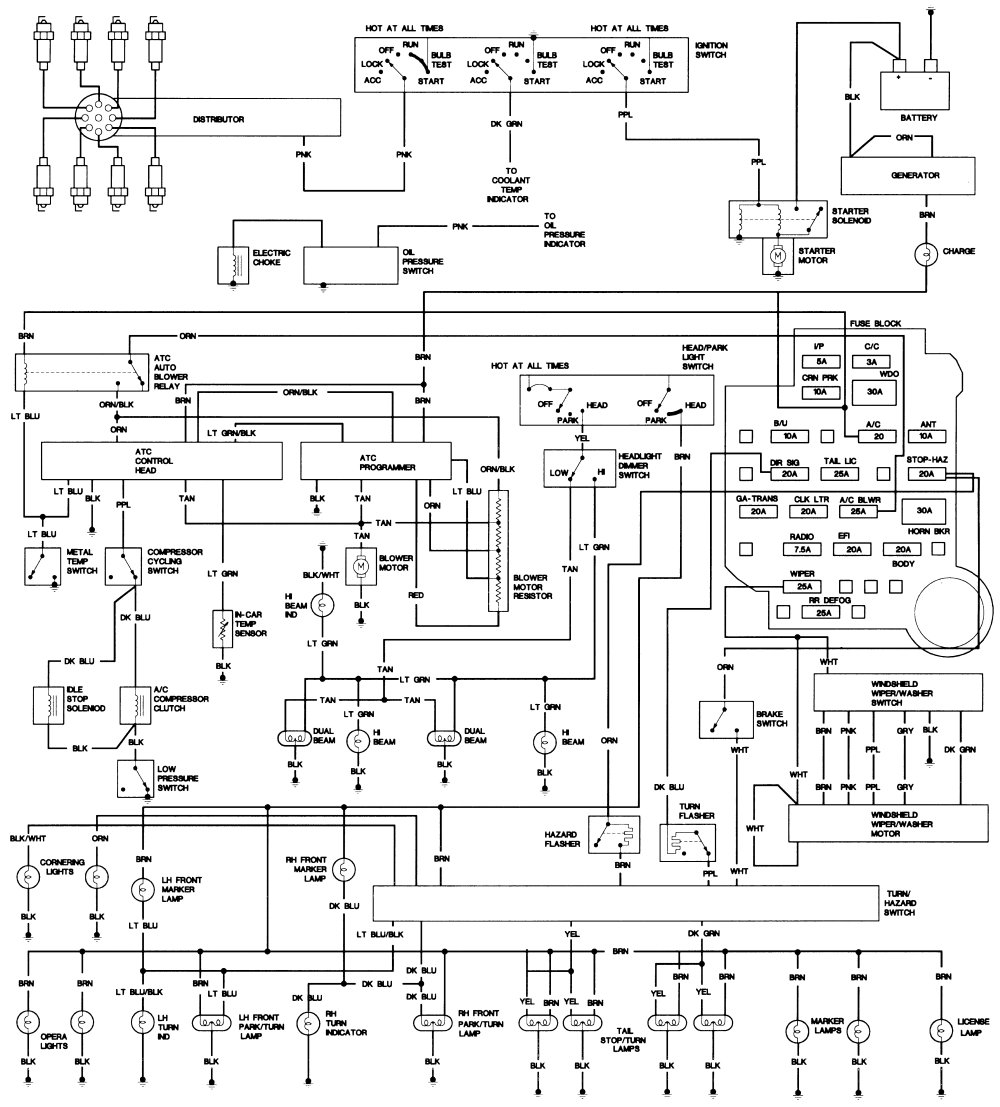

1977-79 DeVille

1977-79 Fleetwood

1980 DeVille

1980 DeVille-Diesel

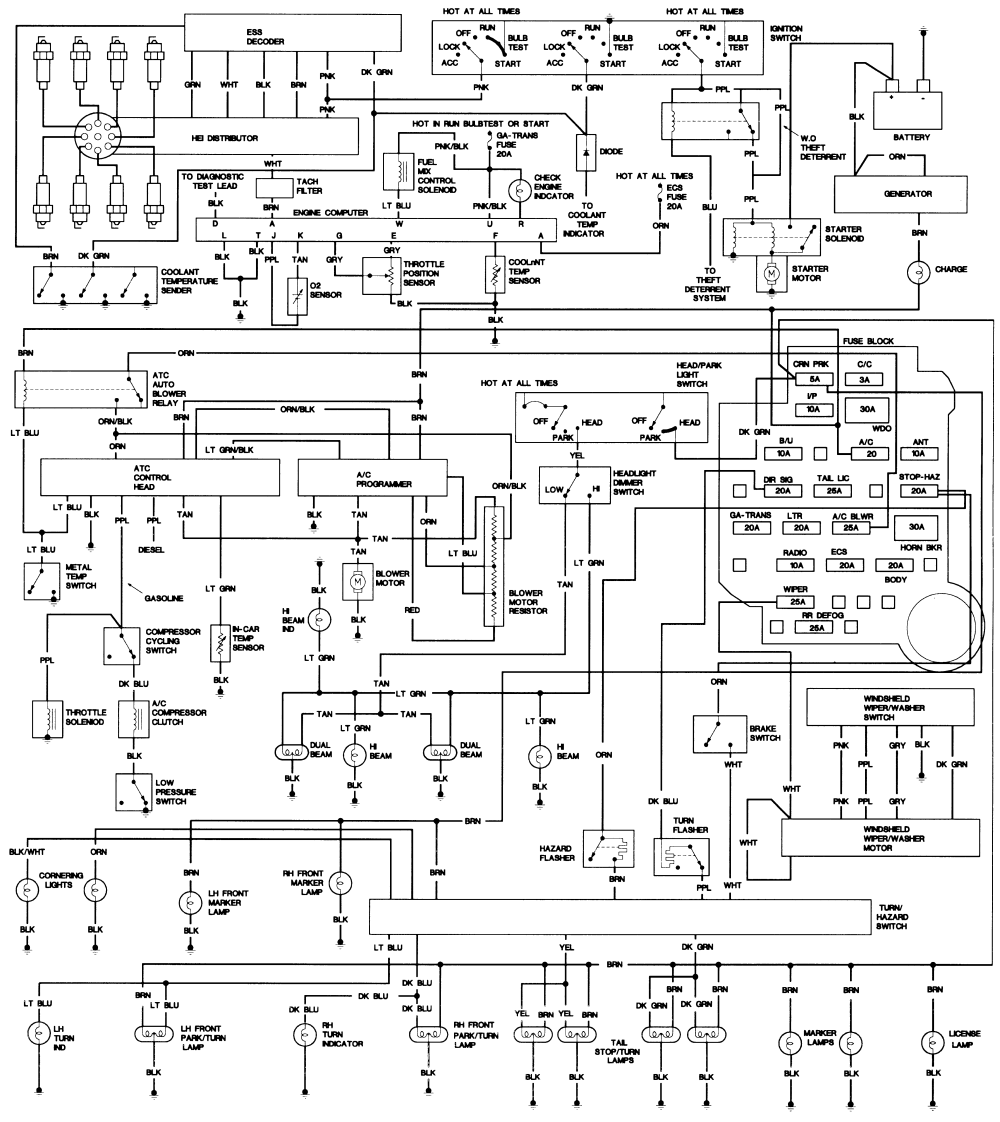

1980 Fleetwood

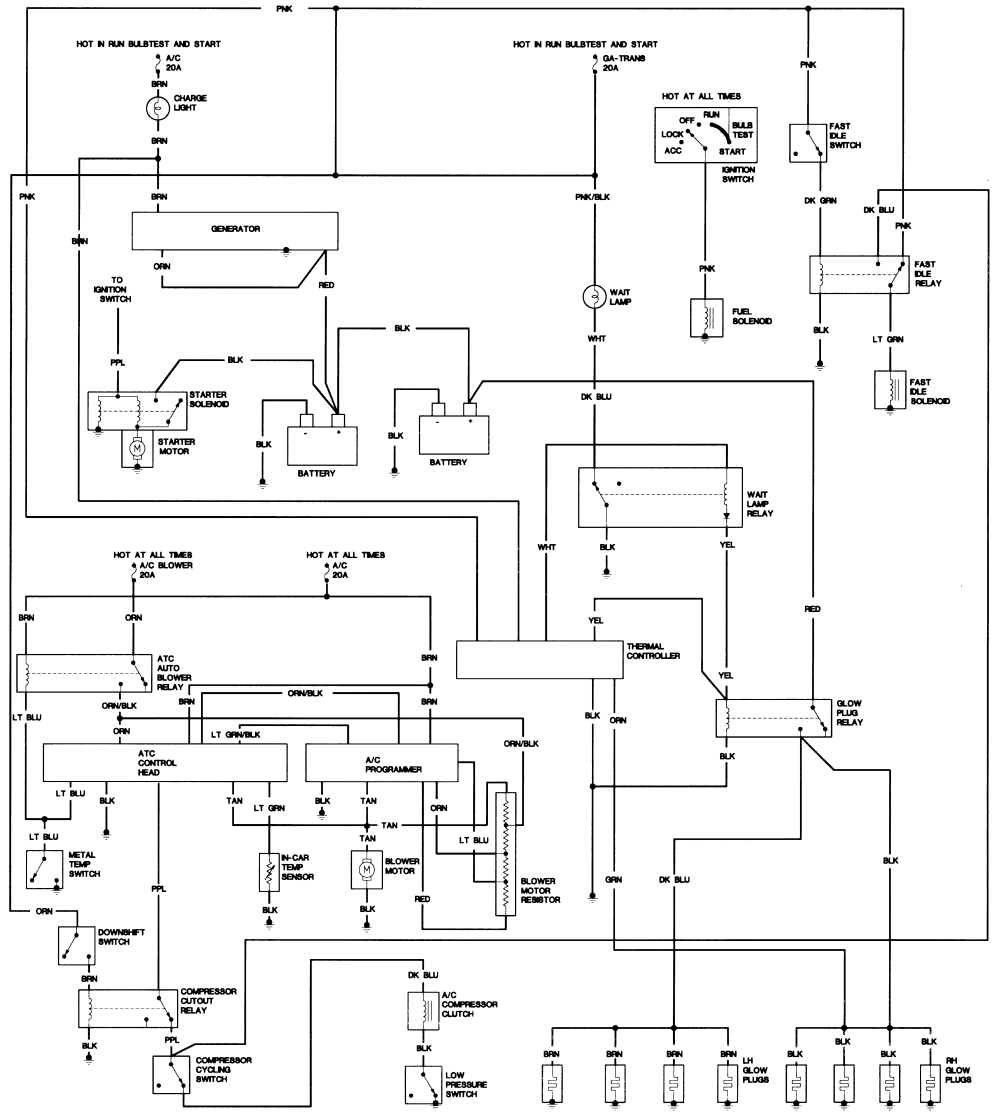

1980 Fleetwood-Diesel
