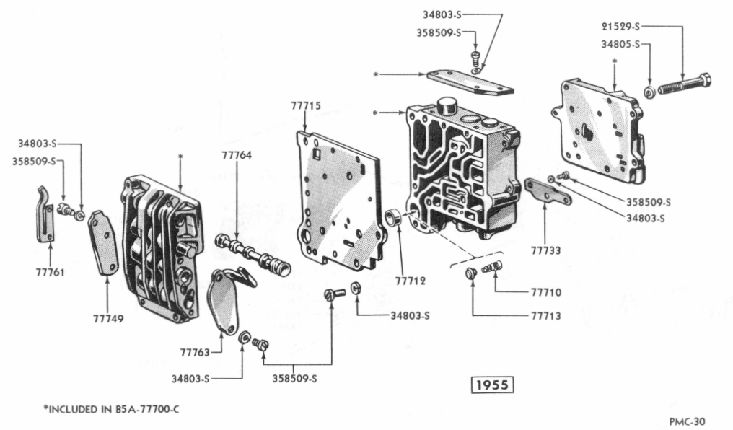

B5A-77700-C
Control assy (trans. main)- ®PMB-77700-C
353081-S
Ball (steel)-5/16" dia.
B5A-77709-C
Valve (trans. front pump check)-39/64T' max.
O. D. -®1P-77709-C
1P-77710-B
Spring (trans. rear pump check valve)-1/2" max.
O. D. x 1" o/all length-5-1/2" coils-conical
shaped
B5A-77712-A
Seat (transmission rear pump check valve)-
EPMB-77712-A
B5A-77713-B
Valve (trans. rear pump check) -TPMB-77713-B
B5A-77715-C
Plate (trans. control valve body separating)-
r'PMB-77715-C
B5A-77733-A
Plate (trans. control end body)-(DPMB-77733-A
357913-S
Bolt (hex-hd)-1/2"-20 x 1-5/8"-main control
assy to transmission case
34803-S7
Lockwasher-No. 10
34805-S8
Lockwasher-1/4"-control assy to trans. case
34805-S8
Lockwasher-1/4"-lower valve body to upper
valve body
356746-S
Screw (fillister head)-No. 10-24 x 3/4"
356747-S
Screw (fillister head)-No. 10-24 x 1"
