8L-77631
Screw and washer assy (fillister head)-No. 10-24
x 3/4"-inner valve body rear cover

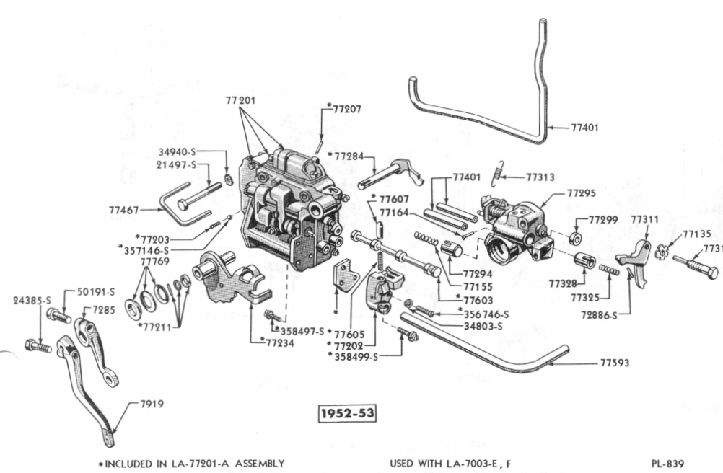

TRANSMISSION OIL CONTROL VALVE AND RELATED PARTS
Basic numbers only shown on illustration. Order by Part Numbers shown in list of parts.
8L-77632
Screw and washer assy (fillister head)-No. 10-24
x 5/8"-detent retainer to outer valve body
8L-77632
Screw and washer assy (fillister head)-No. 10-24
x 5/8"-governor bushing retainer to body
8L-77633
Screw and washer assy (fillister head)-No. 10-24
x 7/8"-outer valve body to inner valve body
MC-77651-A
Shield assy (trans. extension oil seal dirt)
PMC-77654-A
Baffle (transmission extension oil)
