1L-77591-A
Cone (transmission reverse clutch stationary)-
6-13/16" O. D. x 29/32" wide
1L-77592-A
Spring (transmission reverse clutch release)-
3-7/8" O. D. x 3-1/8" I. D.
LA-77592-A
Spring (transmission reverse clutch release)
1L-77593-A
Tube (transmission reverse clutch oil)-3/8" O. D.
x 6-7/16" long-"L" shaped
1L-77594-A
Key (trans. reverse clutch stationary cone)-
35/64" x 3/8" x 1/4"
1L-77595-A
Spring (trans. reverse clutch piston release)-
15/32" O. D. x 1-11/32" free length
LA-77595-A
Spring (trans. front servo retracting)-replaced
by LA-77424-B
1L-77596-A
Snap ring (trans. reverse clutch piston spring
retainer)-3-1/4" O. D. x 2-7/8" I. D. x 1/16"
thick
1L-77598-A
Retainer (trans. reverse clutch piston spring)-
4-1/4" O. D. x 3-5/32" I. D. x 5/64" thick

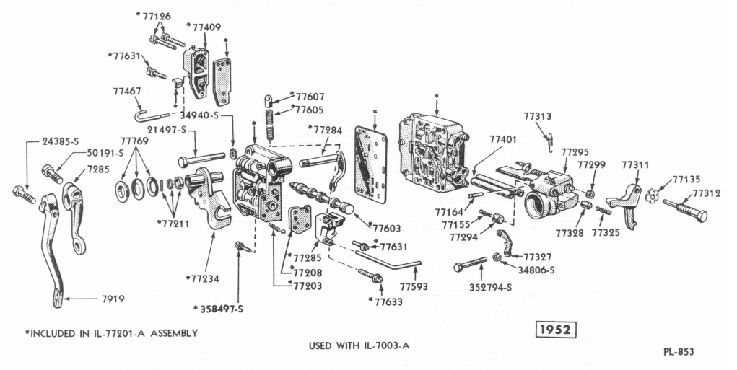

1L-77603-A
Valve (trans. manual control)-5-13/64" o/all
length

LA-77603-A
Valve (trans. manual control)-4-5/64" o/all
length
1L-77605-A
Spring (trans. manual valve detent)-13/64" 0. D.
x 1-21/64" free length
1L-77607-A
Plunger (trans. manual valve detent)-5/16" O. D.
x 49/64" long
LA-77626-A
Indicator assy (trans. oil level)-approx. 26-5/8"
long-located under hood compt. at right front
of dash
MC-77626-A
Indicator assy (transmission oil level)
8L-77631
Screw and washer assy (fillister head)-No. 10-24
x 3/4"-outer valve body to inner valve body
