cylinder block
EAA 6590-A
Washer (valve rocker arm shaft)-1-1/4" O. D. x
51/64" I. D. x 1/16" thick
LA, LE
52-55
EAA 6598-A
Washer (valve rocker arm shaft spring)
LA LE
52-55
72035-57-8
Pin (cotter)-1/8" x 1"
LA, LE
52-55
Oil Pump
EBU 6600-A
N' Pump assembly (o 1)-serviced in HCK-6600-A
LA
52-54
ECG 6600-A
N` Pump assembly (oil)-serviced in HFK-6600-A
LE
55
24466-S7
Bolt (hex-hd)-5/16"-18 x 1-1/2"
-oil pump to cylinder block
LA, LE
52-55
'
34826-S7
Lockwasher-5/16" -oil pump
to
2
LA, LE
52-55
42848-S8
Screw & L/W (hex-hd)-5/16-18
x 1-1/8"-oil pump to cyl.
block
LA, LE
52-55
U
HACK 6600-C
Kit (oil pump replacement)-consists of the following
LA
52-54
(1) EBU-6600-A Pump assy
(1) EAD-6670-A Spring-remove EBU-6670-A
from EBU-6600-A and
replace with EAD-6670-A
for Lincoln
HFK 6600-A
Kit (oil pump replacement)-consists of the following.
LE
55
(1) ECG-6600-A Pump assy
(1) EAD-6670-A Spring-remove ECG-6670-A
from ECG-6600-A and
replace with EAD-6670-A
for Lincoln
HACK 6600-A
Kit (oil pump gasket)-consists of the following
LA
52-54
(1) EAD-6619-A Gasket (1) EAD-6648-B Gasket
(1) EAD-6659-A Gasket (1) EAD-6668-B Ferrule
(1) 8EL-6669 Gasket

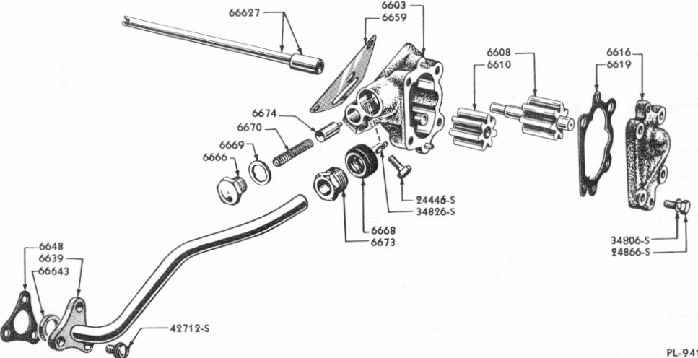

OIL PUMP
Basic numbers only shown on illustration. Order by Part Numbers shown in list of parts.
