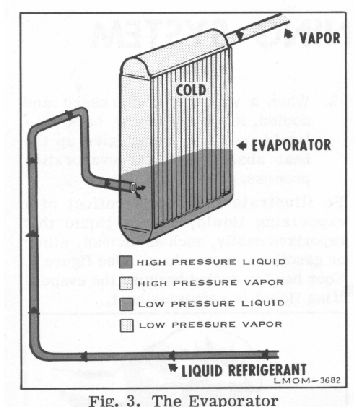

Liquids vaporize more rapidly under a low
pressure. To follow this principle in a
refrigeration system, it is necessary to reduce
the pressure in the evaporator to less than the
liquid pressure in the supply line. This is
accomplished by placing a restricting device,
called an expansion valve, in the liquid line at
the evaporator.
The amount of restriction in the expansion
valve is varied automatically by a temperature
control tube.
If the temperature at the evaporator outlet
starts to rise, the substance in the temperature
tube expands. This places a pressure on a
diaphragm in the expansion valve which in turn
moves a needle away from its seat. This
action reduces the restriction and thus permits
more liquid refrigerant to flow into the
evaporator to increase the refrigerating action.
THE COMPRESSOR AND
CONDENSER
In order to maintain a flow of liquid refrigerant
to the evaporator, it is necessary to:
1. Pump the vapor from the evaporator 2.
Compress the vapor
3. Condense the vapor to a liquid
4. Return the liquid refrigerant to the
evaporator. See figure 4.
If the temperature at the evaporator outlet falls
below a predetermined value, the substance in
the temperature tube contracts. This reduces
the pressure

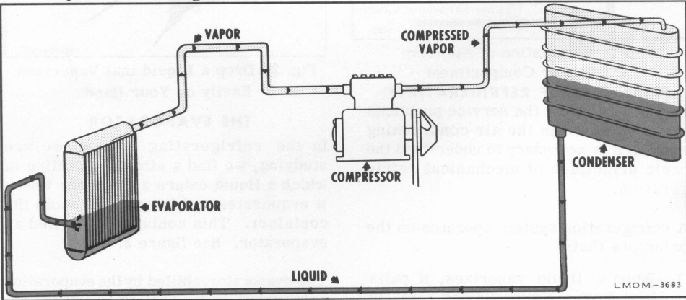

Fig. 4. The Refrigerant Cycle
THE EXPANSION VALVE
